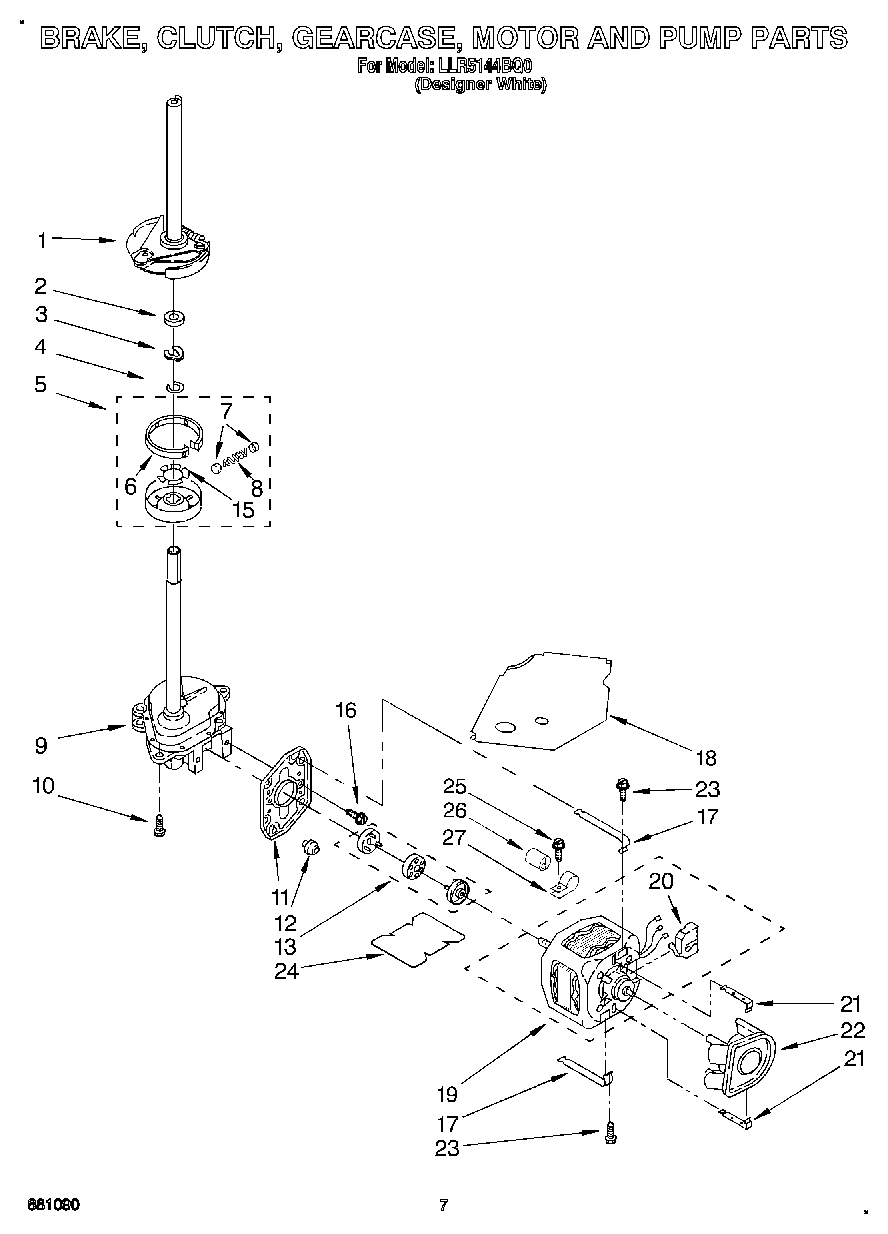

LLR5144BW0 05 – BRAKE, CLUTCH, MOTOR AND PUMP
Products
Position
Product
1
W10820043 Whirlpool Washer Drive and Brake Basket Assembly
2
WP63292 Whirlpool Washer
3
WPW10080230 Whirlpool Ring
4
285353 Whirlpool Ring
5
285785 Whirlpool Washer Direct Drive Clutch
7
WP62646 Whirlpool Cap
8
285790 Whirlpool Washer Clutch Band and Lining Kit
9
3360629 Whirlpool Washer Gearcase Transmission
11
WP62611 Whirlpool Plate
12
WP62691 Whirlpool Grommet
13
285753A Whirlpool Washer Direct Drive Motor Coupling
15
Clip, Anti-Rattle
16
WP3400516 Whirlpool Screw
17
WPW10086010 Whirlpool Motor Retainer Clip
18
W10838408 Whirlpool Motor Shield
19
WP661600 Whirlpool Drive Motor
20
Switch, Main Drive Motor
21
WP8546127 Whirlpool Retainer Clip
22
WP3363394 Whirlpool Washer Drain Pump
23
WP273556 Whirlpool Screw
24
WP3946532 Whirlpool Shield
25
WP3390631 Whirlpool Screw
26
CAPACITOR
27
357030 Whirlpool Clamp
←
