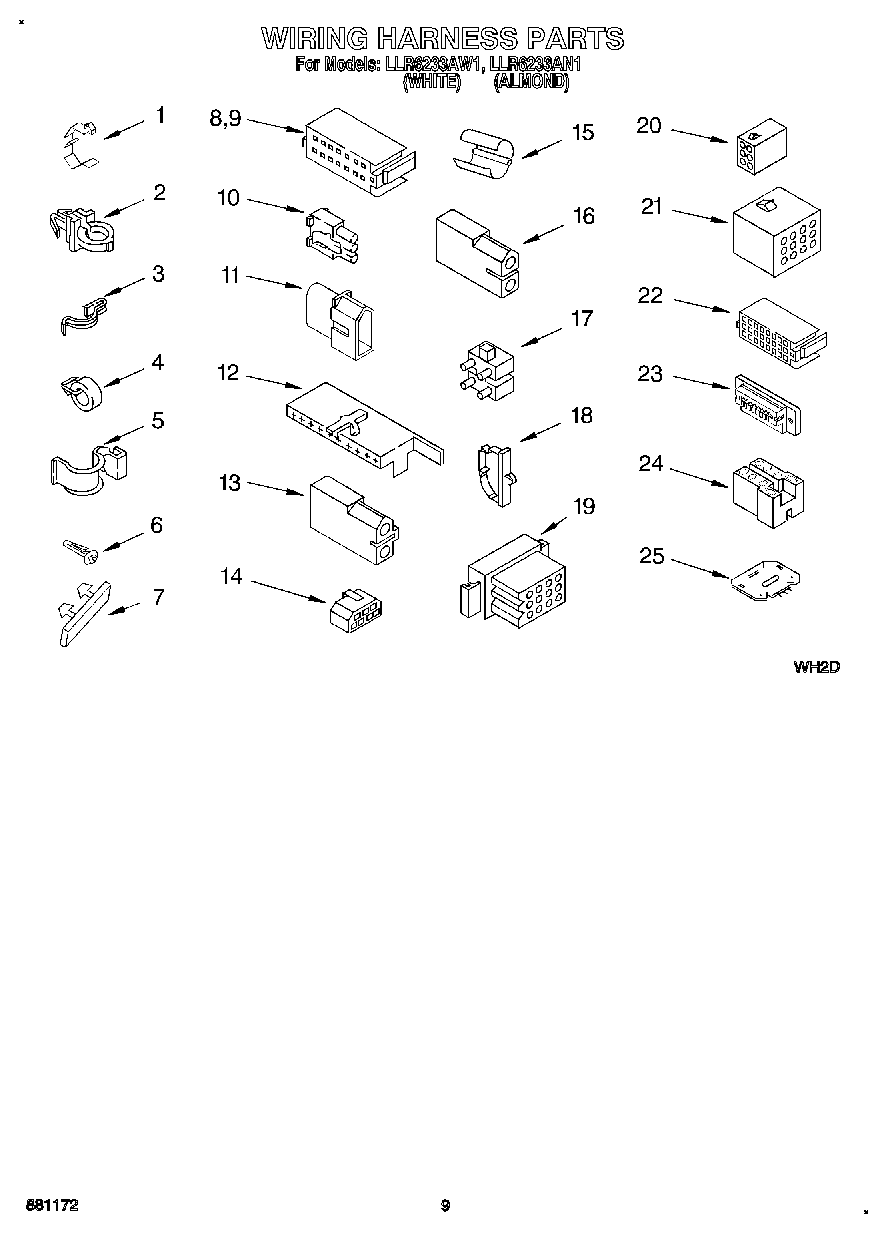

LLR6233AN1 07 – WIRING HARNESS

Products

Position	Product
1	Clip, Harness
2	Clip, Harness
3	8528351 Whirlpool Clip
4	8559320 Whirlpool Clip
5	WP90016 Whirlpool Clip
6	Clip, Harness
7	WP389379 Whirlpool Retainer
8	Timer, Block Disconnect (White)
9	W10876590 Whirlpool Connector
10	WP62889 Whirlpool Washer Lid Switch Terminal Receptacle
11	353424 Whirlpool Connector
12	WP62505 Whirlpool Connector
13	Block, Disconnect (Motor 3 Speed) (Use Term. 94613 Or 94614)
14	Block, Disconnect
15	Protector, Harness
16	Receptacle, Latching (2-Way) (Uses Terminal 94614)
17	Plug, Terminal (4-Way) (Power Cord) (Use M3 Screws)
18	Clip, Harness
19	Block, Disconnect (12-Way) (Timer) (Use Term. 94613)
20	Receptacle, (6-Way) (Use Term. 94613)
21	Plug, Terminal (12-Way) (Use Term. 94613 Or 94614)
22	Timer, Block Disconnect (Black) (Amp) (Use Term. 3369365)
23	Connector, Etc
24	Connector, Relay (Use Term. 308569)
25	E.T.C. Control
