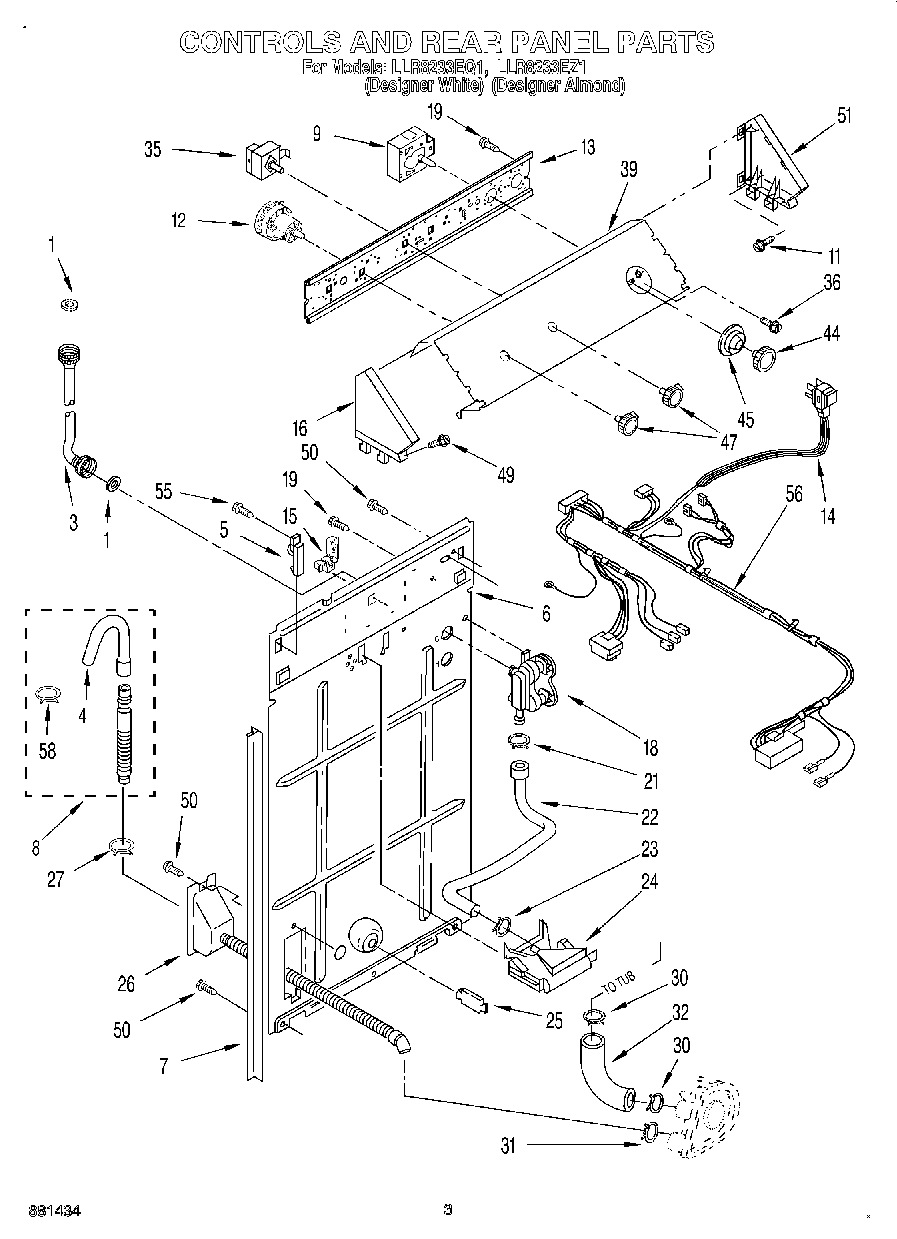

LLR8233EZ1 02 – CONTROLS AND REAR PANEL

LLR8233EZ1 02 – CONTROLS AND REAR PANEL

Written by

in

LLR8233EZ1 02 – CONTROLS AND REAR PANEL

Products

PositionProduct
1WP16123 Whirlpool Washer
3WP89503 Whirlpool Washer Fill Hose
4WP3357027 Whirlpool Nozzle Assembly
5Hinge, Console (2)
6WP3357978 Whirlpool Rear Panel
7WP62747 Whirlpool Pad
8285702 Whirlpool Extensions
8285666 Whirlpool Drain Hose 10'
8285664 Whirlpool Drain Hose
9WP3948852 Whirlpool Timer Assembly
11WP90767 Whirlpool Screw
12SWITCH-WL
13WP3948608 Whirlpool Bracket
14Cord, Power (Power Cord Only, Without Harness)
15Strain Relief, Power Cord
16Cap, End (L.H.) (Almond)
16Cap, End (L.H.)
18285805 Whirlpool Washer Water Inlet Valve
19WP3351614 Whirlpool Screw
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3347034 Whirlpool Vacuum Break
25WP8519200 Whirlpool Support Assembly
26WPW10358149 Whirlpool Hose
27WP356138 Whirlpool Hose Clamp
30WP371502 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
35WPW10168256 Whirlpool Temperature Switch
36W10915367 Whirlpool Screw Assembly
39Panel, Console (For Designer White Model)
39Panel, Console (For Designer Almond Model)
44W10807860 Whirlpool White Control Knob
44WP3957823 Whirlpool Knob
45WPL 3948588
45WP3957841 Whirlpool Dial
473957797 Whirlpool Knob
47WP3957796 Whirlpool Knob
49WP388326 Whirlpool Screw
50WP3390631 Whirlpool Screw
51Cap, End (R.H.) (Almond)
51Cap, End (R.H.)
55WP308685 Whirlpool Microwave Screw
56WPL 3950999
58WP3357331 Whirlpool Clamp
