LLR8233EZ1 10 – MISCELLANEOUS, LIT/OPTIONAL

LLR8233EZ1 10 – MISCELLANEOUS, LIT/OPTIONAL

Written by

in

LLR8233EZ1 10 – MISCELLANEOUS, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Golden Harvest (Uncut)
Energy Guide
Shipping Kit
WPL 89121
LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
WP285195 Whirlpool Sealer Assembly
Manual, (Washer) Do-It-Yourself
Sheet, Installation Instructions
Guide, Use and Care
Label, Wiring Diagram
Golden Harvest
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
350938 Whirlpool Spray Gun
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
Almond (Uncut)
285320 Whirlpool Washer Siphon Break Kit
Drain Protector (Not Included)
350572 Whirlpool Oil Transmission 15 Oz
63580 Whirlpool Washer Fabric Softener Dispenser

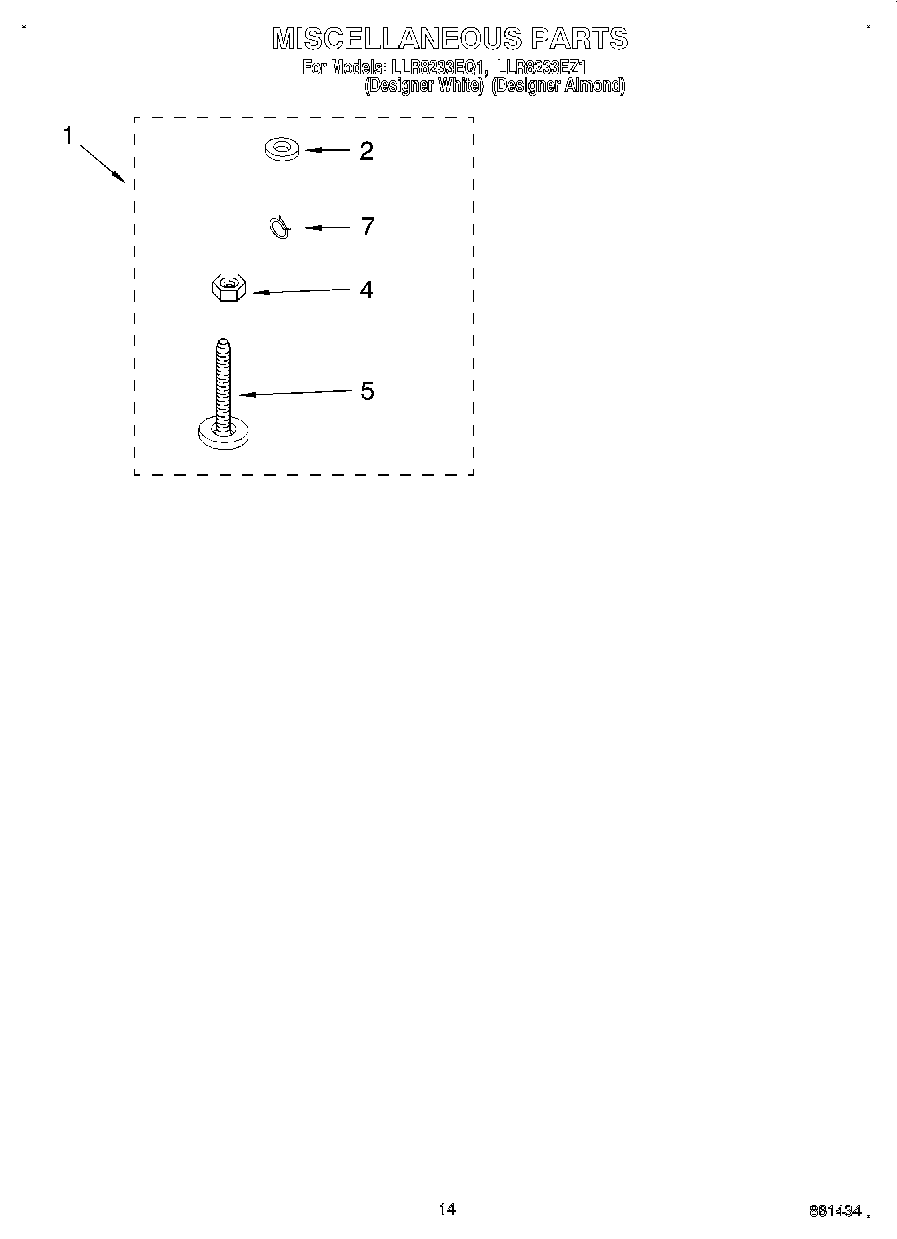

1Miscellaneous Parts Bag
2WP16123 Whirlpool Washer
4WP3359452 Whirlpool Nut
5WPW10001130 Whirlpool Leveling Leg
7WP356138 Whirlpool Hose Clamp
