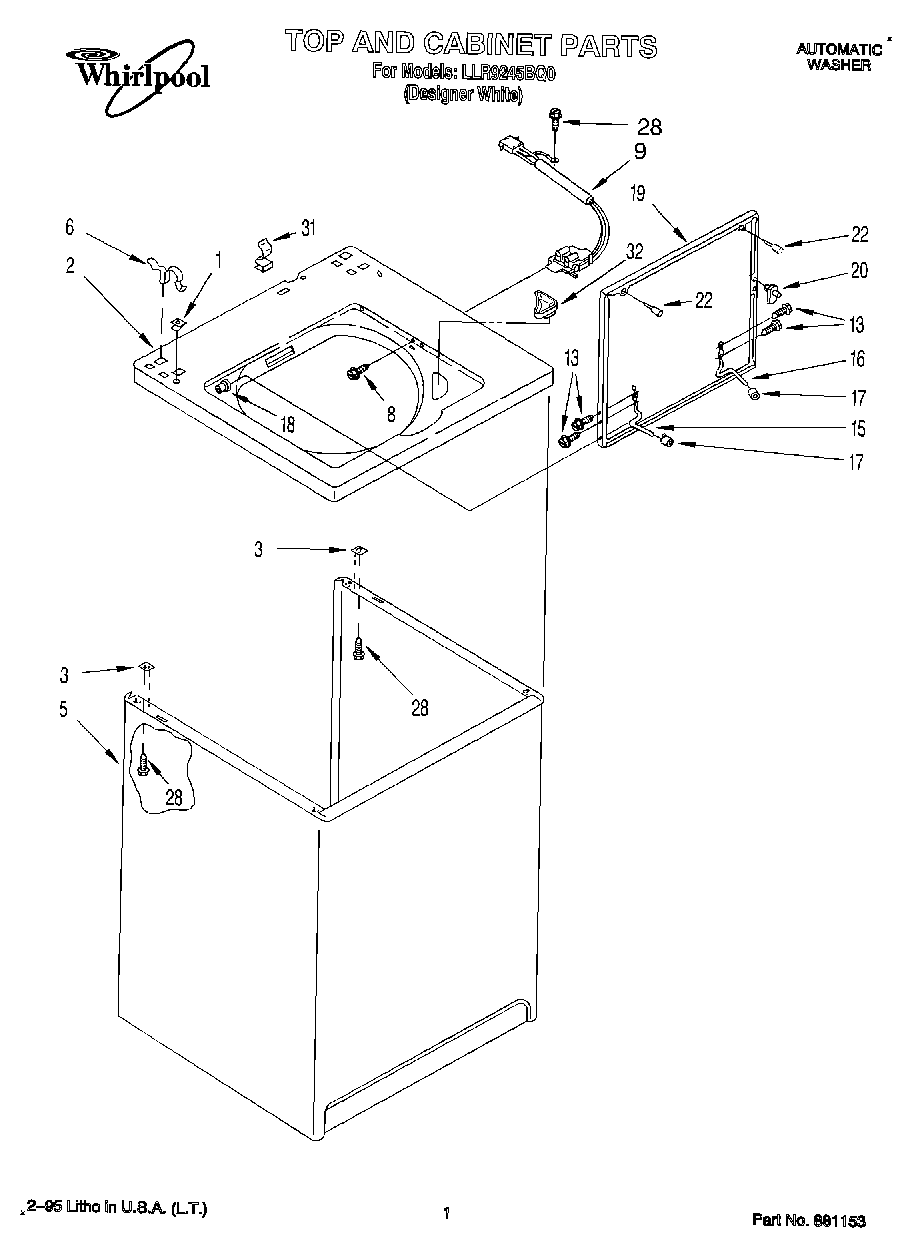

LLR9245BQ0 01 – TOP AND CABINET, LIT/OPTIONAL

Products

Position	Product
	Guide, Use and Care
	Golden Harvest
	Golden Harvest (Uncut)
	Shipping Kit
	WPL 89121
	WPL LIT3360057
	LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
	WP285195 Whirlpool Sealer Assembly
	Label, Wiring Diagram
	Manual, (Washer) Do-It-Yourself
	WPL LIT3361382
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	63580 Whirlpool Washer Fabric Softener Dispenser
	350572 Whirlpool Oil Transmission 15 Oz
	350956 Whirlpool Spray Assembly
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	WP72107 Whirlpool Touchup
	Almond (Uncut)
	350938 Whirlpool Spray Gun
	285320 Whirlpool Washer Siphon Break Kit
	Drain Protector (Not Included)
	350930 Whirlpool White Spray Paint
1	WP357213 Whirlpool Hinge Stopper
2	Top (For White & Desinger White Models)
3	WP62750 Whirlpool Spacer
5	63424 Whirlpool Cabinet Assembly
6	WP62780 Whirlpool Cabinet Clip
8	WP3356311 Whirlpool Screw
9	285671 Whirlpool Lid Switch Assembly
13	SCREW
15	WP54584 Whirlpool Hinge
16	WP54583 Whirlpool Hinge
17	Bumper, Lid Hinge
18	WP21258 Whirlpool Washer Lid Hinge Bearing
19	Lid (For White & Designer White Models)
20	WP358684 Whirlpool Strike Assembly
22	WP9724509 Whirlpool Bumper
28	SCREW
31	WP90016 Whirlpool Clip
32	WP3362952 Whirlpool Bezel
