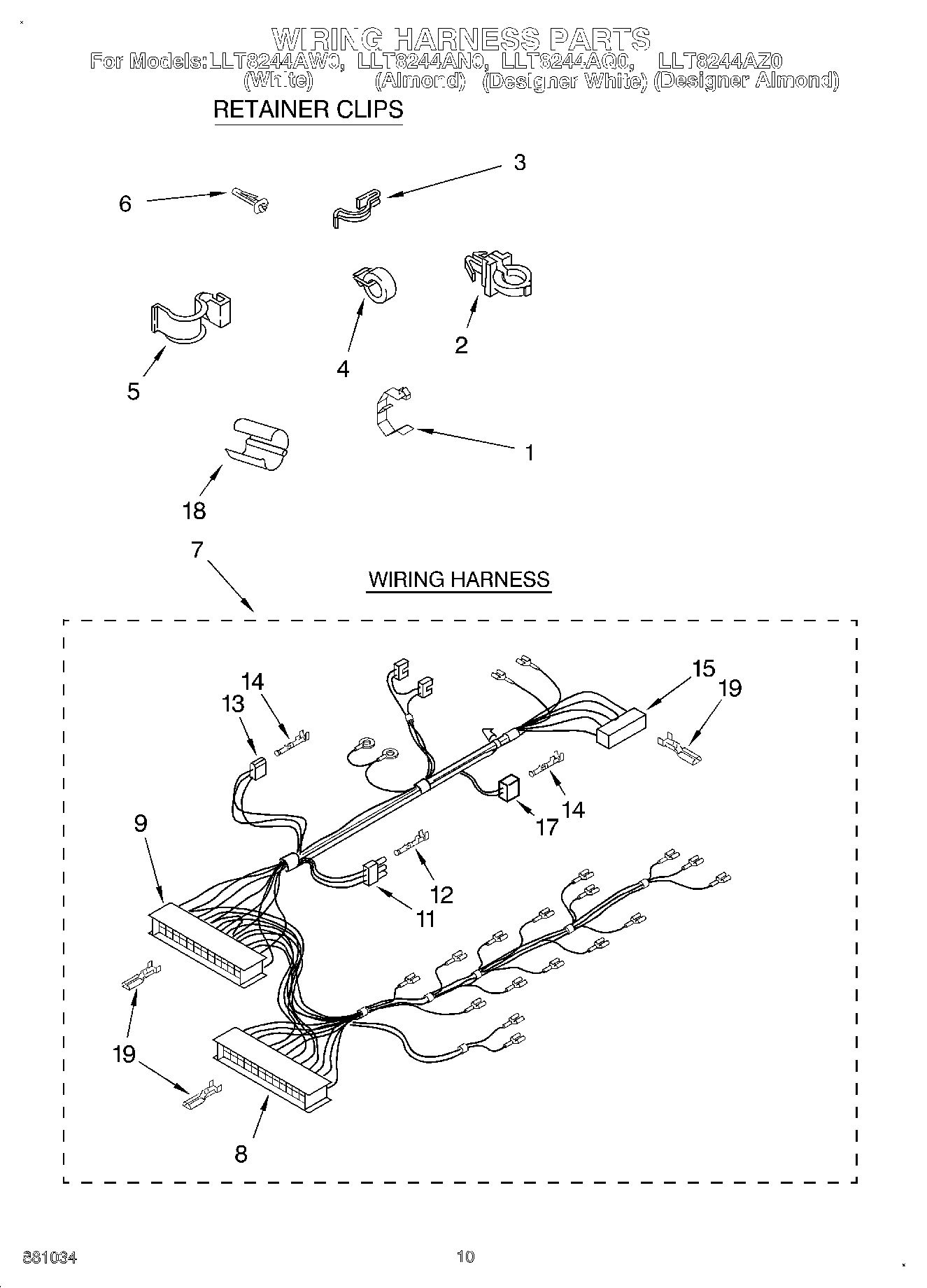

LLT8244AW0 08 – WIRING HARNESS

Products

Position	Product
1	Clip, Harness
2	Clip, Harness
3	8528351 Whirlpool Clip
4	8559320 Whirlpool Clip
5	WP90016 Whirlpool Clip
6	Clip, Harness
7	Wiring Harness
8	Timer, Block Disconnect (White)
9	W10876590 Whirlpool Connector
11	WP62889 Whirlpool Washer Lid Switch Terminal Receptacle
12	WP94614 Whirlpool Terminal
13	353424 Whirlpool Connector
14	WP596797 Whirlpool Terminal
15	WP62505 Whirlpool Connector
17	Block, Disconnect (Motor 3 Speed) (Use Term. 94613 Or 94614)
18	Protector, Harness
19	Terminal
