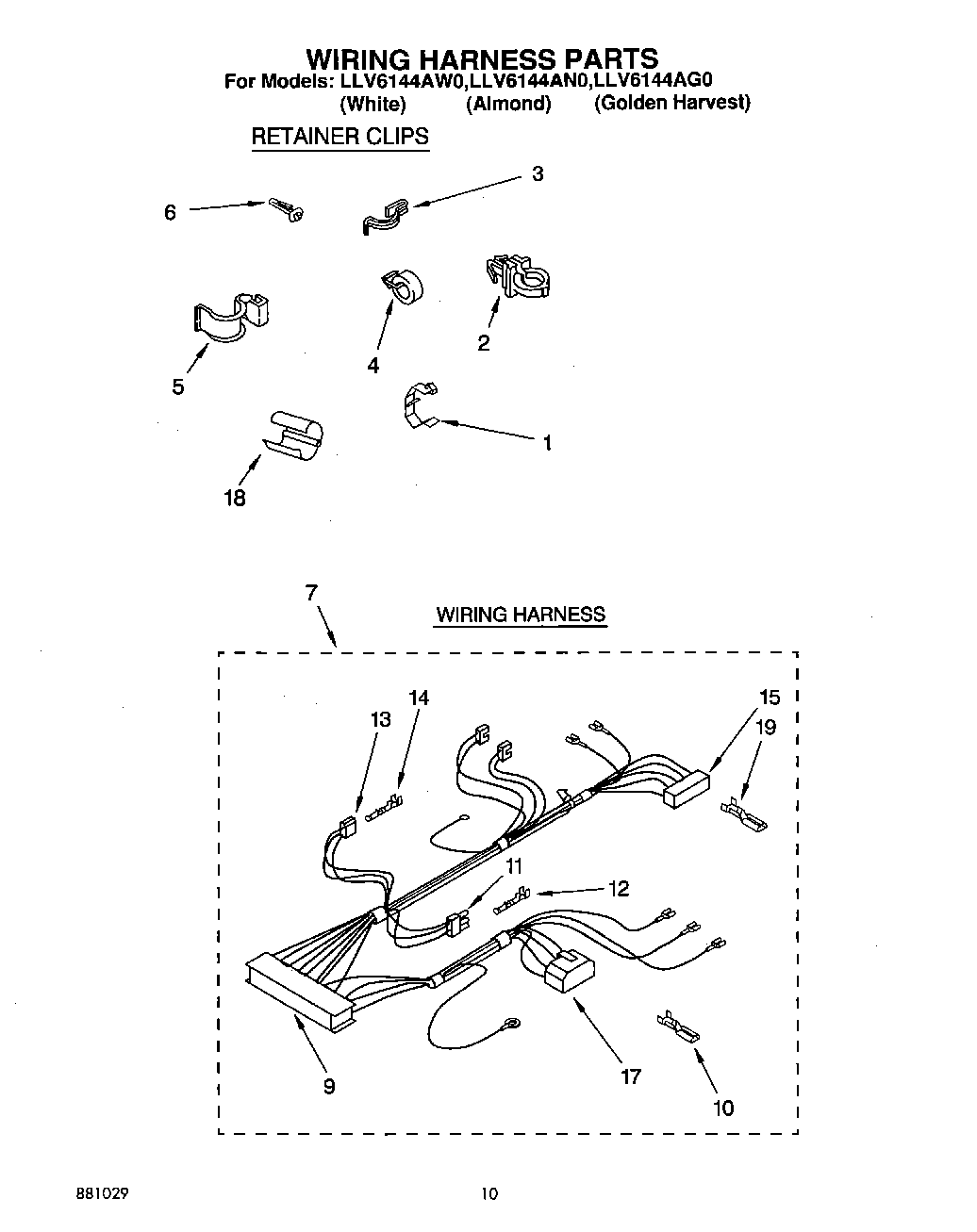

LLV6144AN0 08 – WIRING HARNESS

Products

Position	Product
1	Clip, Harness
2	Clip, Harness
3	8528351 Whirlpool Clip
4	8559320 Whirlpool Clip
5	WP90016 Whirlpool Clip
6	Clip, Harness
7	Harness, Wiring (For Detail See Wiring Harness Parts Page) Also See Clips.
9	Timer, Block Disconnect (Black) (Amp) (Use Term. 3369365)
10	Terminal, Female
11	WP62889 Whirlpool Washer Lid Switch Terminal Receptacle
12	WP94614 Whirlpool Terminal
13	353424 Whirlpool Connector
14	WP596797 Whirlpool Terminal
15	WP62505 Whirlpool Connector
17	Block, Disconnect
18	Protector, Harness
19	Terminal
