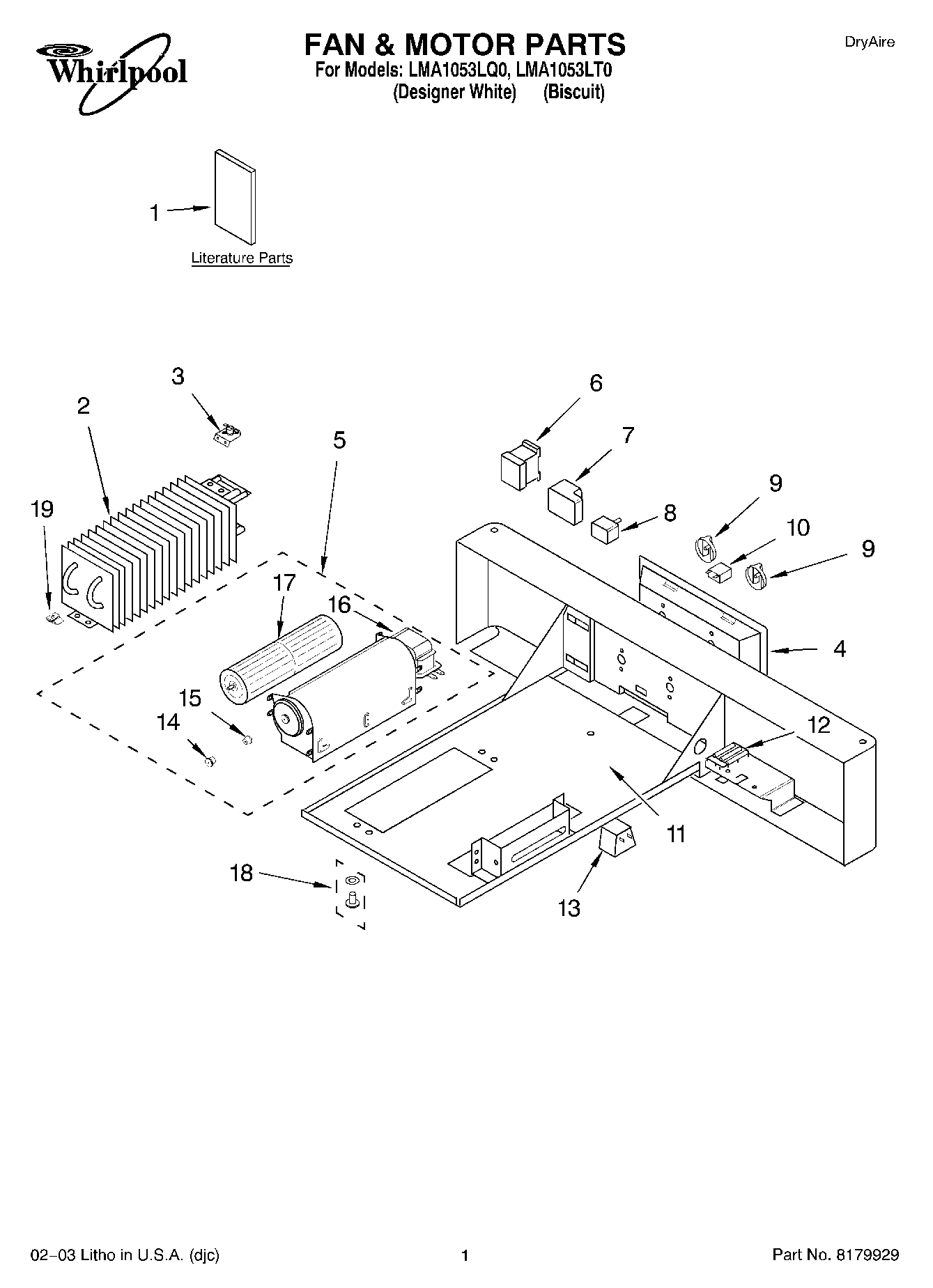

LMA1053LQ0 01 – FAN & MOTOR PARTS

Products

PositionProduct
1Literature Parts (Use & Care Guide)
1Literature Parts (Installation Instructions)
2Heating Element
3Thermal Cut-Off (Includes Bracket)
4Panel Control (Biscuit)
4Panel Control (White)
5Motor & Fan Assembly
6RELAY
7TIMER
8THERMOSTAT
9KNOB
10Switch, Push-To-Start (Includes Boot)
11Drawer, Only (NO Operational or Decorative Items Included) (White)
11Drawer, Only (NO Operational or Decorative Items Included) (Biscuit)
12Quick Connector, Complete
13Door Switch
14Bearing, Fan
15Drive Bushing
16Motor
17FAN
18Insulator (Includes Qty. 4 Washers & Nuts)
19Clips, Not Serviced (Available with Illus. 18)
