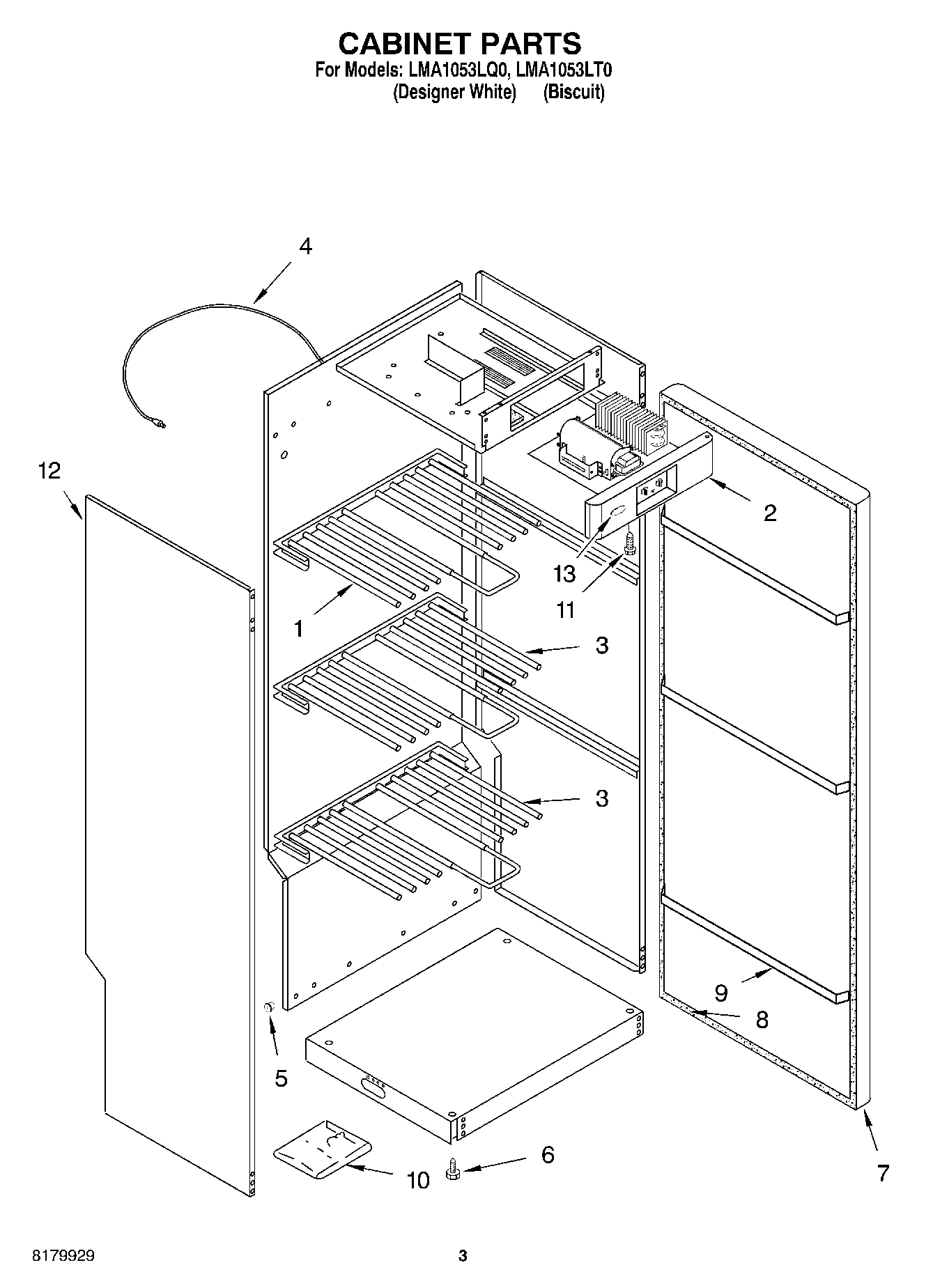

LMA1053LT0 02 – CABINET PARTS – OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
1Hanger, Fixed Complete (White)
1Hanger, Fixed Complete (Biscuit)
2Drawer, Complete (Includes All Operating and Decorative Items) (White)
2Drawer, Complete (Includes All Operating and Decorative Items) (Biscuit)
3Hanger, Hinged Complete (White)
3Hanger, Hinged Complete (Biscuit)
4Power Cord
5Rubber, Endcaps (Stoppers Qty. 6)
6Foot, Adjustable
7Door, Complete (Includes Illus. 8 & 9) (White)
7Door, Complete (Includes Illus. 8 & 9) (Biscuit)
8Door Gasket Complete
9Door Rack (White)
9Door Rack (Biscuit)
10Hinge, Complete
11Screw, Drawer
12Cabinet (Not Serviced)
13CableSet (Includes All Connecting Wires)
13Kit, Door Slider
13Kit, Wall Mount
13Badge, Assembly
13ACCESSORY PARTS
