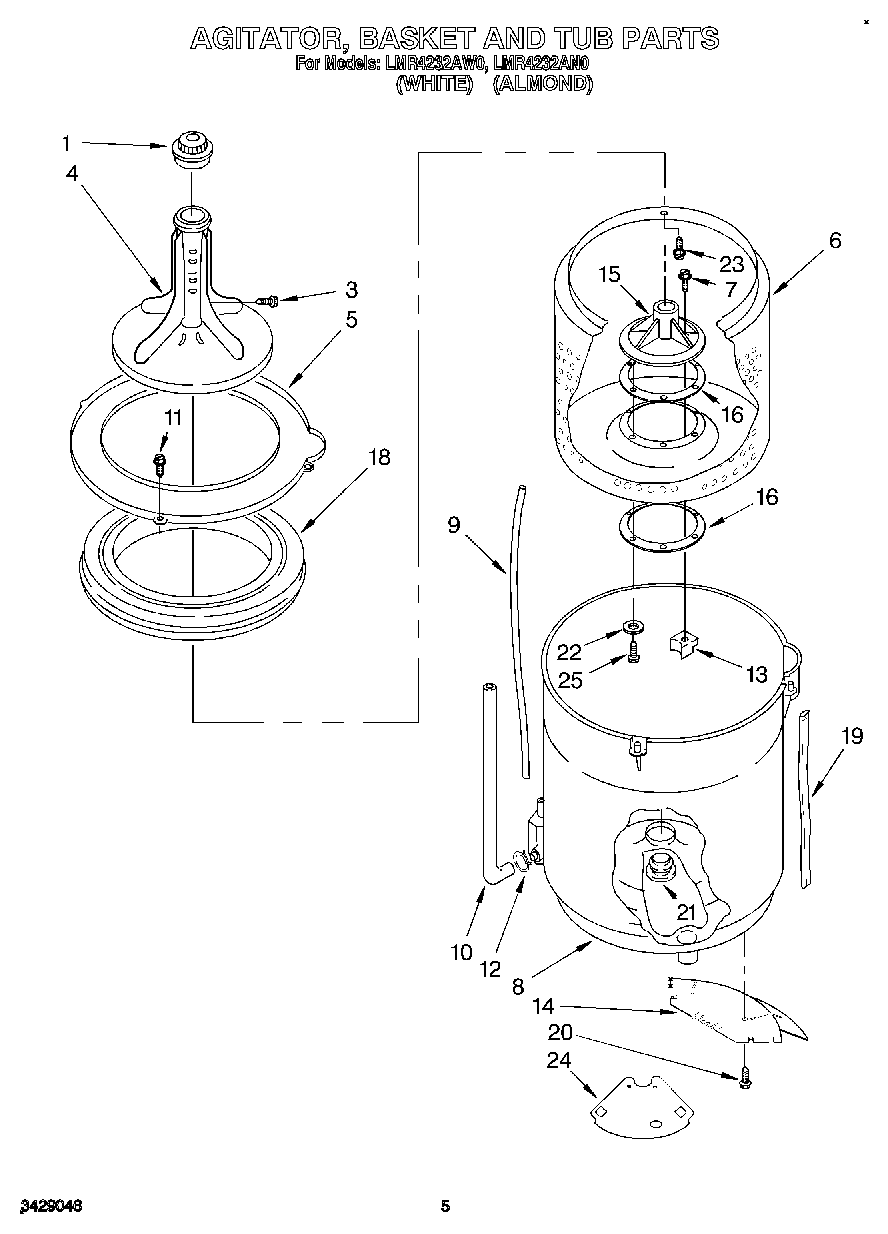

LMR4232AN0 03 – AGITATOR, BASKET AND TUB

Products

Position	Product
1	WP3355758 Whirlpool Agitator Cap
4	Agitator
5	Tub Ring
6	Basket
7	Screw
8	Tub
9	WP353244 Whirlpool Hose
10	Hose, Bleach
11	Screw, Balance Ring (4)
12	WP596669 Whirlpool Hose Clamp
13	Saddle Block
14	Shield, Tub/Motor
15	Hub, Drive
16	Gasket, Hub (2)
18	Balance Ring
19	Hose, Tub Overflow
20	WP3400872 Whirlpool Screw
21	WP3968381 Whirlpool Tub Seal
22	Washer
24	Shield, Tub/Solenoid
25	Screw, 1/4 (6)
