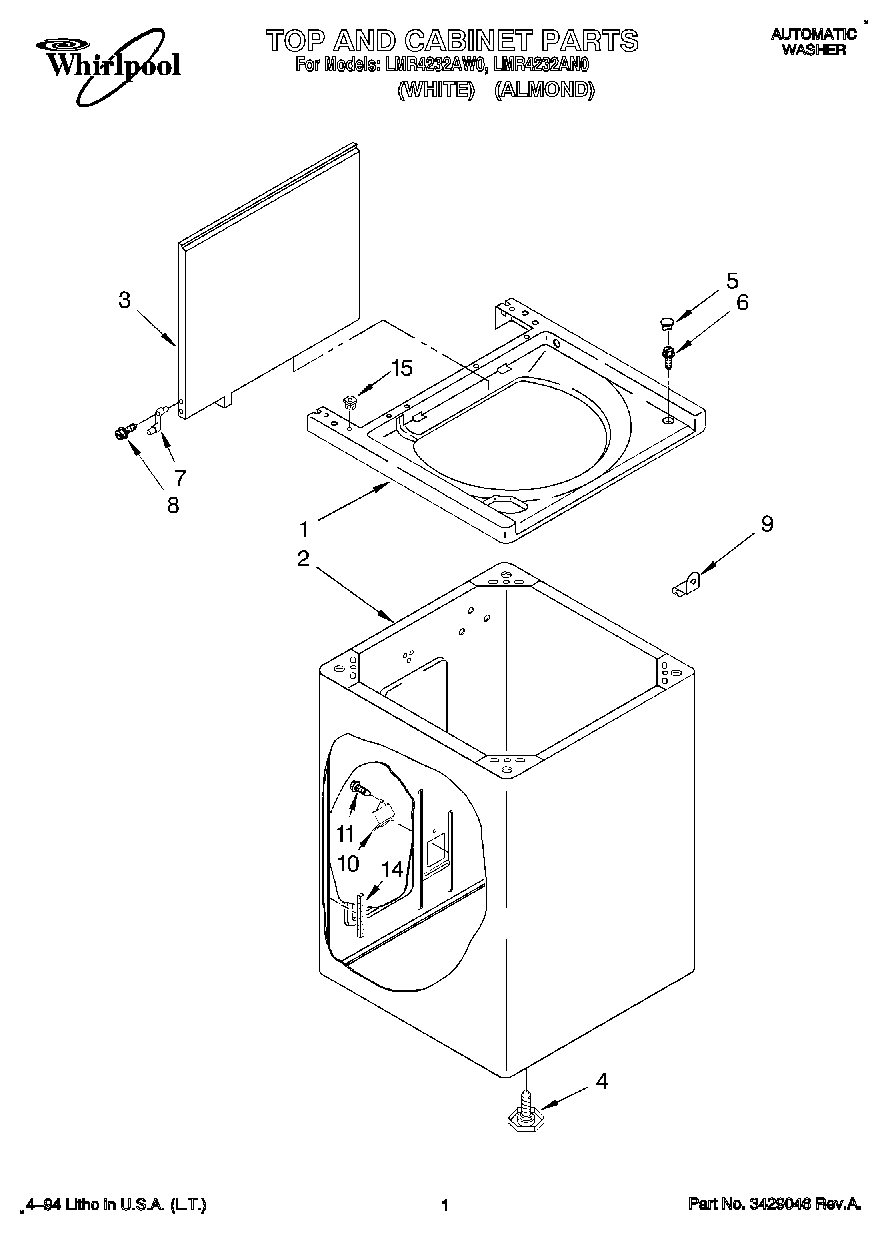

LMR4232AW0 01 – TOP AND CABINET, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Label, Wiring Diagram
	Energy Guide
	List, Repair Parts
	Guide, Use and Care
	Sheet, Installation Instructions
	WP384496 Whirlpool Hose Coupling
	Almond (Uncut)
	Leveler (Thinner)
	WP72107 Whirlpool Touchup
	350938 Whirlpool Spray Gun
	799344 Whirlpool Refrigerator Paint
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
1	Top (White)
1	Top (Almond)
2	Cabinet (White)
2	Cabinet (Almond)
3	Lid (White)
3	Lid (Almond)
4	Foot (4)
5	Bumper, Lid (Almond)
5	Bumper, Lid (White)
6	Screw, Top To Cabinet (2)
7	Hinge, Lid (2)
8	Screw, Lid Hinge Mounting (2)
9	Clip, Cabinet To Top
10	Cover, Pump
11	Screw, Balance Ring (4)
14	Protector, Edge
15	WP357213 Whirlpool Hinge Stopper
