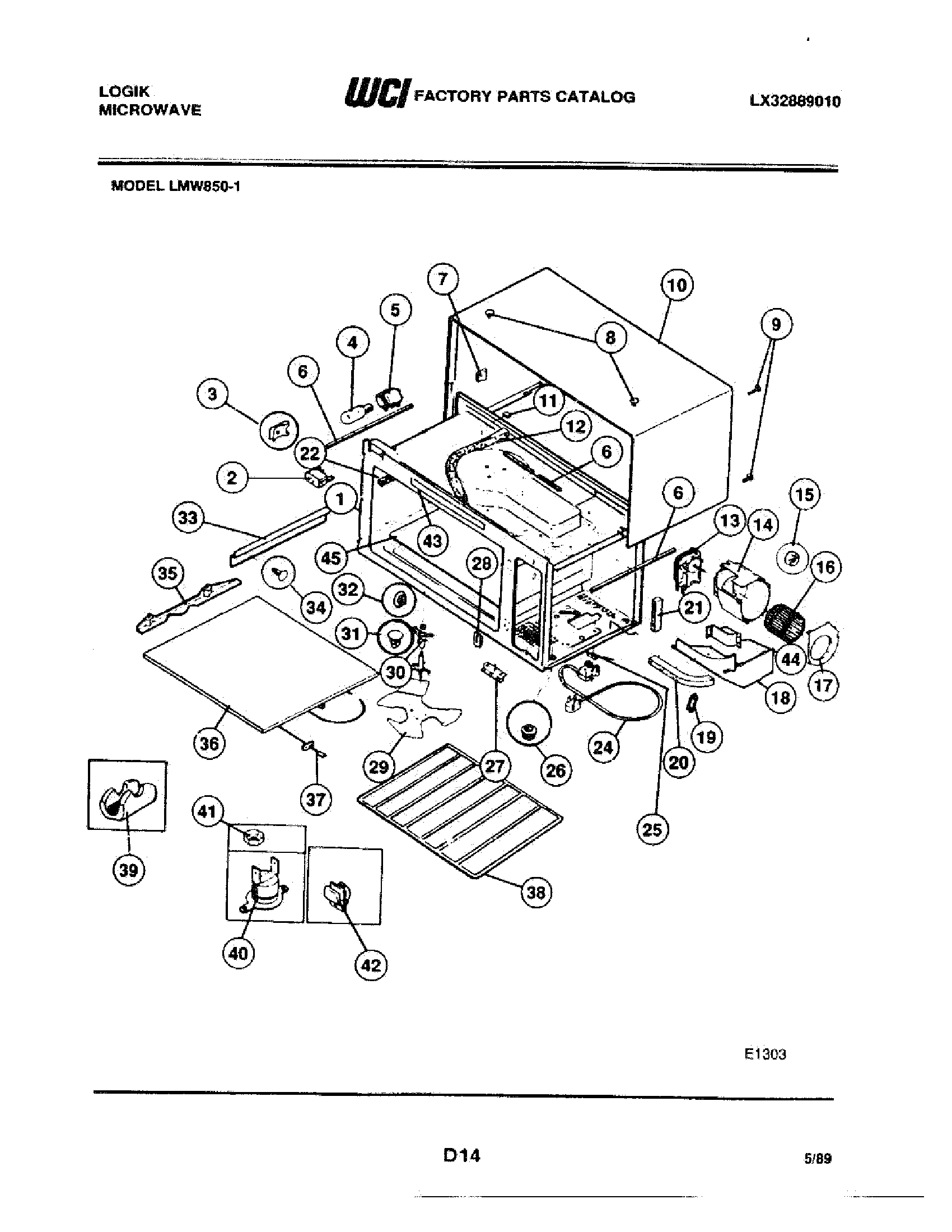

LMW850-1 04 – CABINET

LMW850-1 04 – CABINET

Written by

in

LMW850-1 04 – CABINET

Products

PositionProduct
5303321319 Frigidaire Refrigerator White Touch Up Paint
HARNESS ELEMENT (NON-ILLUSTRATED)
1WIRING HARNESSES ARE NOT AVAILABLE FOR THIS MODEL
2SWITCH-MONITOR (WHITE)
33203010 Frigidaire Clip
4BULB
5WCI 3014074
6SEAL (1/4 X 1/4)
7CLIP – WRAPPER
8WCI 3091555
9SCREW – WRAPPER (10)
10WCI 08037809
11WCI 08037724
12DUCT-AIR FOAM
14WCI 3012868
15WCI 3013270
16WCI 3091501
17COVER HOUSING
18WCI 3018201
19CLIP
20SEAL (1/2 X 3/4)
21WCI 3091131
22WCI 3018200
24WCI 08037629
25FUSE
26WCI 3014907
27WCI 3011555
28WCI 3200551
29WCI 3201598
30KIT – STIRRER SUPT
31WCI 3013628
32WCI 3201365
33BAFFLE – AIR W/ CLIPS
34CLIP – BAFFLE
35CHANNEL – GLASS SUPPORT LH
35CHANNEL – GLASS SUPPORT RH
36WCI 3015229
37WCI 3015216
38WCI 3018845
39WCI 3018581
40WCI 3202458
41WCI 3018205
42WCI 3014221
43LABEL COOK GUIDE
44DUCT-AIR SCOOP (NON-ILLUSTRATED)
45GLASS – TRAY
