LMXS30796S 0

LMXS30796S 0

Written by

in

LMXS30796S 0

Products

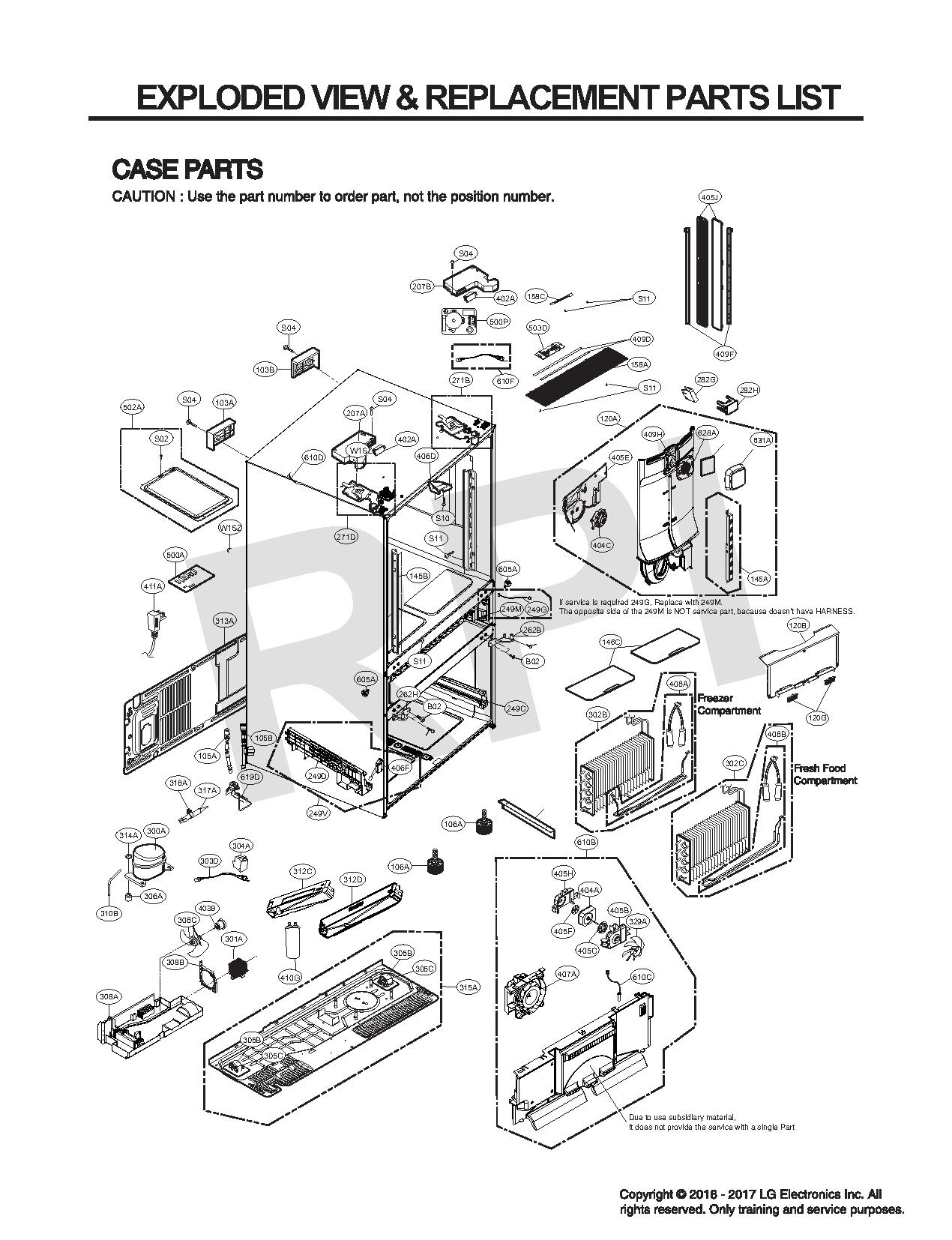

PositionProduct
S101SBZJA3004L LG Customized Screw
S044J00415H LG Custom Screw
S024J01425A LG Screw Customized
B021STZJA3004C LG Refrigerator Customized Screw
S11LGE 3
103AMEB65420102 LG Refrigerator Rear Handle
103BMEB65420101 LG Refrigerator Rear Handle
105B5251JA2006B LG Drain Tube Assembly
105A5251JA3004E LG Drain Tube Assembly
106AAFC72909201 LG Leg Assembly Adjust
120AADJ73992110 LG Multi-Duct Assembly
120BADJ73632208 LG Duct Connector Assembly
120GMCK66907701 LG Deodorizer Cover
145AMEG63423501 LG Refrigerator Shelf Holder
145BMEG63146201 LG Refrigerator Shelf Holder
146CACQ85959312 LG Refrigerator Dairy Door Cover Assembly
158AMCK67195101 LG Refrigerator Lamp Cover
158CSENSOR-TEMPERATURE
207BMCK68184702 LG Hinge Cover Assembly
207AMCK67917601 LG Hinge Cover
249VAEC73317808 LG Refrigerator Guide Assembly-Rail
249CAEC73317809 LG Rail Guide Assembly
249DHolder,Rail
249GEAD62729001 LG Refrigerator Harness Assembly
249MMDT62648401 LG Refrigerator Gear
262BAEH74197709 LG Lower Hinge Assembly
262HAEH74178010 LG Hinge Center Assembly
271DAEH73998905 LG Upper Hinge Assembly
271BAEH73998906 LG Upper Hinge Assembly
282GMJH62375102 LG Refrigerator Housing Supporter
282HMBL65205601 LG Refrigerator Duct Cap
300ATCA38151706 LG Compressor Assembly Set
301AACG73645004 LG Condenser Wire Assembly
302BADL74221702 LG Evaporator Assembly
302CADL74221802 LG Evaporator Assembly
303DEAD64168631 LG Refrigerator Harness Assembly
304AMCK70052506 LG Refrigerator PTC Cover
305BMHA62513601 LG Refrigerator Roller
305C1PZZJA3013B LG Common Pin
306AMCQ66921101 LG Refrigerator Compressor Damper
308AMJS62233503 LG Drip Tray
308BMEA42772905 LG Refrigerator Fan Guide
308CADP73273401 LG Fan Assembly
310B4J00977P LG Compressor Sealing Pipe
312C3391JJ2013U LG Refrigerator Drain Tray Assembly
312D3391JJ2013T LG Refrigerator Drain Tray Assembly
313AACQ86284803 LG Refrigerator Machinery Cover Assembly
314A4620JA3015A LG Refrigerator Compressor Stopper
315AAAN77088901 LG Compressor Base Assembly
317AADH73150208 LG Dryer Assembly
318A4930JA3034A LG Dryer Holder
329A5901JA1021A LG Refrigerator Fan Blade
402AEBF61314813 LG Refrigerator Magnet Switch
403BEAU63103301 LG DC Motor
404CMOTOR ASSY-DC
404AMOTOR-DC
405EMHN62622401 LG Refrigerator Shroud
405F5040JA2004B LG Refrigerator Motor Rubber Grommet Support
405C5040JA2009B LG Refrigerator Damper Support Motor Rubber Grommet
405JMCK67195001 LG Lamp Cover
405BMAZ61845401 LG Motor Bracket
405HMCK61880502 LG Motor Cover
406DMEG63261302 LG Refrigerator Door Holder
406FEBF61314816 LG Refrigerator Magnet Switch
407AABA72913426 LG Motor Bracket Assembly
408BMEE62805106 LG Sheath Heater
408AMEE62805303 LG Refrigerator Defrost Heater
409HEAV61572001 LG LED Assembly
409FEAV61916704 LG LED Assembly
409DEAV61916703 LG LED Assembly
410GEAE32501010 LG Electric Capacitor
410GEAE32501017 LG Refrigerator Capacitor
411AEAD62329149 LG Power Cord Assembly
500PEBR64730408 LG Power Control PCB Assembly
500AEBR84433510 LG Refrigerator Main PCB Assembly
500AEBR84433504 LG Refrigerator PCB Assembly
502A3551JA2144X LG Refrigerator Circuit Board Cover Assembly
503DMCK67228501 LG Sensor Cover
605AAHJ30124502 LG Roller Assembly
610BAEB72913942 LG Fan Grille Assembly
610CSENSOR-TEMPERATURE
610D6500JB2001B LG Refrigerator Humidity Sensor Thermistor
610FEBR71326804 LG Printed Circuit Board Assembly
619DAJU73872501 LG Refrigerator Gas Valve Assembly
628AMCK66592001 LG Refrigerator LED Cover
631AMCR64742907 LG Refrigerator Cover Decor
