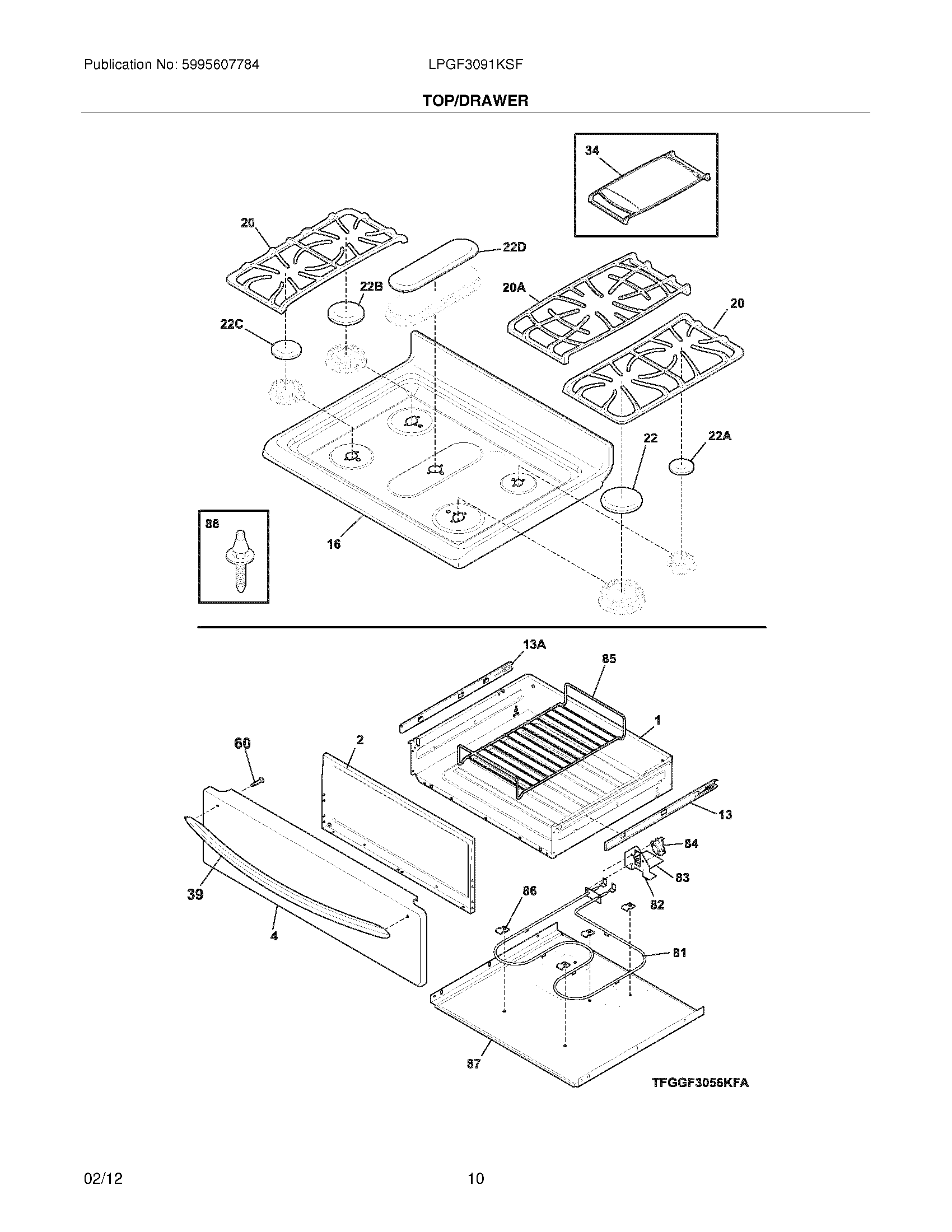

LPGF3091KSF 09 – TOP/DRAWER

Products

Position	Product
NI	316021105 Frigidaire Oven Screw
NI	5304516184 Frigidaire Harness
NI	316089500 Frigidaire Oven Screw
NI	316021109 Frigidaire Oven Screw
1	316408905 Frigidaire Dsp Drawer
2	5304527988 Frigidaire Liner
4	WCI 316409315
13	316415000 Frigidaire Oven Glide
13A	316415001 Frigidaire Oven Glide
16	WCI 316513908
20A	316571302 Frigidaire Oven Grate
22D	WCI 316532103
22	316262204 Frigidaire Oven Cap
22A	CAP
22B	5304508443 Frigidaire Oven Surface Burner Cap
22C	5304508442 Frigidaire Oven Surface Burner Cap
34	WCI 316465800
39	WCI 316551500
60	316001013 Frigidaire Oven Screw
81	316437300 Frigidaire Oven Element
82	316093200 Frigidaire Bracket
83	WCI 316093300
84	316093502 Frigidaire Thermo Disc
85	807328301 Frigidaire Oven Rack
86	316095800 Frigidaire Oven Clip
87	WCI 316091900
88	316099500 Frigidaire Oven Pin
