LPR1115ADW 02 – CONTROL PANEL/TOP ASSEMBLY – Aparts

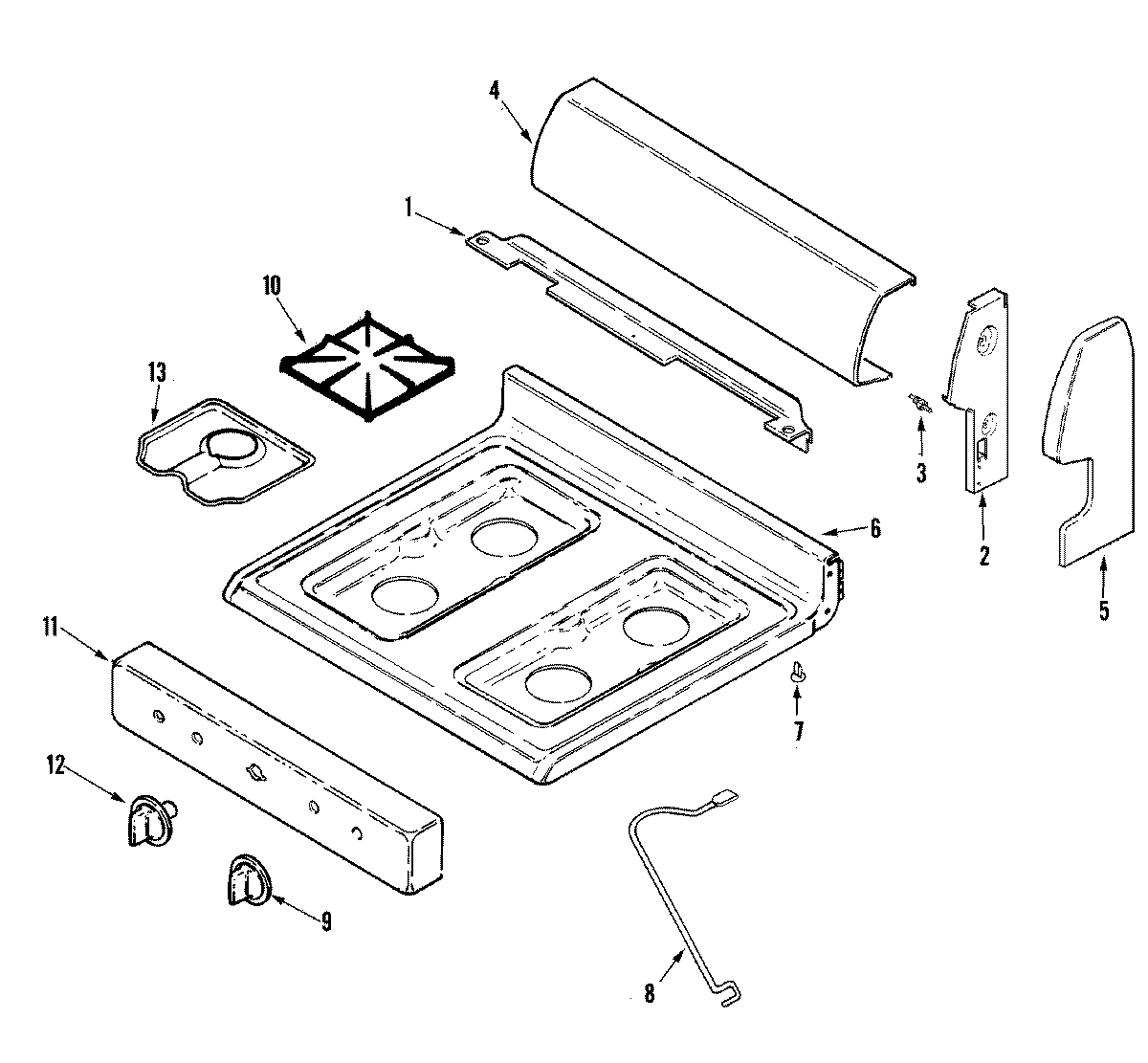

LPR1115ADW 02 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	MAY 7101P209-60
1	MAY 74002409
1	MAY 74005319
2	SCREW (8BX3/8-NI)
2	W10828565 Whirlpool Screw
2	MAY 74002402
2	MAY 74002403
3	MAY 74002404
4	MAY 74008215
4	SCREW
5	MAY 74002438
5	MAY 74002439
5	MAY 74002451
5	WP98008544 Whirlpool Screw Assembly
6	MAY 74002410
7	MAY 8016P015-60
8	MAY 74004084
9	MAY 74002497
10	WP2003X030-00 Whirlpool Burner Grate
11	MAY 7109P015-60
11	MAY 74002442
11	MAY 7101P074-60
12	W10856103 Whirlpool Knob
12	MAY 74002496
13	MAY 5401A433-60
