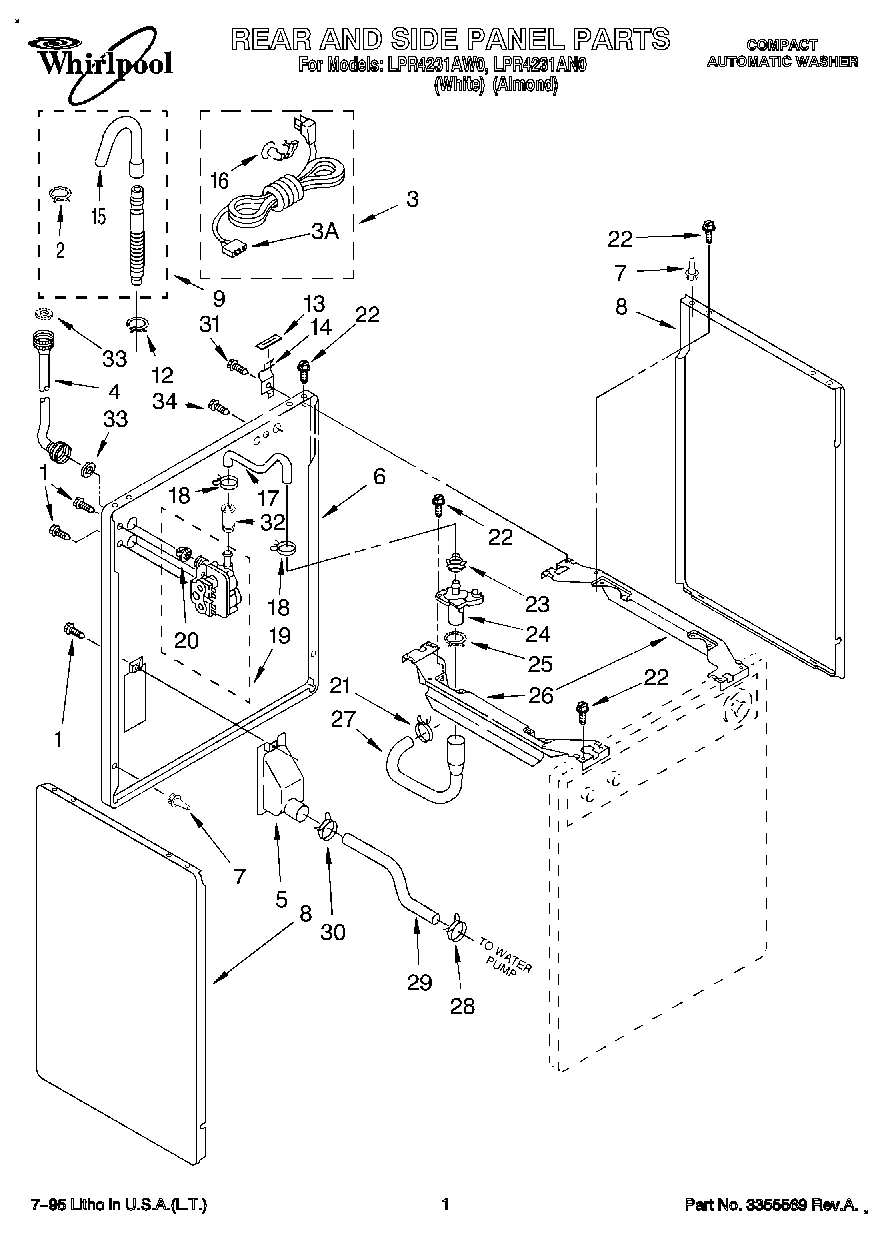

LPR4231AN0 01 – REAR AND SIDE PANEL

Products

Position	Product
1	WP3390631 Whirlpool Screw
2	WP3357331 Whirlpool Clamp
3	Cord, Power
3A	Receptacle, 3-Way Terminal (Use W/94614)
4	WP89503 Whirlpool Washer Fill Hose
5	WPW10358149 Whirlpool Hose
6	Panel, Rear (Almond Model)
6	Panel, Rear (White Model)
7	Locator, Top
8	Panel, Side (2) (White Model)
8	Panel, Side (2) (Almond Model)
9	285666 Whirlpool Drain Hose 10'
9	285664 Whirlpool Drain Hose
9	285702 Whirlpool Extensions
12	WP356138 Whirlpool Hose Clamp
13	18849 Whirlpool Pad
14	Hinge (L.H.)
15	WP3357027 Whirlpool Nozzle Assembly
16	Strain Relief, Power Cord
17	Hose, Water Inlet
18	WP596669 Whirlpool Hose Clamp
19	285805 Whirlpool Washer Water Inlet Valve
20	WP96160 Whirlpool Washer Inlet Valve Screen
22	60001022 Whirlpool Oven Screw
23	WP356471 Whirlpool Cap
24	WP356363 Whirlpool Siphon Break
25	WP616099 Whirlpool Clamp
26	Brace, Tie (2)
27	Hose, Siphon Break
28	WP285655 Whirlpool Hose Clamp
29	Hose, Pump Drain
31	SCREW
32	Insert-Inlet Valve
33	WP16123 Whirlpool Washer
