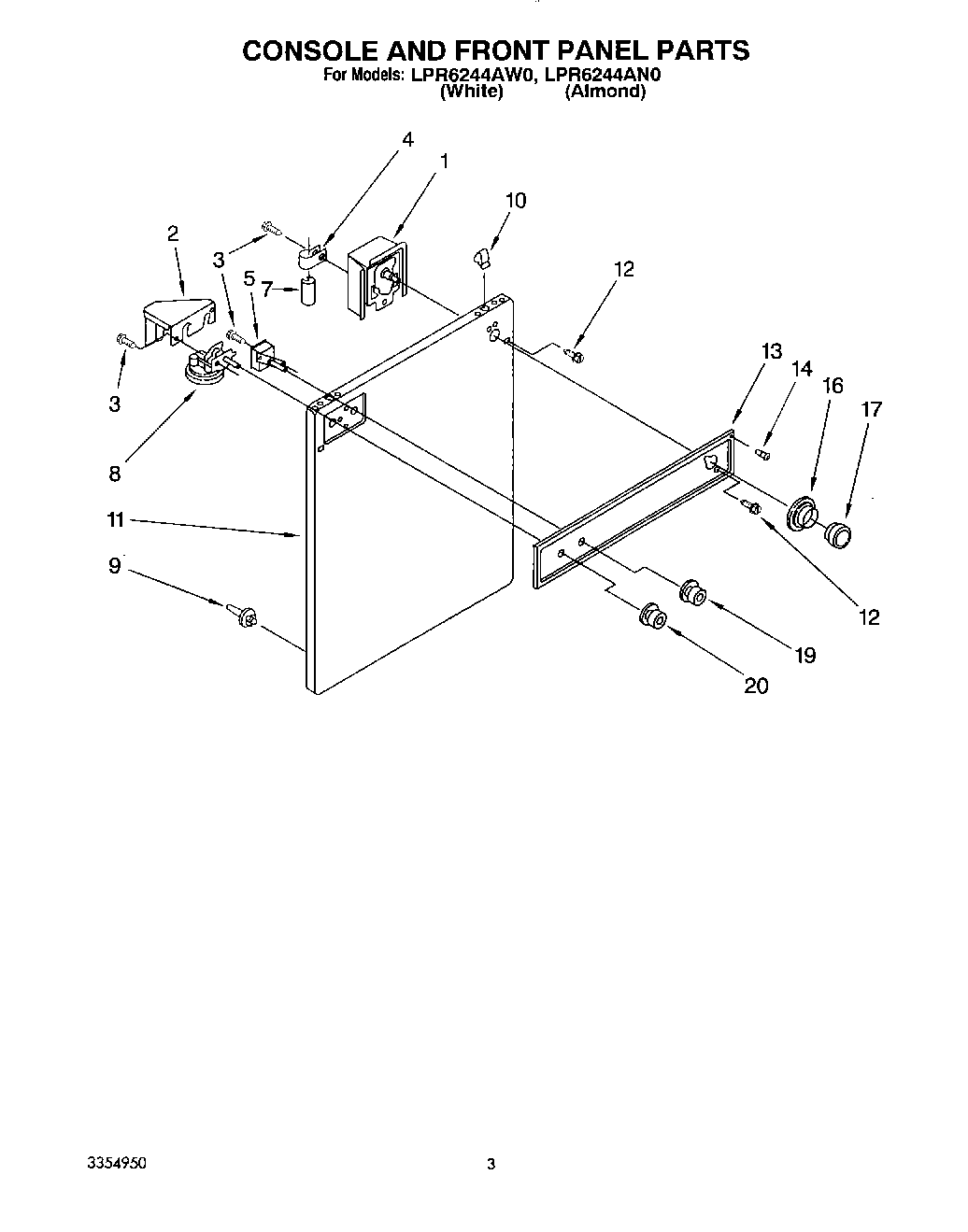

LPR6244AN0 02 – CONSOLE AND FRONT PANEL

Products

PositionProduct
1Timer, 60 Hz. (Serviced Only As A Complete Assembly. Timer Motor Is Non Serviceable.)
2Shield, Control
3Screw, No.8 x 5/16
4357030 Whirlpool Clamp
5Switch, Water Temperature
7CAPACITOR
8Switch, Water Level
9Locator, Top
10Lock, Front Top
11Panel, Front (Almond Model)
11Panel, Front (White Model)
12WP356418 Whirlpool Screw
13Panel, Console (White Model)
13Panel, Console (Almond Model)
14Rivet, Plastic (4)
16Top (For Almond Model)
16Dial, Timer (Almond Model)
17Knob, Timer (Almond)
17WPL 3392698
19Knob & Skirt (Water Temperature) (White Model)
19Knob & Skirt (Water Temperature) (Almond Model)
20WP3957805 Whirlpool Knob
20Knob & Skirt (Water Level) (Almond Model)
