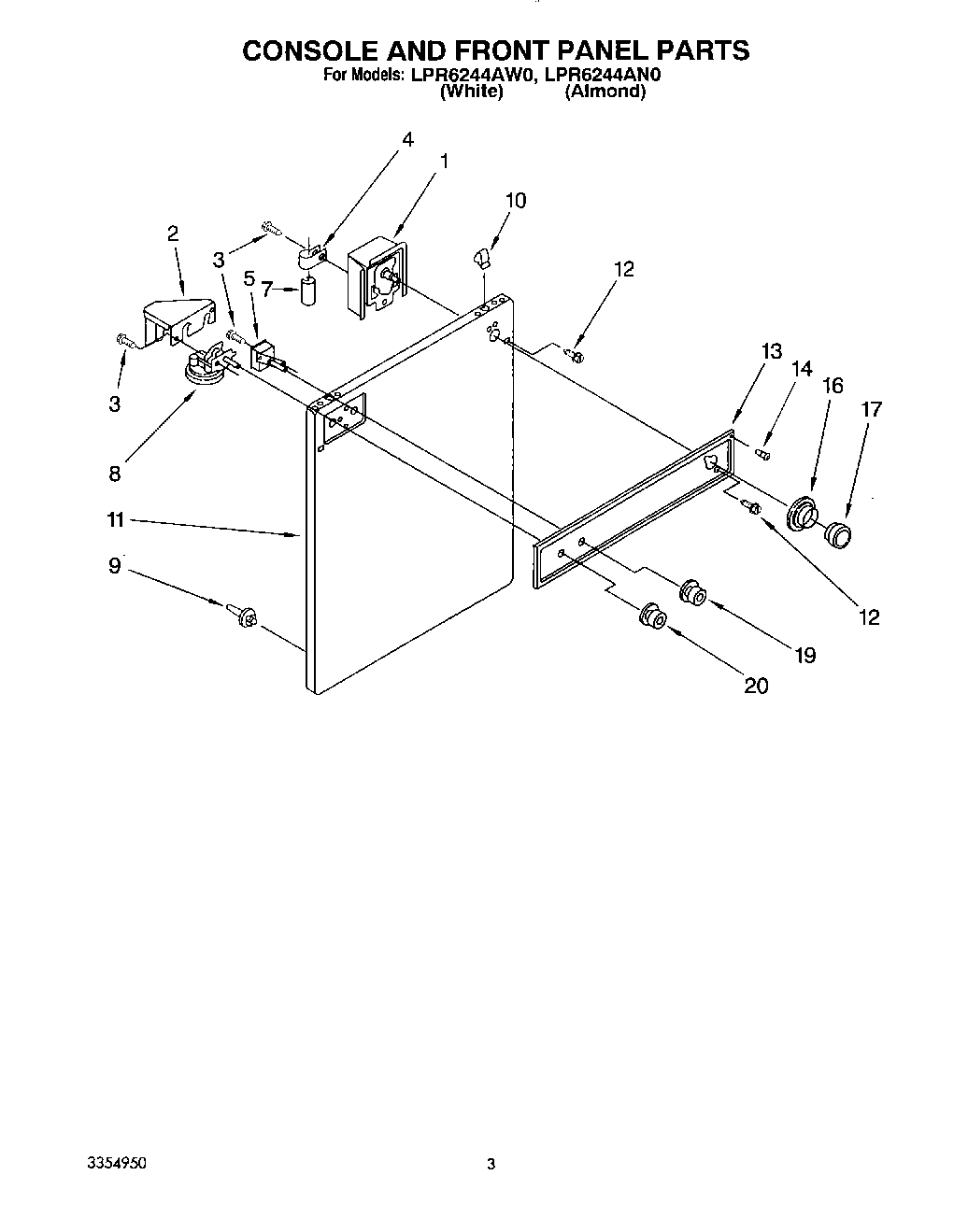

LPR6244AW0 02 – CONSOLE AND FRONT PANEL

Products

Position	Product
1	Timer, 60 Hz. (Serviced Only As A Complete Assembly. Timer Motor Is Non Serviceable.)
2	Shield, Control
3	Screw, No.8 x 5/16
4	357030 Whirlpool Clamp
5	Switch, Water Temperature
7	CAPACITOR
8	Switch, Water Level
9	Locator, Top
10	Lock, Front Top
11	Panel, Front (Almond Model)
11	Panel, Front (White Model)
12	WP356418 Whirlpool Screw
13	Panel, Console (White Model)
13	Panel, Console (Almond Model)
14	Rivet, Plastic (4)
16	Top (For Almond Model)
16	Dial, Timer (Almond Model)
17	Knob, Timer (Almond)
17	WPL 3392698
19	Knob & Skirt (Water Temperature) (White Model)
19	Knob & Skirt (Water Temperature) (Almond Model)
20	WP3957805 Whirlpool Knob
20	Knob & Skirt (Water Level) (Almond Model)
