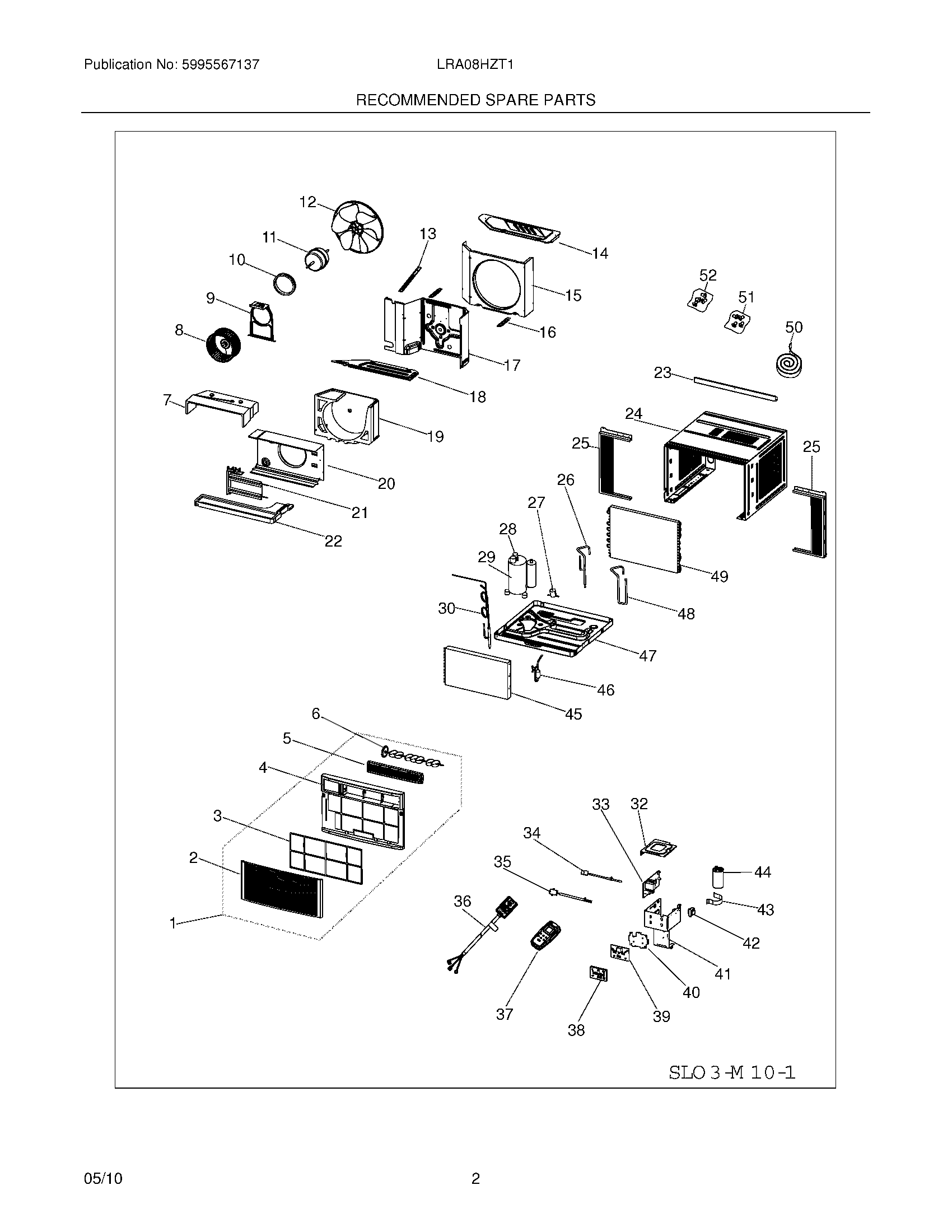

LRA08HZT11 03 – RECOMMENDED SPARE PARTS

Products

Position	Product
1	WCI 5304471240
2	WCI 5304471241
3	WCI 5304471242
4	WCI 5304471243
5	WCI 5304471244
6	WCI 5304471245
7	WCI 5304471311
8	5304471312 Frigidaire Air Conditioner Blower Wheel
9	WCI 5304471285
10	WCI 5304471286
11	WCI 5304471284
12	5304471287 Frigidaire Air Conditioner Fan Blade
13	WCI 5304471254
14	WCI 5304471288
15	WCI 5304476387
16	WCI 5304471253
17	WCI 5304471248
18	WCI 5304476388
19	WCI 5304471301
20	WCI 5304476389
21	5304477339 Frigidaire Air Conditioner Heater
22	WCI 5304471265
23	WCI 5304471255
24	WCI 5304477340
25	WCI 5304471252
26	WCI 5304477341
27	Valve,drain
28	WCI 5304476291
29	WCI 5304476006
30	WCI 5304477342
32	WCI 5304476396
33	WCI 5304477343
34	Sensor,temperature ,ambient
35	5304471275 Frigidaire Air Conditioner Sensor
36	WCI 5304476905
37	5304477003 Frigidaire Air Conditioner Remote Control
38	WCI 5304477350
39	5304471308 Frigidaire Air Conditioner PC Board
40	WCI 5304471271
41	WCI 5304476399
42	5304470989 Frigidaire Air Conditioner Transformer
43	Strap,capacitor clamp
44	WCI 5304471306
45	WCI 5304477346
46	5304476367 Frigidaire Air Conditioner Filter Drier
47	WCI 5304477347
48	WCI 5304477348
49	WCI 5304477349
50	Seal kit,window ,foam strips
51	WCI 5304471257
52	Screw Kit,top rail mount
