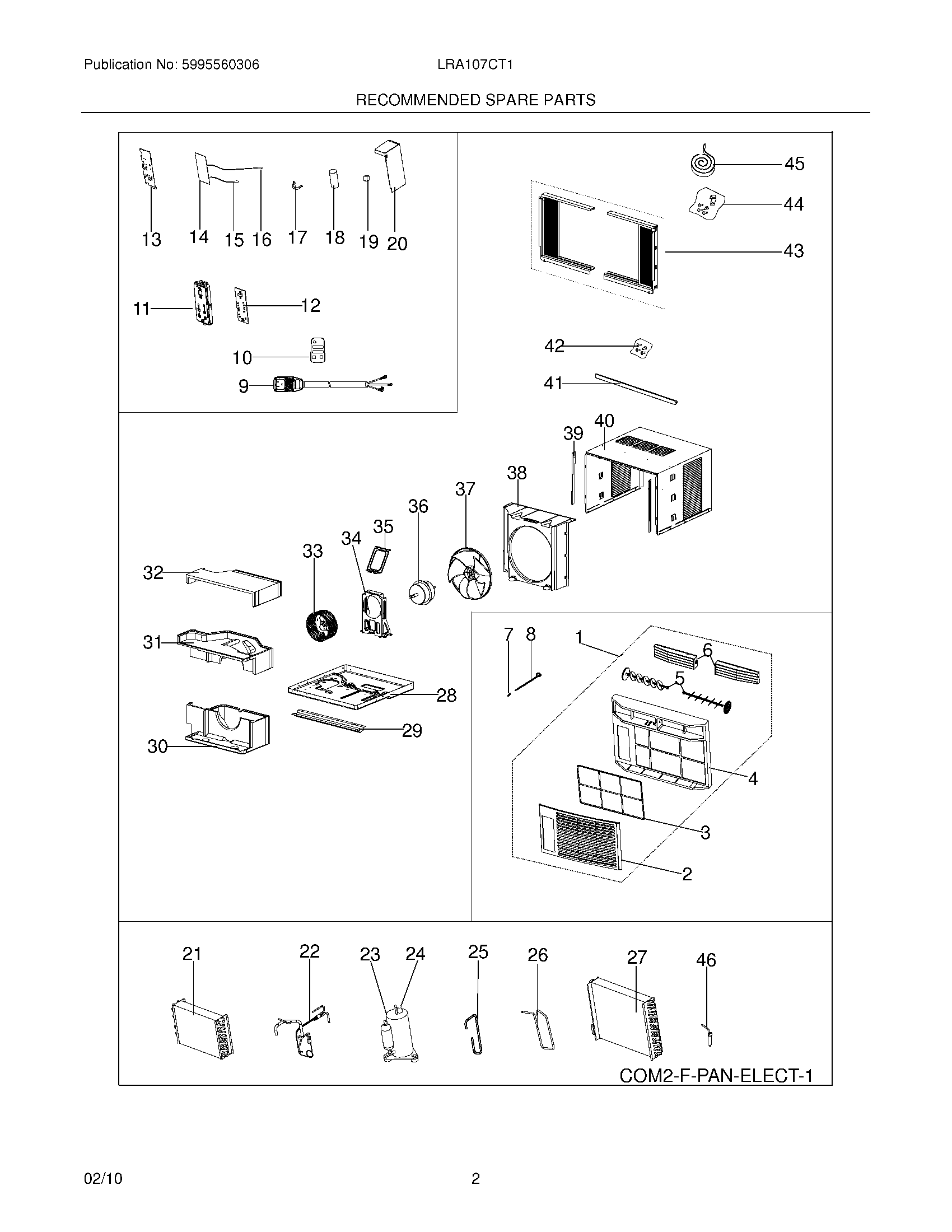

LRA107CT15 03 – RECOMMENDED SPARE PARTS

Products

Position	Product
1	WCI 5304476859
2	WCI 5304476860
3	5304535830 Frigidaire Filter
4	WCI 5304476862
5	WCI 5304476863
6	WCI 5304476864
7	WCI 5304476865
8	5304536384 Frigidaire Electrical Control
9	5304476178 Frigidaire Air Conditioner Door Assembly
10	5304476179 Frigidaire Air Conditioner Sleeve
11	5304476180 Frigidaire Power Cord Air Conditioner
12	WCI 5304476866
13	Cover,control box
14	WCI 5304476183
15	5304471275 Frigidaire Air Conditioner Sensor
16	5304476053 Frigidaire Air Conditioner Sensor
17	Strap,capacitor clamp
18	5304476066 Frigidaire Air Conditioner Capacitor
20	WCI 5304476225
21	WCI 5304476226
22	WCI 5304476227
23	WCI 5304476065
24	WCI 5304476295
26	WCI 5304476228
27	WCI 5304476188
28	WCI 5304476229
29	WCI 5304476190
30	WCI 5304476191
31	WCI 5304476192
32	WCI 5304476193
33	WCI 5304476058
34	Support,motor mount ,left
35	Support,motor mount ,right
36	WCI 5304476057
37	5304476059 Frigidaire Air Conditioner Fan Blade
38	WCI 5304476196
39	Retainer,shutter ,cabinet sides
40	Cabinet,wrapper/sleeve
41	WCI 5304476867
42	Screw Kit,top rail mount
43	5304476200 Frigidaire Air Conditioner Window Filler Kit
44	WCI 5304472192
45	Seal kit,foam ,sash filler
46	5304476201 Frigidaire Air Conditioner Filter Drier
