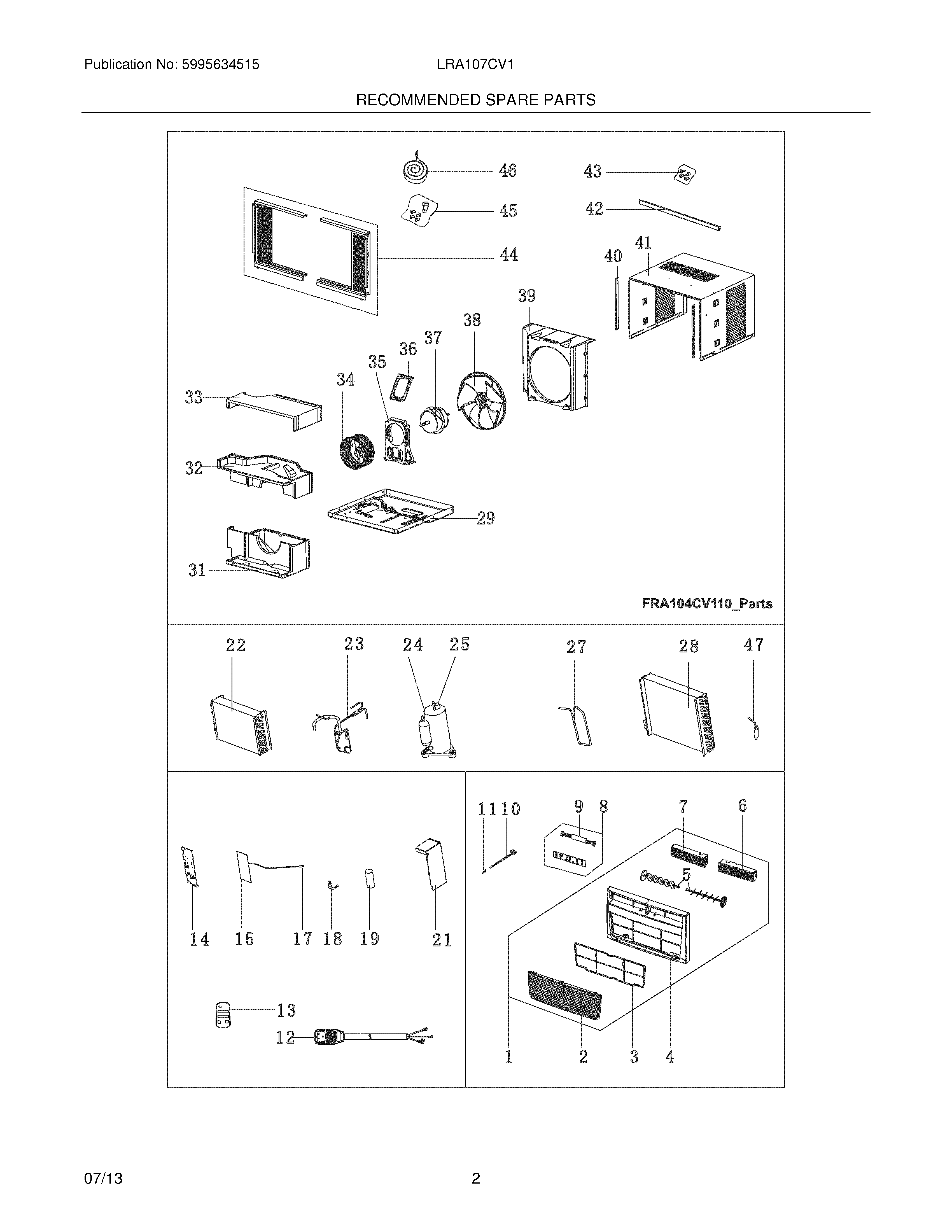

LRA107CV120 03 – RECOMMENDED SPARE PARTS

Products

Position	Product
1	WCI 5304476859
2	WCI 5304476860
3	5304535830 Frigidaire Filter
4	WCI 5304476862
5	WCI 5304476863
6	WCI 5304476864
7	WCI 5304476865
8	5304536384 Frigidaire Electrical Control
9	5304482356 Frigidaire Wire
10	5304476178 Frigidaire Air Conditioner Door Assembly
11	5304476179 Frigidaire Air Conditioner Sleeve
12	5304476180 Frigidaire Power Cord Air Conditioner
13	5304487535 Frigidaire Air Conditioner Remote Control
14	Cover,control box
15	WCI 5304487221
17	5304504724 Frigidaire Sensor
18	Strap,capacitor clamp
19	WCI 5304476003
21	WCI 5304476225
22	WCI 5304491981
23	WCI 5304485965
24	COMPRESSOR
25	OVERLOAD PROTECTOR
27	WCI 5304491976
28	WCI 5304476233
29	WCI 5304491977
31	Scroll,blower housing ,bottom
32	Scroll,blower housing ,middle
33	Scroll,blower housing ,top
34	5304485443 Frigidaire Air Conditioner Blower Wheel
35	Support,motor mount ,left
36	Support,motor mount ,right
37	Motor,fan
38	5304476059 Frigidaire Air Conditioner Fan Blade
39	Shroud,condenser fan
40	Retainer,shutter ,cabinet sides
41	Cabinet,wrapper/sleeve
42	WCI 5304476843
43	Screw Kit,top rail mount
44	5304476200 Frigidaire Air Conditioner Window Filler Kit
45	5304491953 Frigidaire Air Conditioner Hardware
46	Seal kit,foam ,sash filler
47	5304476201 Frigidaire Air Conditioner Filter Drier
