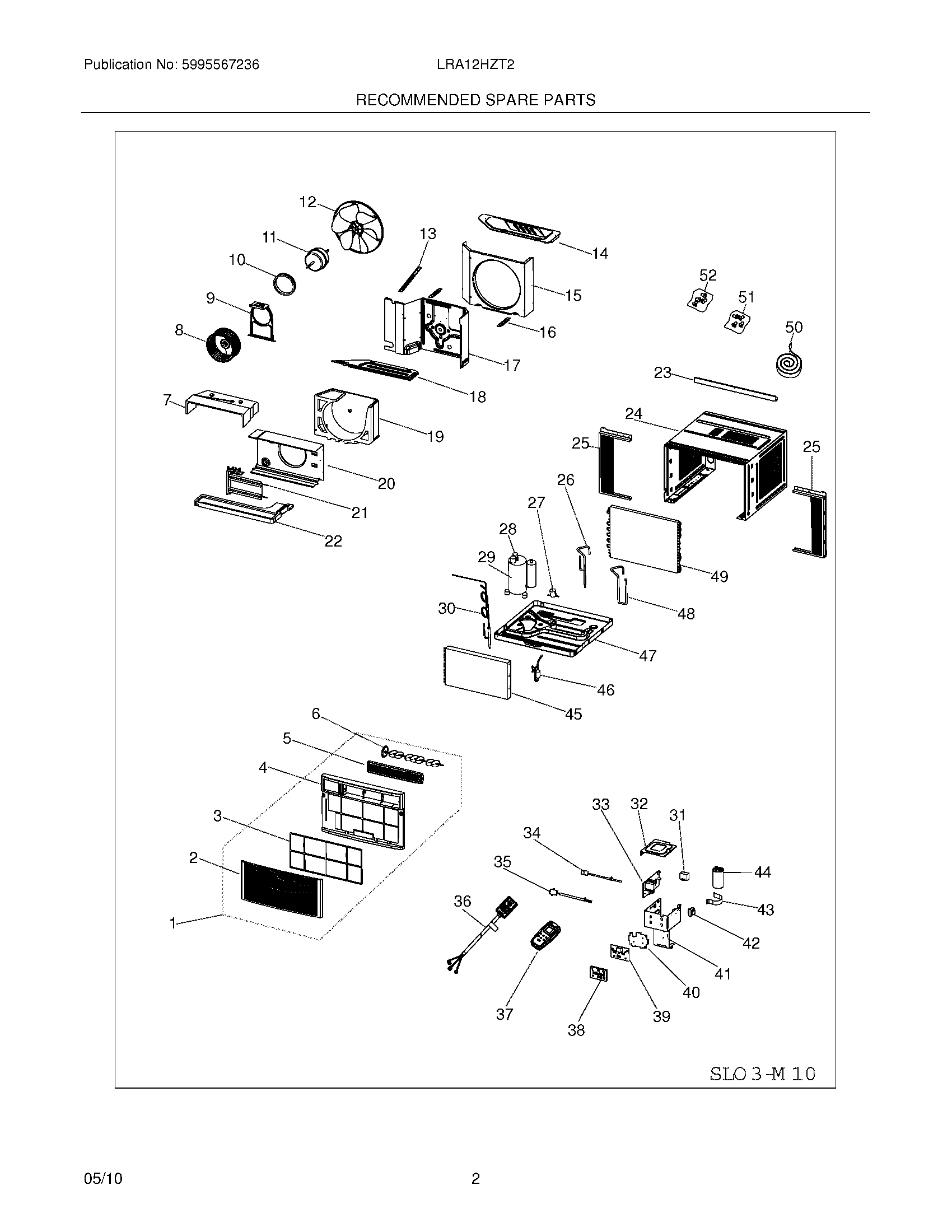

LRA12HZT21 03 – RECOMMENDED SPARE PARTS

Products

Position	Product
1	WCI 5304471240
2	WCI 5304471241
3	WCI 5304471242
4	WCI 5304471243
5	WCI 5304471244
6	WCI 5304471245
7	WCI 5304471311
8	5304471312 Frigidaire Air Conditioner Blower Wheel
9	WCI 5304471285
10	WCI 5304471286
11	WCI 5304471323
12	5304471287 Frigidaire Air Conditioner Fan Blade
13	WCI 5304471254
14	WCI 5304471288
15	WCI 5304476387
16	WCI 5304471253
17	WCI 5304471248
18	WCI 5304476388
19	WCI 5304471301
20	WCI 5304476389
21	5304476390 Frigidaire Air Conditioner Heater Assembly
22	WCI 5304471265
23	WCI 5304471255
24	WCI 5304477340
25	WCI 5304471252
26	WCI 5304476394
27	Valve,drain
28	WCI 5304476298
29	WCI 5304475747
30	WCI 5304476395
31	5304471077 Frigidaire Air Conditioner Capacitor
32	WCI 5304476396
33	5304491882 Frigidaire Air Conditioner Printed Circuit Board
34	Sensor,temperature ,ambient
35	5304512375 Frigidaire Air Conditioner Sensor
36	WCI 5304477196
37	5304477003 Frigidaire Air Conditioner Remote Control
38	WCI 5304477350
39	5304471308 Frigidaire Air Conditioner PC Board
40	WCI 5304471271
41	WCI 5304476399
42	5304471063 Frigidaire Air Conditioner Transformer
43	WCI 5304476400
44	WCI 5304475748
45	WCI 5304476401
46	5304476367 Frigidaire Air Conditioner Filter Drier
47	WCI 5304477351
48	WCI 5304476403
49	WCI 5304476404
50	Seal kit,window ,foam strips
51	WCI 5304471257
52	Screw Kit,top rail mount
