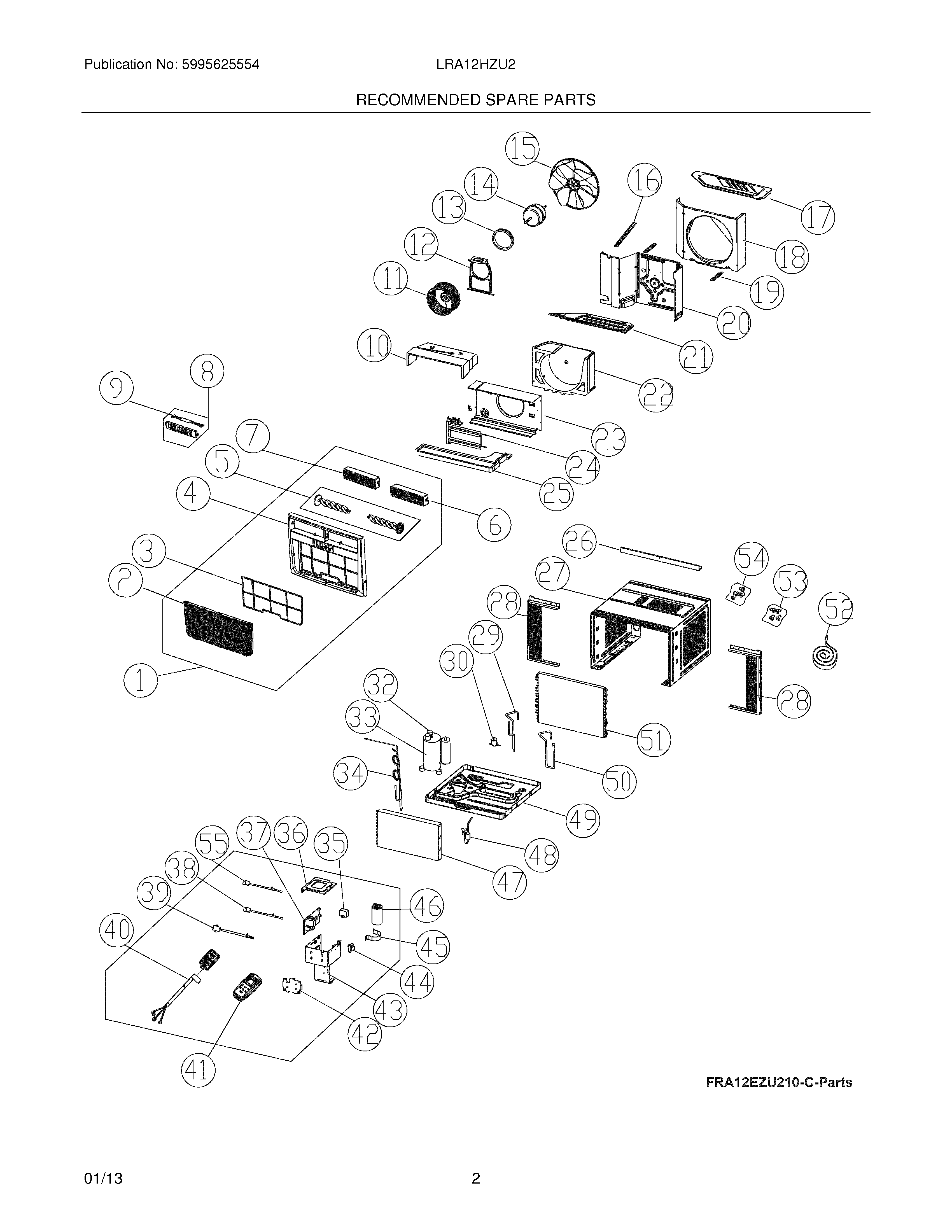

LRA12HZU210 03 – RECOMMENDED SPARE PARTS

LRA12HZU210 03 – RECOMMENDED SPARE PARTS

Written by

in

LRA12HZU210 03 – RECOMMENDED SPARE PARTS

Products

PositionProduct
1Front Assembly,complete panel
2· Panel,front
35304535825 Frigidaire Air Filter
4· Frame,front assembly
55304483226 Frigidaire Air Conditioner Louver
65304483227 Frigidaire Air Conditioner Louver
7· Louver,horizontal ,left
8WCI 5304482936
9· Wire,connector ,pc boards
10WCI 5304483210
115304471312 Frigidaire Air Conditioner Blower Wheel
12WCI 5304471285
13WCI 5304471286
14WCI 5304483231
155304471287 Frigidaire Air Conditioner Fan Blade
16WCI 5304471254
17WCI 5304471288
18WCI 5304483211
19WCI 5304471253
20WCI 5304487602
21WCI 5304476388
22WCI 5304471301
23WCI 5304487603
245304476390 Frigidaire Air Conditioner Heater Assembly
25WCI 5304471265
26WCI 5304482525
27Cabinet,wrapper/sleeve
28WCI 5304471252
29WCI 5304476394
30Valve,drain
32WCI 5304476298
33WCI 5304475747
34WCI 5304487617
355304471077 Frigidaire Air Conditioner Capacitor
36WCI 5304483214
375304483232 Frigidaire Air Conditioner PC Board
38Sensor,temperature ,ambient
395304512375 Frigidaire Air Conditioner Sensor
40Power Cord,electric ,LCDI
41WCI 5304483073
42WCI 5304487610
43WCI 5304483218
445304471063 Frigidaire Air Conditioner Transformer
45WCI 5304476400
46WCI 5304475748
47WCI 5304487618
485304476367 Frigidaire Air Conditioner Filter Drier
49WCI 5304476402
50WCI 5304487619
51WCI 5304484659
52Seal kit,window ,foam strips
53WCI 5304471257
54Screw Kit,top rail mount
55SENSOR
