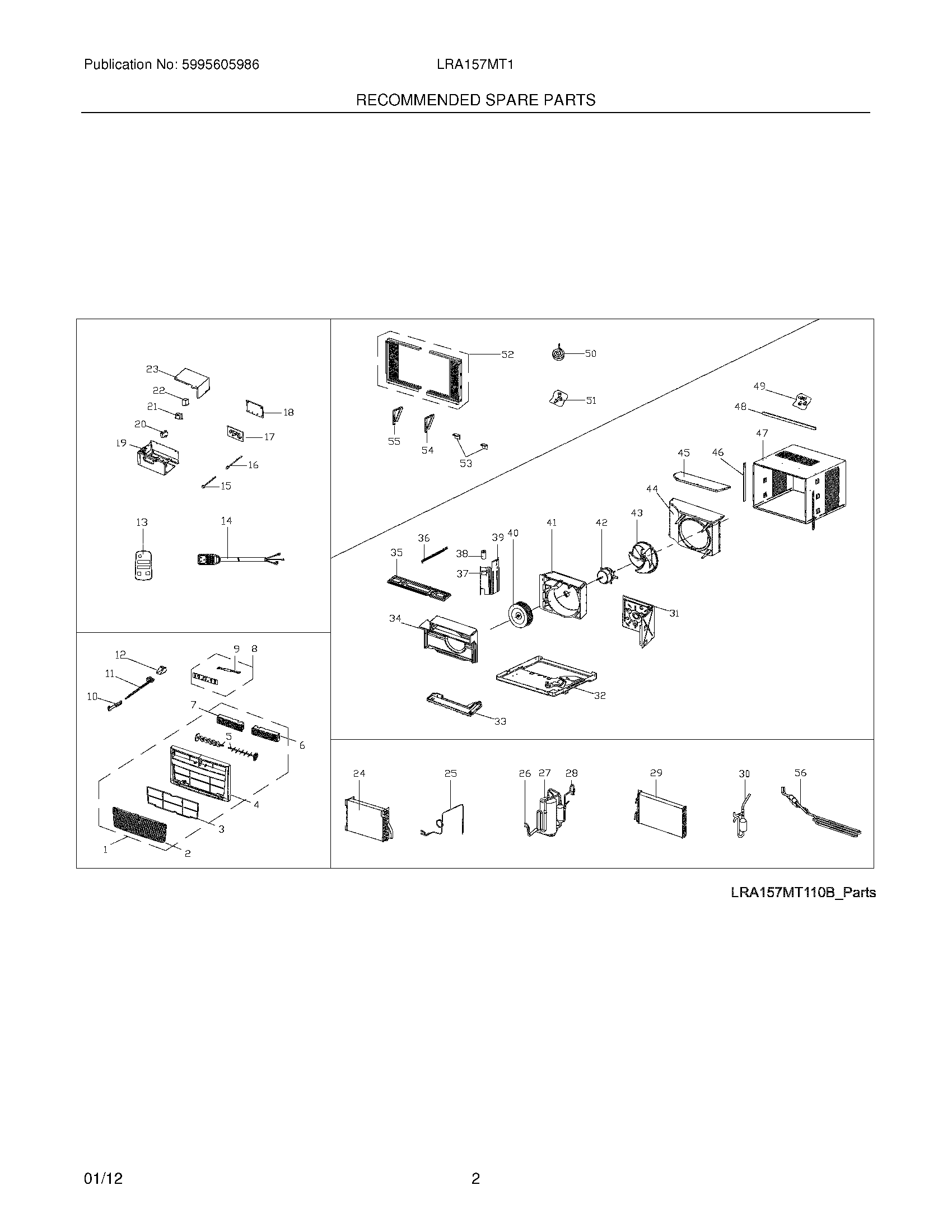

LRA157MT112 03 – RECOMMENDED SPARE PARTS

LRA157MT112 03 – RECOMMENDED SPARE PARTS

Written by

in

LRA157MT112 03 – RECOMMENDED SPARE PARTS

Products

PositionProduct
1WCI 5304476955
2WCI 5304476956
3FILTER-AIR
4WCI 5304476958
5WCI 5304476959
6Louver,horizontal ,left
7Louver,horizontal ,right
8WCI 5304476357
9Wire,connector ,pc boards
10Handle,vent control
11Door,vent control ,with lever
125304476359 Frigidaire Air Conditioner Link Assembly
13WCI 5304476866
145304476180 Frigidaire Power Cord Air Conditioner
155304512375 Frigidaire Air Conditioner Sensor
16Sensor,temperature ,ambient
175304492070 Frigidaire Air Conditioner PC Board
18WCI 5304476251
19WCI 5304476361
205304483052 Frigidaire Air Conditioner Capacitor
215304470989 Frigidaire Air Conditioner Transformer
23WCI 5304476314
24Evaporator,with cap tube
25· Tube,capillary
26WCI 5304476364
27WCI 5304475730
28WCI 5304476365
29WCI 5304476366
305304476367 Frigidaire Air Conditioner Filter Drier
31WCI 5304472538
32Base,unit chassis
33Tray,drip pan
34Scroll,blower housing ,front
35WCI 5304476326
36WCI 5304476327
37WCI 5304476370
38WCI 5304483057
39Bulkhead,partition ,front/left
40WCI 5304472532
41Scroll,blower housing ,rear
42WCI 5304472539
43BLADE-FAN
44WCI 5304476329
45WCI 5304476330
46Retainer,shutter ,cabinet sides
47Cabinet,wrapper/sleeve
48Rail,shutter track ,top angle
49Screw Kit,top rail mount
50WCI 5304472548
51Hardware,mounting ,screws/locks
52Window Filler Kit,slider panel
53Bracket,sill angle
54Bracket,mounting ,right window
55Bracket,mounting ,left window
56Tube,condensate evap ,drain pan
