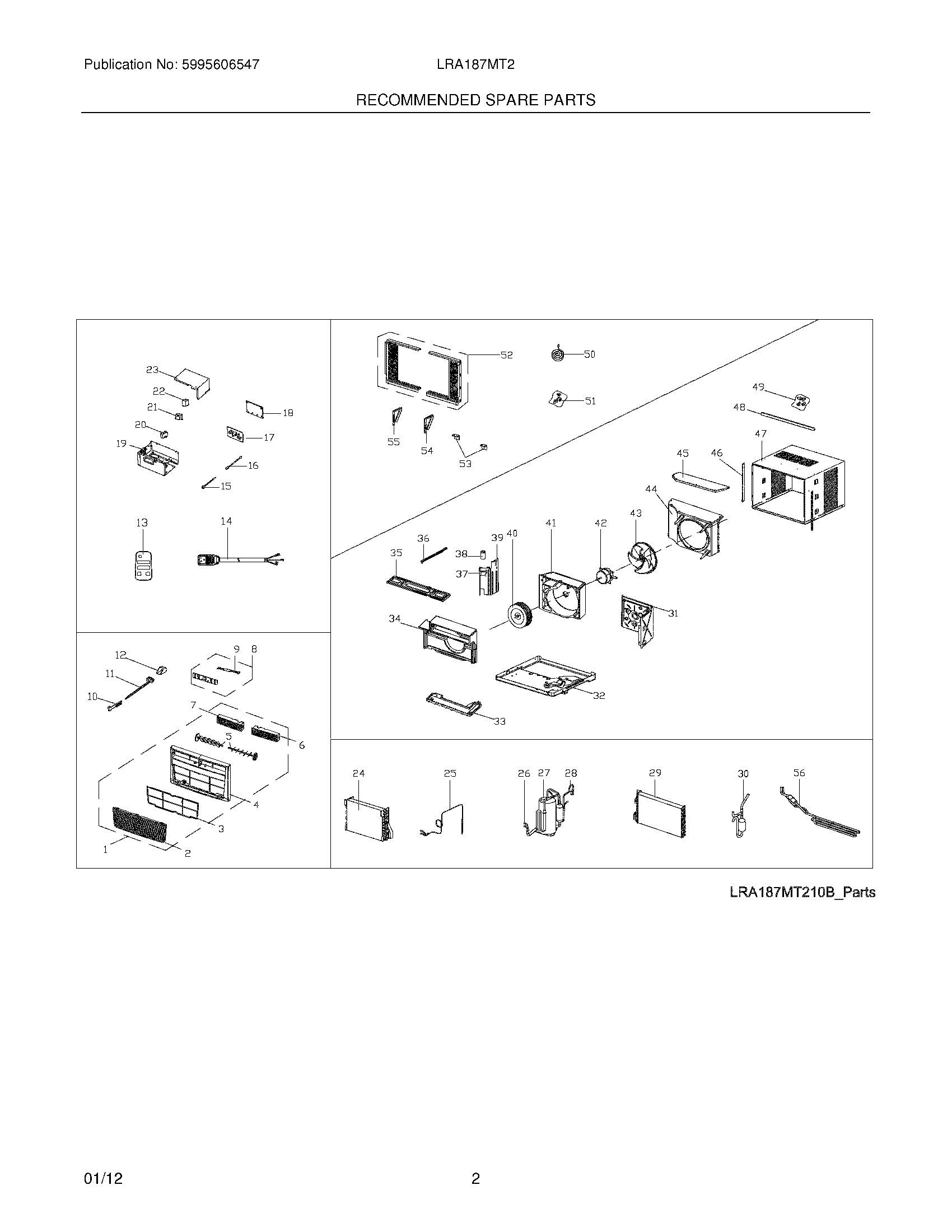

LRA187MT210 03 – RECOMMENDED SPARE PARTS

Products

Position	Product
1	WCI 5304476955
2	WCI 5304476956
3	FILTER-AIR
4	WCI 5304476958
5	WCI 5304476959
6	Louver,horizontal ,left
7	Louver,horizontal ,right
8	WCI 5304476357
9	Wire,connector ,pc boards
10	Handle,vent control
11	Door,vent control ,with lever
12	5304476359 Frigidaire Air Conditioner Link Assembly
13	WCI 5304476866
14	Power Cord,electric ,LCDI
15	5304512375 Frigidaire Air Conditioner Sensor
16	Sensor,temperature ,ambient
17	5304492070 Frigidaire Air Conditioner PC Board
18	WCI 5304476251
19	WCI 5304476361
20	5304482883 Frigidaire Air Conditioner Capacitor
21	5304471063 Frigidaire Air Conditioner Transformer
23	WCI 5304476314
24	Evaporator,with cap tube
25	WCI 5304476378
26	Tube,suction
27	WCI 5304475740
28	WCI 5304476379
29	WCI 5304476380
30	5304476322 Frigidaire Air Conditioner Filter Drier
31	WCI 5304472538
32	Base,unit chassis
33	Tray,drip pan
34	Scroll,blower housing ,front
35	WCI 5304476326
36	WCI 5304476327
37	Strap,capacitor clamp
38	WCI 5304475736
39	Bulkhead,partition ,front/left
40	5304472407 Frigidaire Air Conditioner Blower Wheel
41	Scroll,blower housing ,rear
42	5304483059 Frigidaire Air Conditioner Motor
43	BLADE-FAN
44	WCI 5304476329
45	WCI 5304476330
46	Retainer,shutter ,cabinet sides
47	Cabinet,wrapper/sleeve
48	Rail,shutter track ,top angle
49	Screw Kit,top rail mount
50	WCI 5304472548
51	Hardware,mounting ,screws/locks
52	Window Filler Kit,slider panel
53	Bracket,sill angle
54	Bracket,mounting ,right window
55	Bracket,mounting ,left window
56	Tube,condensate evap ,drain pan
