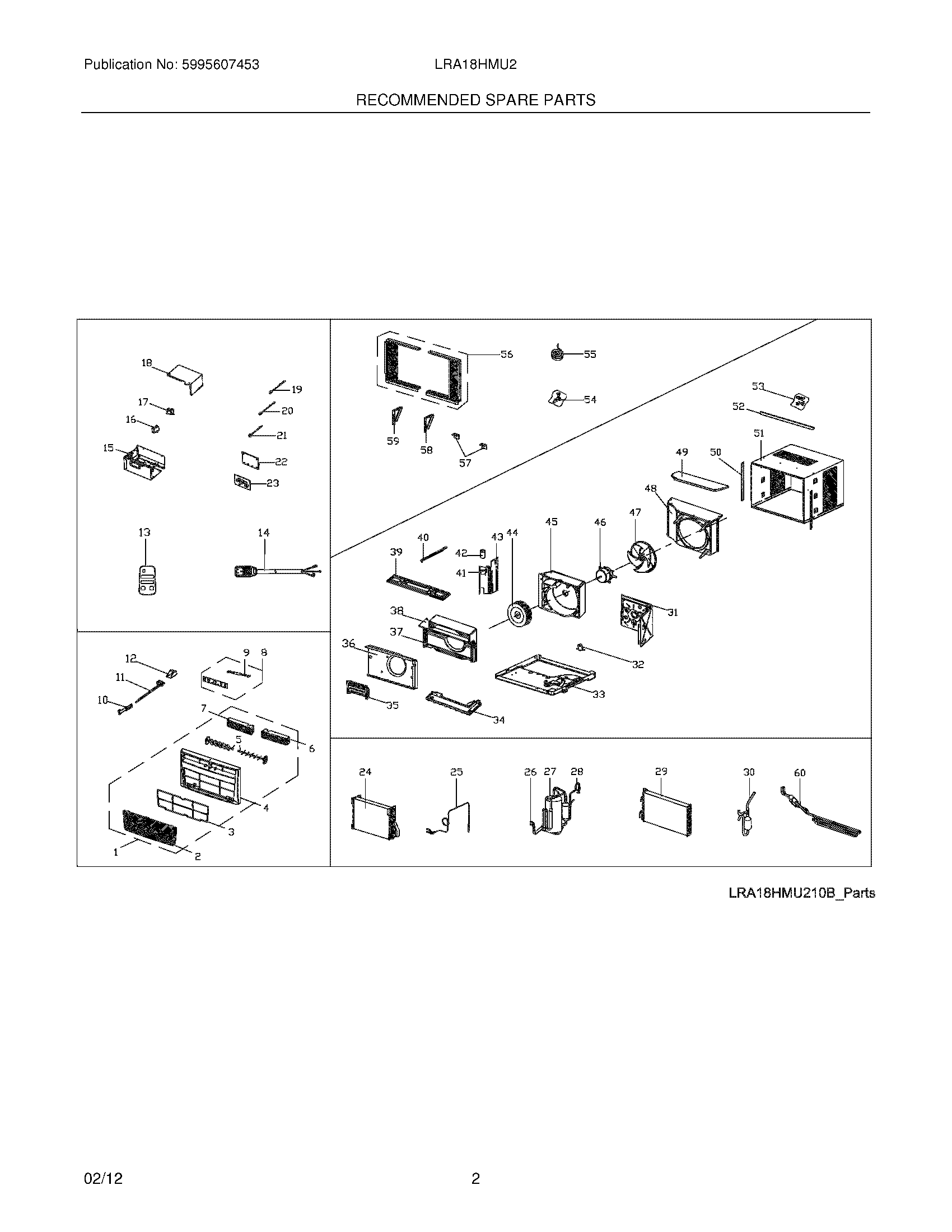

LRA18HMU210 03 – RECOMMENDED SPARE PARTS

Products

Position	Product
1	WCI 5304483069
2	WCI 5304476956
3	FILTER-AIR
4	Panel, Frame Front
5	WCI 5304476959
6	WCI 5304483072
7	WCI 5304483071
8	WCI 5304482936
9	Wire,connector ,pc boards
10	Handle,vent control
11	Door,vent control ,with lever
12	5304476359 Frigidaire Air Conditioner Link Assembly
13	WCI 5304483073
14	5304476312 Frigidaire Air Conditioner Power Cord
15	WCI 5304476361
16	5304482883 Frigidaire Air Conditioner Capacitor
17	5304471063 Frigidaire Air Conditioner Transformer
18	WCI 5304476314
19	Sensor,temperature ,ambient
20	SENSOR
21	5304512375 Frigidaire Air Conditioner Sensor
22	WCI 5304476251
23	WCI 5304483065
24	WCI 5304483058
25	WCI 5304476318
26	Tube,suction
27	5304475735 Frigidaire Air Conditioner Compressor
28	WCI 5304476320
29	WCI 5304476321
30	5304476322 Frigidaire Air Conditioner Filter Drier
31	WCI 5304472538
32	Valve,drain
33	Base,unit chassis
34	Tray,drip pan
35	5304529410 Frigidaire Heater
36	WCI 5304476325
37	WCI 5304483066
38	WCI 5304483067
39	WCI 5304476326
40	WCI 5304476327
41	Strap,capacitor clamp
42	WCI 5304475736
43	Bulkhead,partition ,front/left
44	5304529414 Frigidaire Blower-Fan
45	Scroll,blower housing ,rear
46	5304483059 Frigidaire Air Conditioner Motor
47	BLADE-FAN
48	WCI 5304476329
49	WCI 5304476330
50	Retainer,shutter ,cabinet sides
51	WCI 5304482516
52	Rail,shutter track ,top angle
53	Screw Kit,top rail mount
54	WCI 5304472548
55	Hardware,mounting ,screws/locks
56	Window Filler Kit,slider panel
57	Bracket,sill angle
58	Bracket,mounting ,right window
59	Bracket,mounting ,left window
60	Tube,condensate evap ,drain pan
