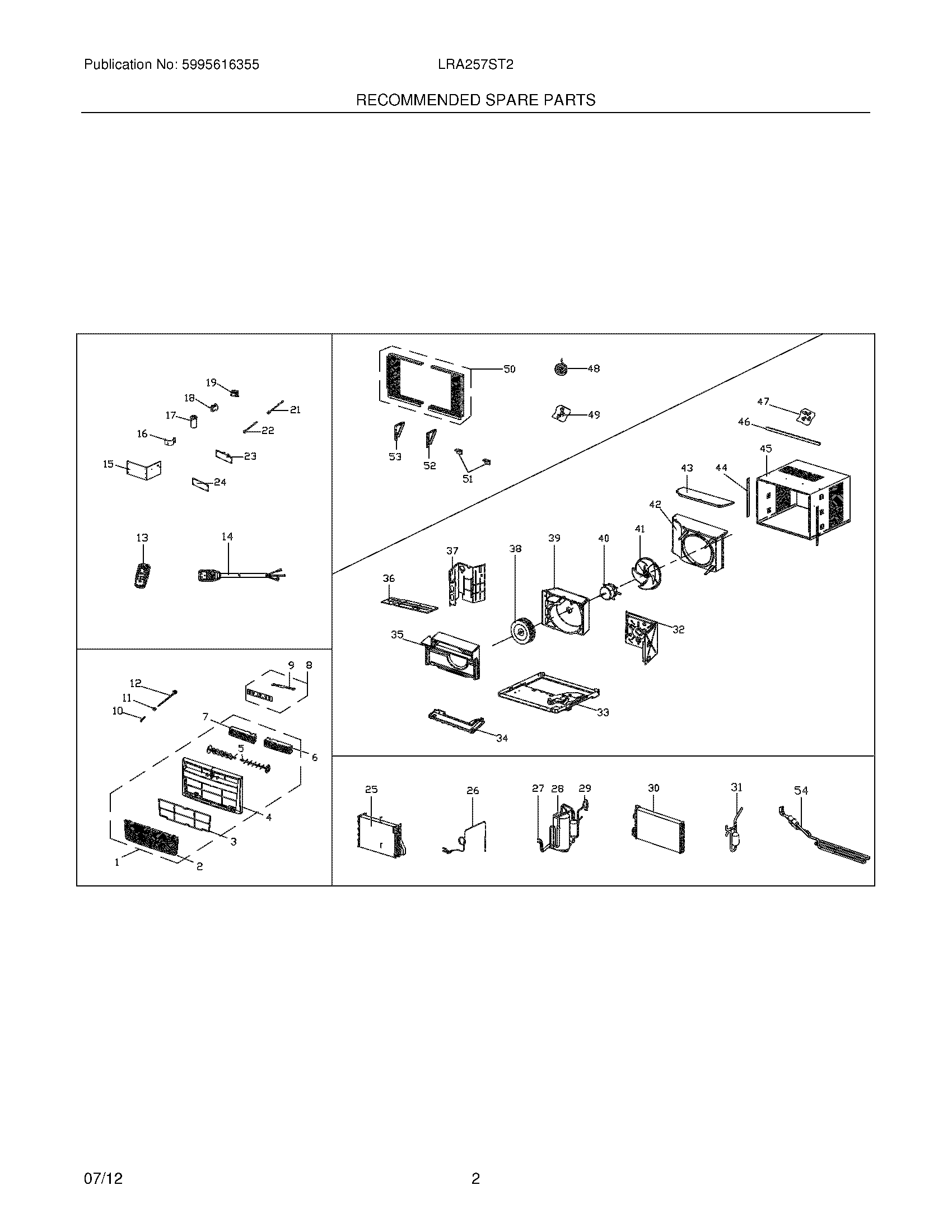

LRA257ST215 03 – RECOMMENDED SPARE PARTS

Products

PositionProduct
1Front Assembly,complete panel
2Panel,front grille ,tilt-out
3FILTER
4Frame,front assembly
55304477178 Frigidaire LOUVER
65304477179 Frigidaire LOUVER
7Louver,horizontal ,left
8PC BOARD, DISPLAY/INPUT
9· Wire,connector ,pc boards
10Handle,vent control
11WCI 5304476244
125304477149 Frigidaire Air Conditioner Door Assembly
13WCI 5304476866
14Power Cord,electric ,LCDI
15WCI 5304476248
16WCI 5304476249
17WCI 5304472621
185304482883 Frigidaire Air Conditioner Capacitor
195304471063 Frigidaire Air Conditioner Transformer
21Sensor,temperature ,ambient
225304512375 Frigidaire Air Conditioner Sensor
235304492070 Frigidaire Air Conditioner PC Board
24WCI 5304476251
25Evaporator,w/cap tube
26WCI 5304485986
27WCI 5304485987
285304475741 Frigidaire Air Conditioner Compressor
29WCI 5304485988
30WCI 5304485989
315304476257 Frigidaire Air Conditioner Filter Drier
32WCI 5304472351
33Base,unit chassis
34Tray,drip pan ,foam
35WCI 5304476259
36WCI 5304482506
37Bulkhead,partition ,front/left
385304472407 Frigidaire Air Conditioner Blower Wheel
39Scroll,blower housing ,rear
40WCI 5304472353
41BLADE-FAN
42Shroud,condenser/fan
43WCI 5304472354
44Retainer,shutter ,cabinet sides
45Cabinet,wrapper/sleeve
46Rail,shutter track ,top channel
47Screw Kit,top rail mount
48Seal kit,foam ,sash & rails
49Hardware,mounting ,screws/locks
50Window Filler Kit,slider panels ,accordion
51Bracket,sill angle
52Bracket,mounting ,right window
53Bracket,mounting ,left window
54Tube,condensate evap ,drain pan
