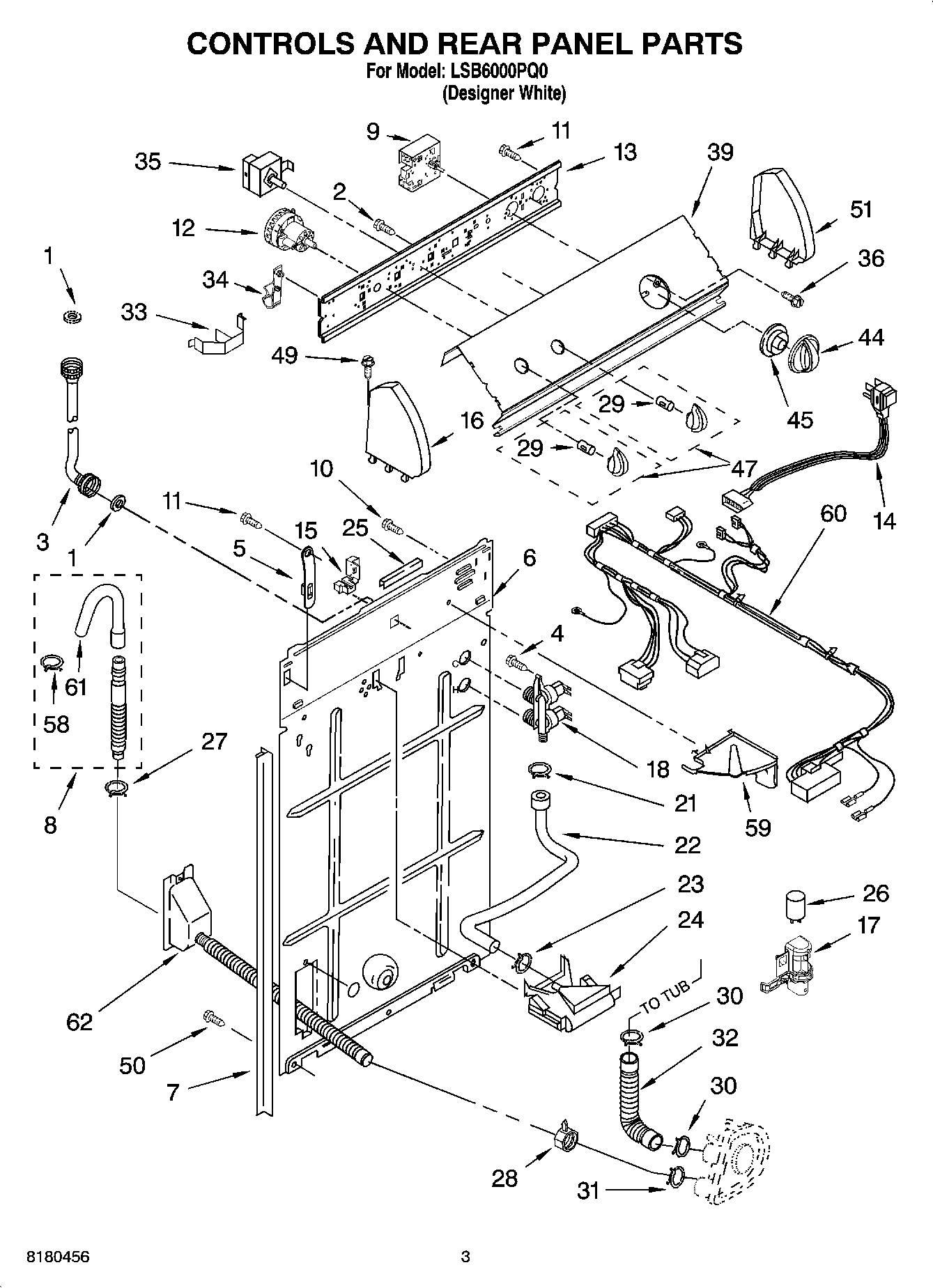

LSB6000PQ0 02 – CONTROLS AND REAR PANEL PARTS

LSB6000PQ0 02 – CONTROLS AND REAR PANEL PARTS

Written by

in

LSB6000PQ0 02 – CONTROLS AND REAR PANEL PARTS

Products

PositionProduct
1WP16123 Whirlpool Washer
23400073 Whirlpool Screw
3WP89503 Whirlpool Washer Fill Hose
4WP9740848 Whirlpool Dishwasher Screw
5WP8568314 Whirlpool Strap
6WP3357978 Whirlpool Rear Panel
7WP62747 Whirlpool Pad
8285702 Whirlpool Extensions
8285664 Whirlpool Drain Hose
8285666 Whirlpool Drain Hose 10'
9WP8546685 Whirlpool Timer
10WP3351614 Whirlpool Screw
11WP90767 Whirlpool Screw
12W10335056 Whirlpool Water Level Pressure Switch
13WP3948608 Whirlpool Bracket
14Cord, Power (Includes Illus. 15)
15Strain Relief, Power Cord
17Clip, Capacitor
18285805 Whirlpool Washer Water Inlet Valve
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3360977 Whirlpool Washer Tub Fill Nozzle
25Edge Protector
26CAPACITOR
27WP356138 Whirlpool Hose Clamp
28Clamp, Hose
29WP8536939 Whirlpool Spring Clip
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
33Clip, Harness & Pressure Hose
34Retainer, Harness
35WPW10168256 Whirlpool Temperature Switch
36WP3400818 Whirlpool Screw
39Panel, Console
44Knob, Timer (White)
45WP8544947 Whirlpool Dial
47WPL 8544935
49WP388326 Whirlpool Screw
50WP3390631 Whirlpool Screw
51W10820038 Whirlpool Endcap
58WP3357331 Whirlpool Clamp
59WPL 8539874
60Wiring Harness (For Detail See
61WP3357027 Whirlpool Nozzle Assembly
62WPW10358149 Whirlpool Hose
