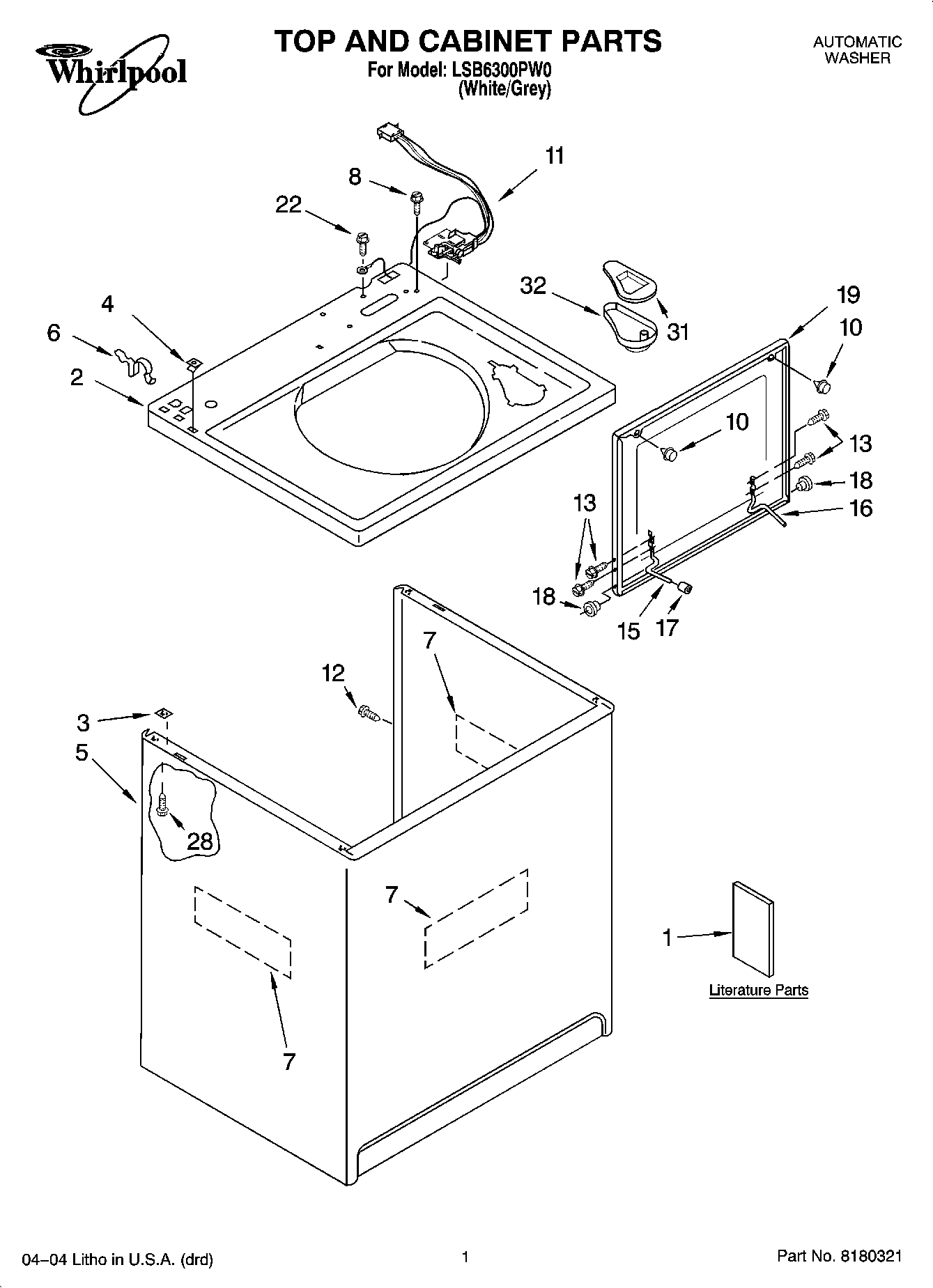

LSB6300PW0 01 – TOP AND CABINET PARTS

LSB6300PW0 01 – TOP AND CABINET PARTS

Written by

in

LSB6300PW0 01 – TOP AND CABINET PARTS

Products

PositionProduct
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Literature Parts (Wiring Diagram)
1Literature Parts (Energy Guide)
1Literature Parts (Feature Sheet)
1Literature Parts (Installation Instructions)
1Literature Parts (Use & Care Guide)
1Manual, (Washer) Do-It-Yourself
2Top (White)
3WP62750 Whirlpool Spacer
4WP357213 Whirlpool Hinge Stopper
563424 Whirlpool Cabinet Assembly
6WP62780 Whirlpool Cabinet Clip
7Cabinet – Sound Damper
8Screw, Lid Switch (2)
10WP9724509 Whirlpool Bumper
11WP8054980 Whirlpool Lid Switch Assembly
12WP308685 Whirlpool Microwave Screw
13SCREW
15Hinge, Lid (L.H.)
16Hinge, Lid (R.H.)
17Bumper, Lid Hinge
18Bearing, Lid Hinge (2)
19Lid (White)
22WP3351614 Whirlpool Screw
28WP3390631 Whirlpool Screw
31Cover, Dispenser
32Dispenser, Bleach
