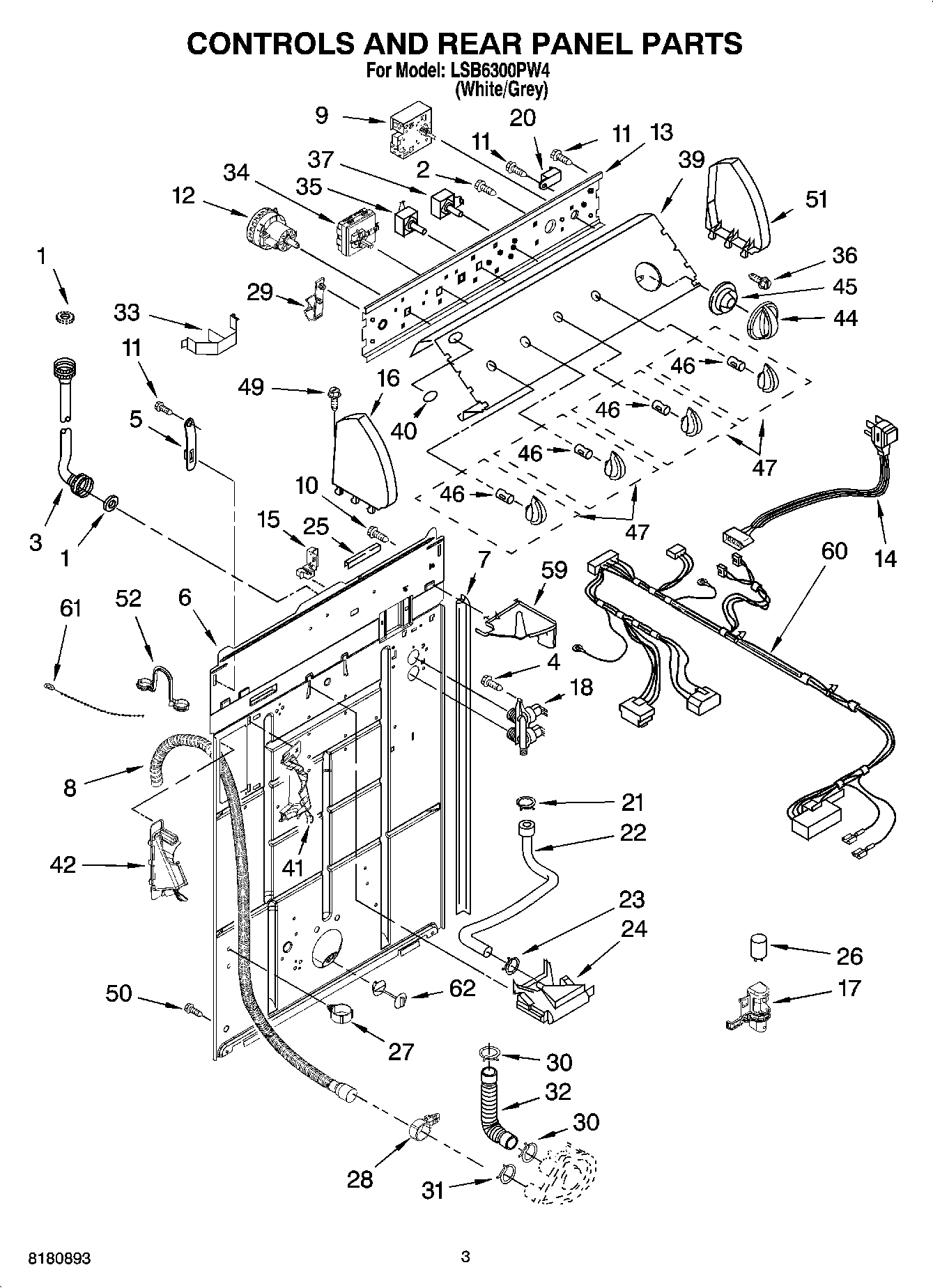

LSB6300PW4 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	WP16123 Whirlpool Washer
2	3400073 Whirlpool Screw
3	WP89503 Whirlpool Washer Fill Hose
3	FILL HOSE 5' W/WASHER
4	WP9740848 Whirlpool Dishwasher Screw
5	WP8568314 Whirlpool Strap
6	Panel, Rear
7	WP62747 Whirlpool Pad
9	WP8557301 Whirlpool Timer
10	WP3351614 Whirlpool Screw
11	WP90767 Whirlpool Screw
12	W10339326 Whirlpool Washer Water Level Switch
13	Bracket, Control
14	Cord, Power (Includes Illus. 15)
15	Strain Relief, Power Cord
17	Clip, Capacitor
18	WP3979346 Whirlpool Water Inlet Valve
20	WP694419 Whirlpool Buzzer Adjuster
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
25	Edge Protector
26	CAPACITOR
27	Clamp, Hose
28	8541668 Whirlpool Washer Clamp
29	Retainer, Harness
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	Clip, Harness & Pressure Hose
34	Switch, Water Temperature (ATC)
35	WPW10168257 Whirlpool Cycle Switch
36	WP3400818 Whirlpool Screw
37	W10851055 Whirlpool Cycle Switch
39	Panel, Console (Includes Item 40)
40	WPL 3400985
41	(Left Half)
42	(Right Half)
42	WPW10096921 Whirlpool Hose
44	Kn
45	WP8544947 Whirlpool Dial
46	WP8536939 Whirlpool Spring Clip
47	WPL 8544937
49	WP388326 Whirlpool Screw
50	WP3390631 Whirlpool Screw
51	W10820038 Whirlpool Endcap
52	WP8577378 Whirlpool Retainer
59	WPL 8539874
60	WPL 3957274
61	WPW10339879 Whirlpool Wire Tie
62	WP8519200 Whirlpool Support Assembly
62	Miscellaneous Parts Bag
62	WPL ARI157187A
