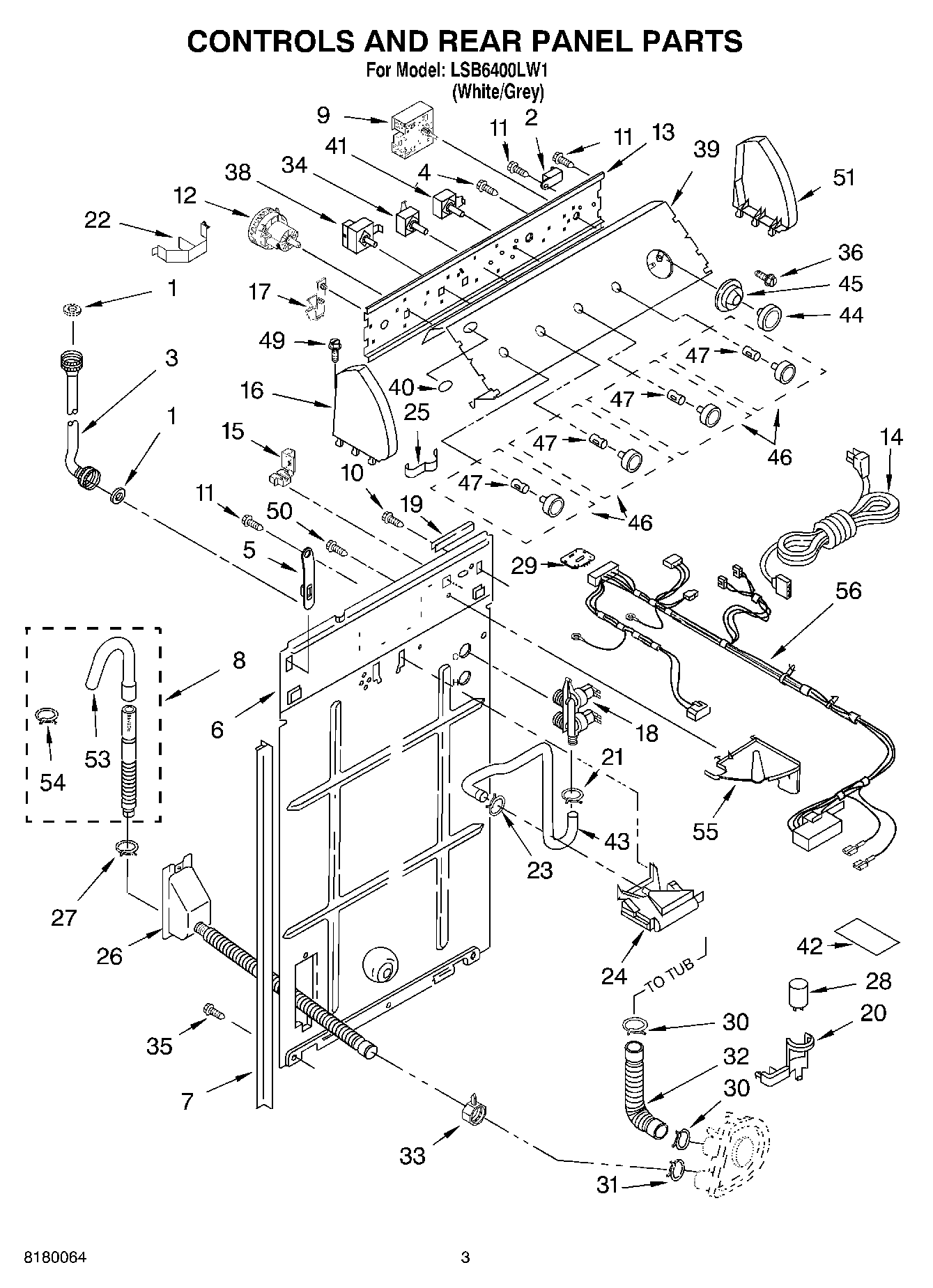

LSB6400LW1 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	WP16123 Whirlpool Washer
2	WP694419 Whirlpool Buzzer Adjuster
3	WP89503 Whirlpool Washer Fill Hose
4	3400073 Whirlpool Screw
5	WP8568314 Whirlpool Strap
6	WP3357978 Whirlpool Rear Panel
7	WP62747 Whirlpool Pad
8	285702 Whirlpool Extensions
8	285664 Whirlpool Drain Hose
8	285666 Whirlpool Drain Hose 10'
9	WP8541270 Whirlpool Timer
10	WP3351614 Whirlpool Screw
11	WP90767 Whirlpool Screw
12	W10335056 Whirlpool Water Level Pressure Switch
13	WP3948608 Whirlpool Bracket
14	Cord, Power (Includes Illus. 15)
15	Strain Relief, Power Cord
17	Retainer, Harness
18	WP3979346 Whirlpool Water Inlet Valve
19	Edge Protector
20	Clip, Capacitor
21	WP596669 Whirlpool Hose Clamp
22	Clip, Harness & Pressure Hose
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
25	8528351 Whirlpool Clip
26	WPW10358151 Whirlpool Hose
27	WP356138 Whirlpool Hose Clamp
28	WP8572720 Whirlpool Capacitor
29	Control, ATC
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	Clamp, Hose
34	WPW10168257 Whirlpool Cycle Switch
35	WP3390631 Whirlpool Screw
36	WP3400818 Whirlpool Screw
38	W10168360 Whirlpool Temperature Switch
39	Panel, Console (Includes Item 40)
40	Medallion
41	W10851055 Whirlpool Cycle Switch
42	Shield, Capacitor
43	HOSE
44	WP8538949 Whirlpool Knob
45	WP8538955 Whirlpool Dial
46	KNOB
47	WP8536939 Whirlpool Spring Clip
49	WP388326 Whirlpool Screw
50	WP9740848 Whirlpool Dishwasher Screw
51	W10820038 Whirlpool Endcap
53	WP3357027 Whirlpool Nozzle Assembly
54	WP3357331 Whirlpool Clamp
55	WPL 8539874
56	WPL 3956523
