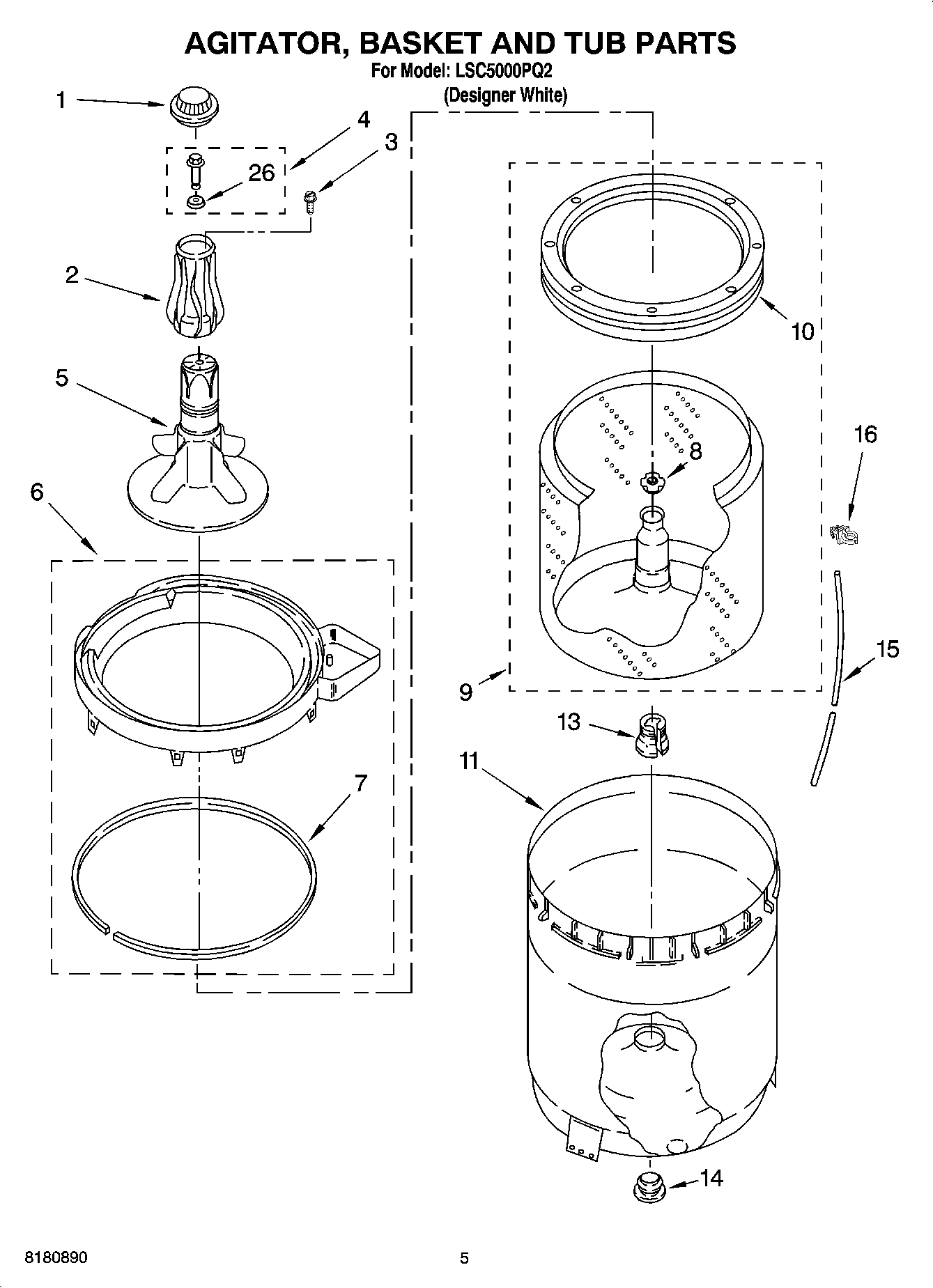

LSC5000PQ2 03 – AGITATOR, BASKET AND TUB PARTS

LSC5000PQ2 03 – AGITATOR, BASKET AND TUB PARTS

Written by

in

LSC5000PQ2 03 – AGITATOR, BASKET AND TUB PARTS

Products

PositionProduct
1WP3355758 Whirlpool Agitator Cap
2Filter, Manual
3WPW10109200 Whirlpool Screw
4WP358237 Whirlpool Agitator Bolt
5Agitator
6W10880720 Whirlpool Tub Ring
7WP3976308 Whirlpool Tub Seal
8WP21366 Whirlpool Spanner Nut
9W10389329 Whirlpool Microwave Basket
10WP387240 Whirlpool Balance Ring
1163849 Whirlpool Outer Tub Primary Assembly
13WP389140 Whirlpool Drive Block or Bell
14W10814296 Whirlpool Washer Center Post Seal Gasket
15WP353244 Whirlpool Hose
162219077 Whirlpool Refrigerator Clip
26WP3949550 Whirlpool Gasket Assembly
