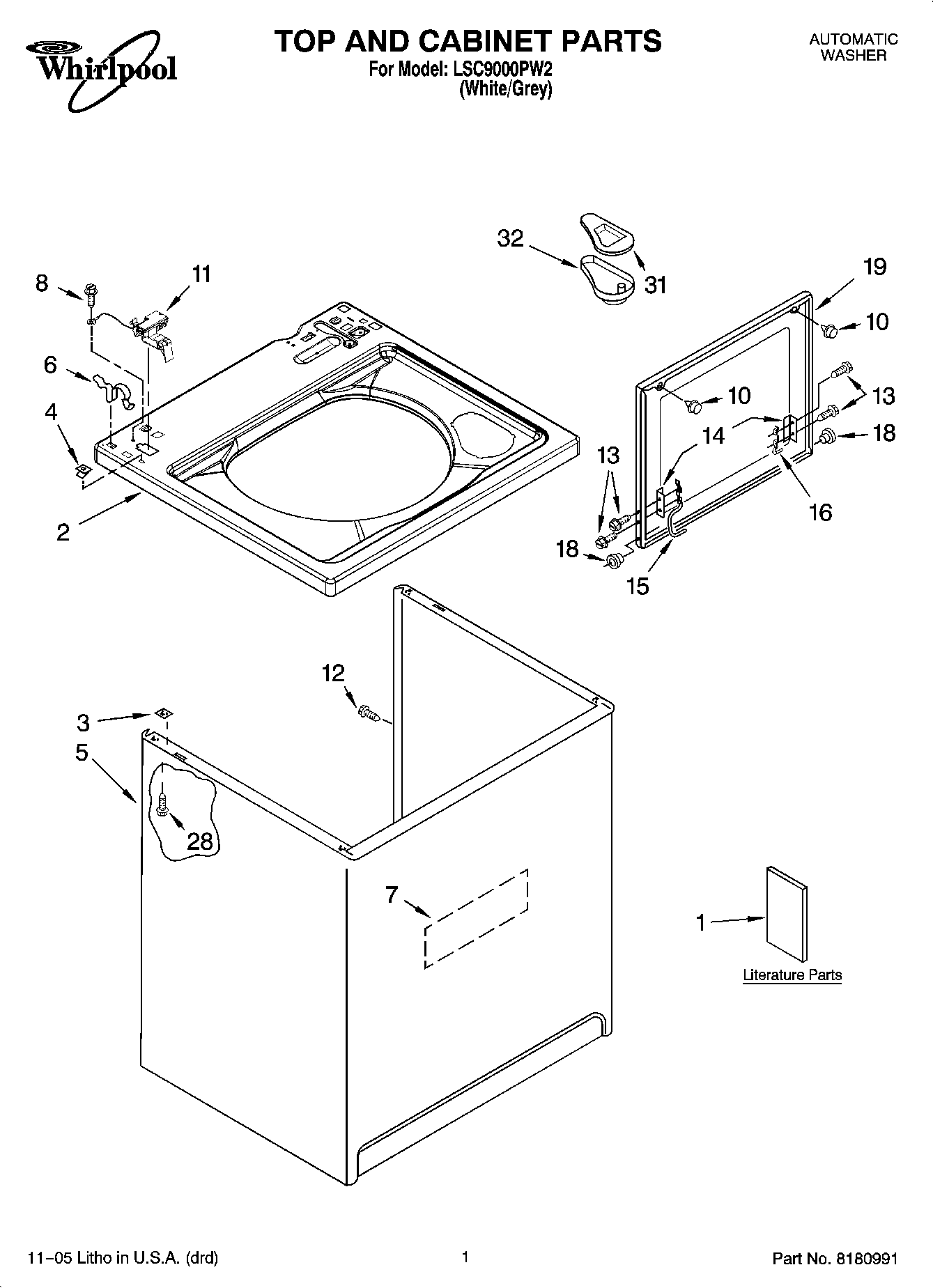

LSC9000PW2 01 – TOP AND CABINET PARTS

Products

PositionProduct
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Wiring Diagram
1Manual, Washer Do-It-Yourself
1Use & Care Guide
1Energy Guide
1Feature Sheet
1Installation Instructions
2Top
3WP62750 Whirlpool Spacer
4WP357213 Whirlpool Hinge Stopper
563424 Whirlpool Cabinet Assembly
6WP62780 Whirlpool Cabinet Clip
7Cabinet – Sound Damper
8WP3351614 Whirlpool Screw
10WP9724509 Whirlpool Bumper
11WP8318084 Whirlpool Washer Lid Switch Assembly
12WP308685 Whirlpool Microwave Screw
13SCREW
14WP21097 Whirlpool Pad
15Hinge, Lid (L.H.)
16WP91770 Whirlpool Hinge
18Bearing, Lid Hinge (2)
19Lid (White)
28WP3390631 Whirlpool Screw
31Cover, Dispenser
32Dispenser, Bleach
