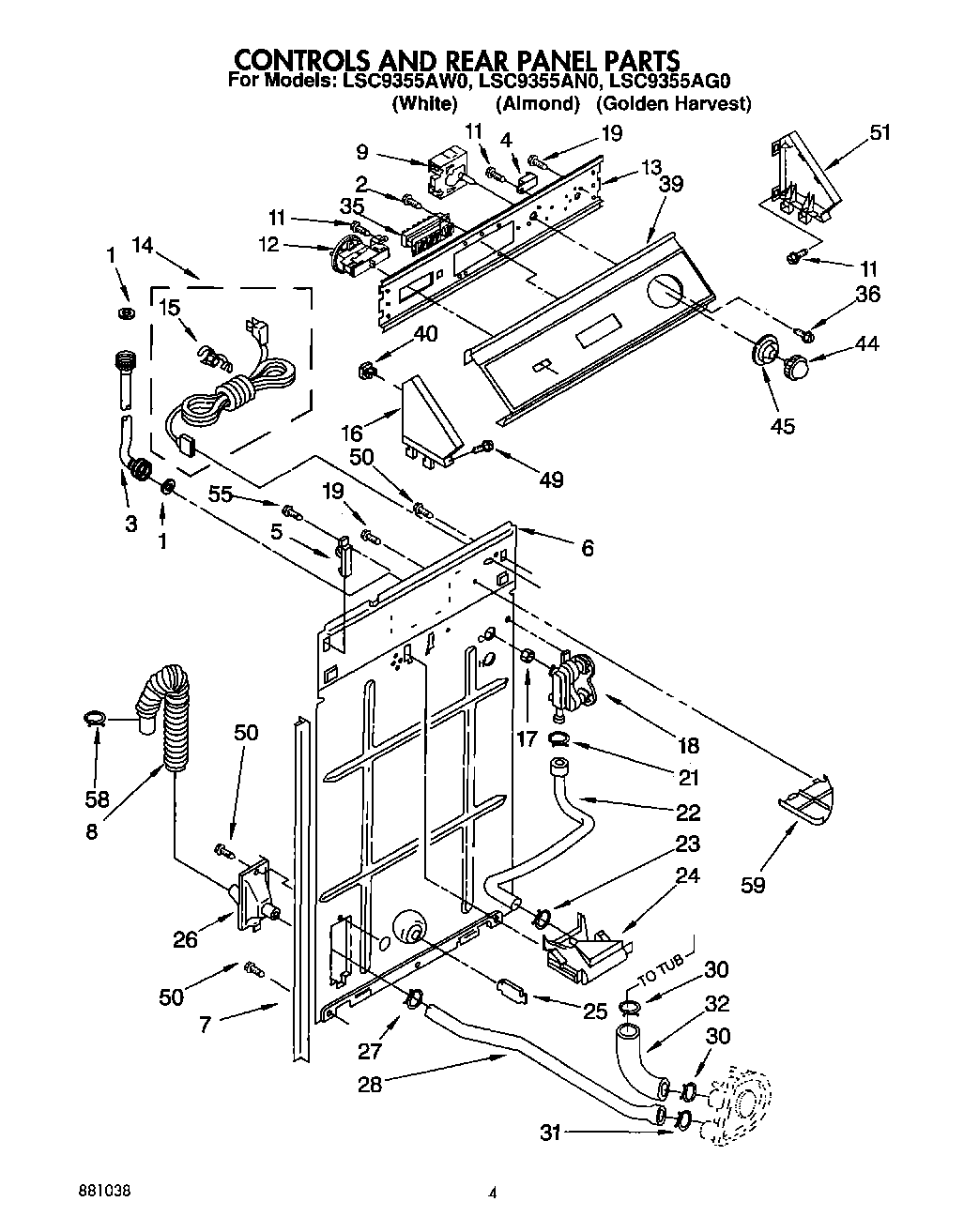

LSC9355AN0 02 – CONTROLS AND REAR PANEL

Products

Position	Product
1	WP16123 Whirlpool Washer
2	Screw, 8-18 x 7/8
3	WP89503 Whirlpool Washer Fill Hose
3	Hose, Water Inlet (2) (Alt.)
4	WP694419 Whirlpool Buzzer Adjuster
5	Hinge, Console (2)
6	WP3357978 Whirlpool Rear Panel
7	WP62747 Whirlpool Pad
8	285664 Whirlpool Drain Hose
8	285666 Whirlpool Drain Hose 10'
9	Timer, Control (60 Hz.) (Motor Not A Service Part)
11	WPW10139210 Whirlpool Screw
12	Switch, Water Level (For White And Almond Models)
13	Bracket, Control
14	Cord, Power
15	Strain Relief, Power Cord
16	Cap, End (L.H.) (Almond)
16	Cap, End (L.H.) (White)
17	WP96160 Whirlpool Washer Inlet Valve Screen
18	285805 Whirlpool Washer Water Inlet Valve
19	WP3351614 Whirlpool Screw
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
25	WP8519200 Whirlpool Support Assembly
26	WPW10358149 Whirlpool Hose
27	WP356138 Whirlpool Hose Clamp
28	WP3348552 Whirlpool Hose
30	WP371502 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
35	Switch, Touch-Pad (7) (For Almond Model)
36	WP356418 Whirlpool Screw
39	Panel, Console (For Almond Model)
39	Panel, Console (For White Model)
40	WP689559 Whirlpool Nut
44	WP3364293 Whirlpool Timer Knob
45	280193 Whirlpool Timer Knob
49	WP388326 Whirlpool Screw
50	WP3390631 Whirlpool Screw
51	Cap, End (R.H.) (White)
51	Cap, End (R.H.) (Almond)
55	WP308685 Whirlpool Microwave Screw
58	WP3357331 Whirlpool Clamp
59	WPL 3348424
