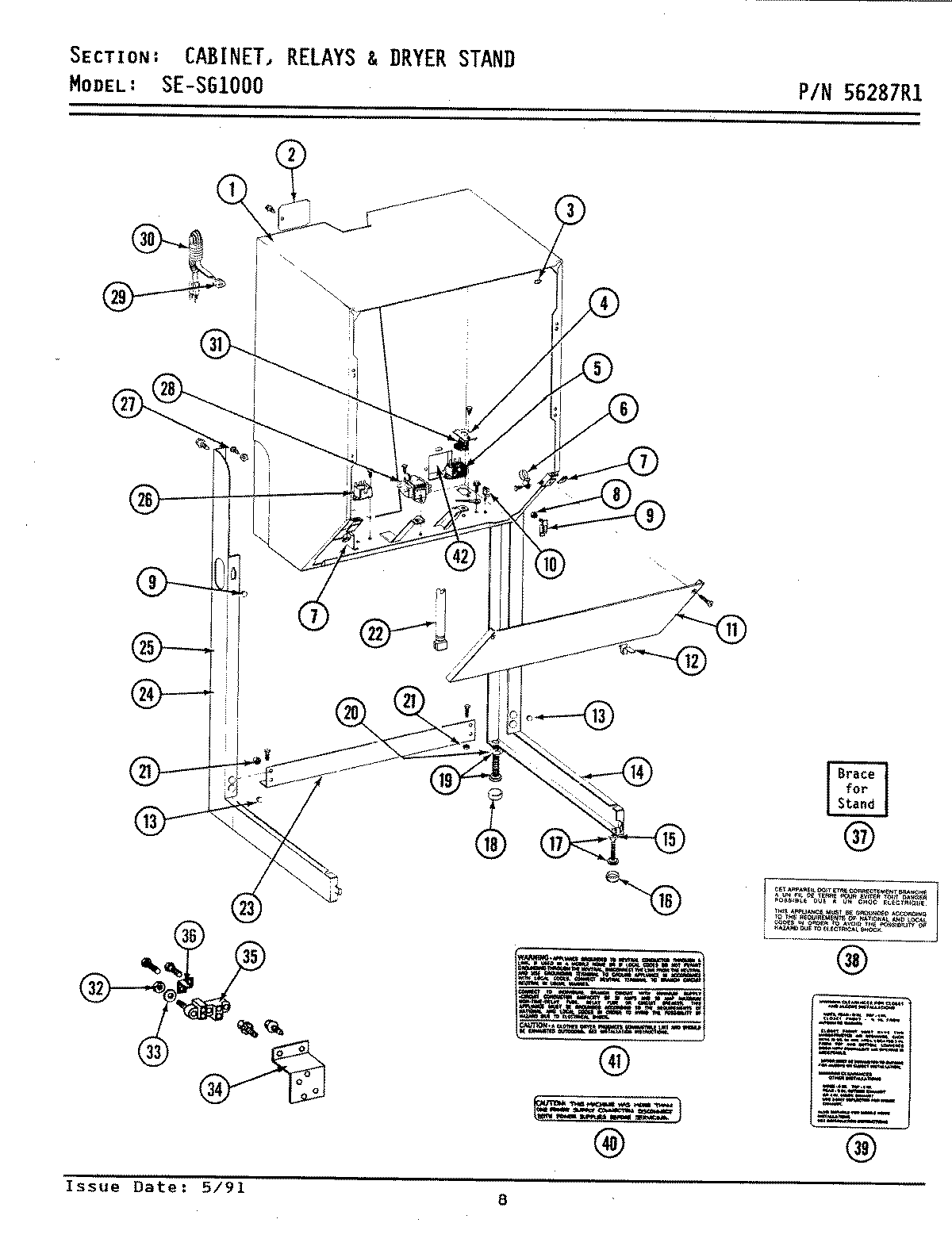

LSE1000 04 – CABINET, RELAYS & DRYER STAND

Products

Position	Product
1	MAY 306641L
2	MAY 314470
3	MAY 312548
4	MAY 314532
5	MAY 306199
6	MAY 212458
7	MAY 215075
8	MAY 214872
9	MAY 314489
10	MAY Y313262
11	MAY 314477
11	MAY 306072L
12	MAY 314482
13	MAY 314498
14	MAY 306073L
15	WP62739 Whirlpool Nut
16	WPY314137 Whirlpool Rubber Foot
17	W10176519 Whirlpool Leveling Feet
18	WP210684 Whirlpool Dishwasher Leveling Leg Pad
19	LEG, ADJUSTABLE (W/NUT)—S
20	WP210385 Whirlpool Lock Nut
21	Y052721 Whirlpool Nut
22	MAY 306717
22	MICROPROCESSOR WIRE HARNESS
23	MAY 214354
23	MAY 314499
24	MAY 306074L
25	MAY 314663
25	MAY 306110L
26	MAY 901961
26	WP3177991 Whirlpool Screw
27	MAY 303846
28	MAY 212276
28	MAY 306062
29	MAY 314507
30	MAY 305168
31	WPW10139210 Whirlpool Screw
31	MAY 314522
32	WP112432 Whirlpool Nut Assembly
33	WPY311270 Whirlpool Washer TE
34	PART NOT USED
34	MAY Y310632
35	SCREW, No.10-24 X 3/4 INCH—–O
35	PART NOT USED
36	PART NOT USED
37	MAY 306128
38	INSTRUCTION LABEL
39	MAY 314486
40	MAY 314609
41	MAY 314505
42	MAY 315275
42	MAY Y313561
