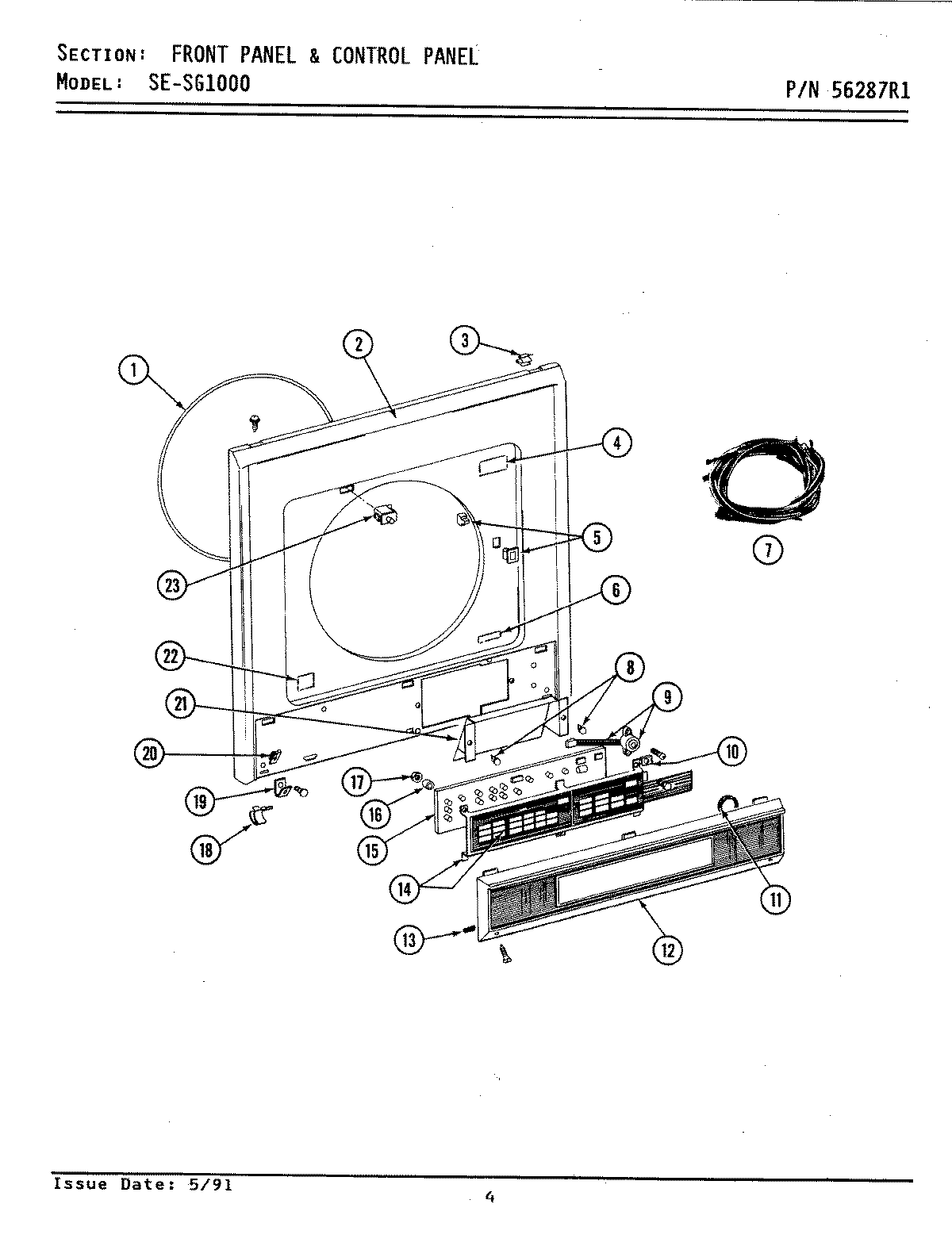

LSE1000 08 – FRONT PANEL & CONTROL PANEL

Products

Position	Product
2	MAY 314474L
2	WP1163283 Whirlpool Air Conditioner Screw
3	MAY Y310376
4	MAY Y313927
5	306436 Whirlpool Washer Dryer Door Catch and Plastic Strike
6	MAY 314609
7	MAY 306169
7	MICROPROCESSOR WIRE HARNESS
7	MAY 306079
7	MAY 306717
7	MAY Y307135
7	MAY 307134
7	MAY Y312953
7	CABLE STRAP-HARNESS TO BASE
8	MAY 314523
9	MAY 306070
9	SCREW, BUSHINGS
10	MAY 912086
11	MAY 314561
12	MAY 210932
12	MAY 306388
13	MAY 314560
14	MAY 306292
15	MAY 306069
16	MAY 912075
17	M0282005 Whirlpool Nut
18	MAY 314482
19	MAY 314481
19	WP90767 Whirlpool Screw
20	MAY 215075
21	MAY 314517
22	MAY 314486
23	W10169313 Whirlpool Door Switch Kit
