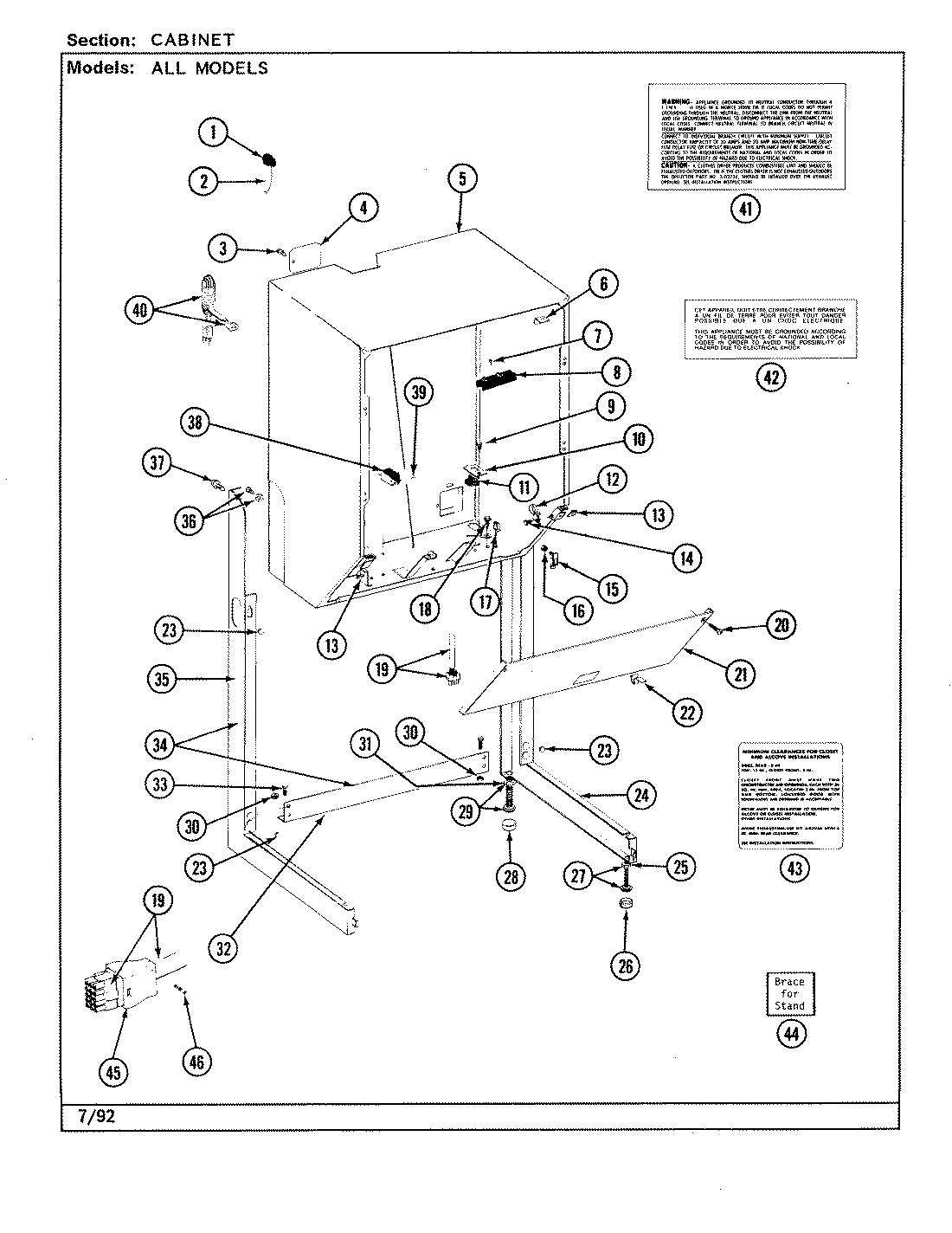

LSE2700W-C 05 – CABINET

Products

Position	Product
3	MAY Y313561
4	MAY 314470
5	MAY 308055
6	MAY 312548
8	PART NOT USED
10	MAY 314532
11	MAY 215948
12	MAY 315264
13	MAY 215075
14	MAY Y310632
15	MAY 314489
16	MAY 214872
17	MAY Y313262
18	WP489399 Whirlpool Refrigerator Screw
19	MAY 208212
20	MAY 314477
21	MAY 307844
22	MAY 314482
23	MAY 314498
24	MAY 306073
25	WP62739 Whirlpool Nut
26	WPY314137 Whirlpool Rubber Foot
27	W10176519 Whirlpool Leveling Feet
28	WP210684 Whirlpool Dishwasher Leveling Leg Pad
29	LEG, ADJUSTABLE (W/NUT)—S
30	Y052721 Whirlpool Nut
31	WP210385 Whirlpool Lock Nut
32	MAY 314499
33	MAY 214354
34	MAY Y306110
35	MAY 306074
36	MAY 303846
37	MAY 314663
38	WP694419 Whirlpool Buzzer Adjuster
39	WPW10139210 Whirlpool Screw
40	MAY 305168
42	INSTRUCTION LABEL
43	MAY 314486
44	MAY 306128
46	MAY 215953
