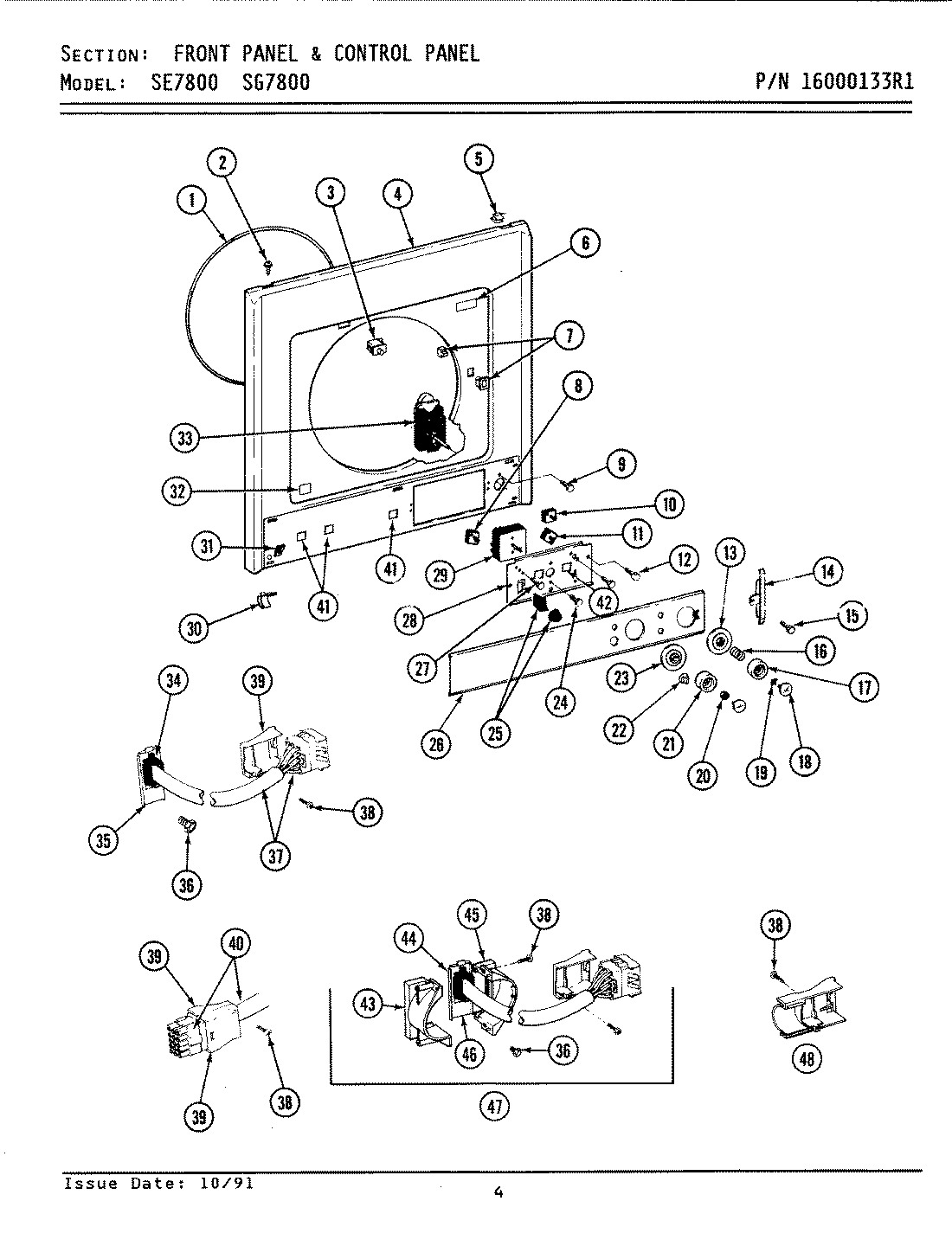

LSE7800 07 – FRONT PANEL & CONTROL PANEL
Written by
in
LSE7800 07 – FRONT PANEL & CONTROL PANEL
Products
Position
Product
2
WP1163283 Whirlpool Air Conditioner Screw
3
W10169313 Whirlpool Door Switch Kit
4
MAY 315261L
5
MAY Y310376
6
MAY Y313927
7
306436 Whirlpool Washer Dryer Door Catch and Plastic Strike
8
MAY 308017
9
WP3400014 Whirlpool Dishwasher Screw
10
MAY 207782
11
MAY 207800
12
WP90767 Whirlpool Screw
13
MAY 207794
14
END CAP,CONTROL PANEL (BLK)
15
WP8281227 Whirlpool Screw
16
WP211065 Whirlpool Timer Spring
17
MAY 215828
18
MAY 215821
19
MAY 211605
20
W10155650 Whirlpool Nut
21
MAY 315041
22
MAY 308035
23
MAY 308032
26
CONTROL PANEL
27
MAY 215952
28
MAY 315237
29
MAY Y308022
30
MAY 314482
31
MAY 314748
32
MAY 314486
33
MAY 207783
34
MAY 215948
35
MAY 315260
36
WPW10139210 Whirlpool Screw
37
MAY 308338
37
MAY Y308018
37
MAY 308339
37
MAY 207786
37
WIRE HARNESS – CANADA
38
MAY 215953
39
MAY 215960
40
MAY 207784
41
MAY 315286
42
MAY 315287
43
MAY Y216007
44
MAY 216002
45
MAY Y216006
46
MAY 216008
47
MAY 207941
48
MAY Y216003
←
