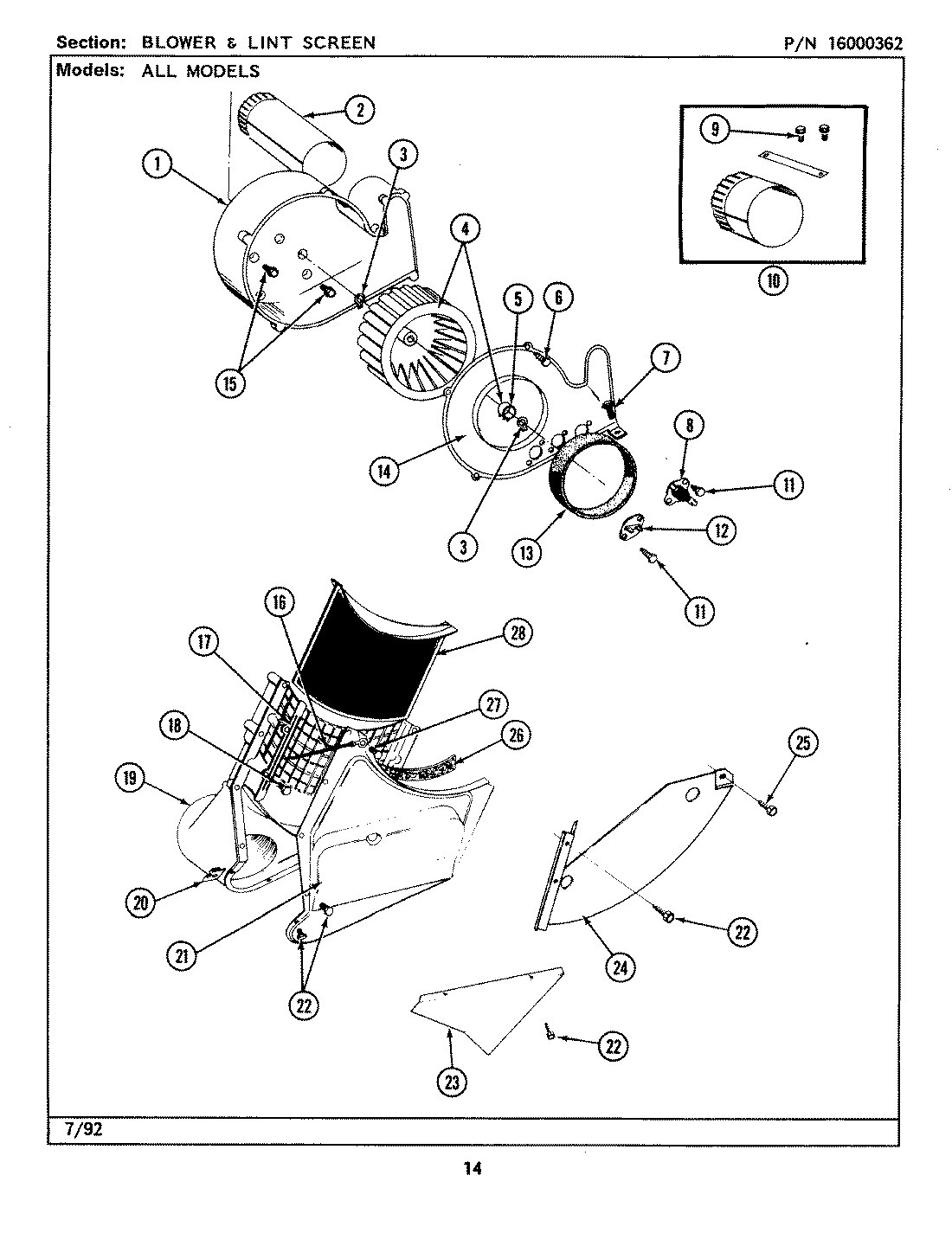

LSE7800ACE 03 – BLOWER & LINT SCREEN (LSE7800ACE,DE,EE)

LSE7800ACE 03 – BLOWER & LINT SCREEN (LSE7800ACE,DE,EE)

Written by

in

LSE7800ACE 03 – BLOWER & LINT SCREEN (LSE7800ACE,DE,EE)

Products

PositionProduct
1MAY Y312893
2MAY 306637
3WP9703438 Whirlpool Snap Retaining Ring
4Y303836 Whirlpool Dryer Blower Wheel
5WP312967 Whirlpool Clamp
7MAY Y313561
8MAY Y308037
108544761A Whirlpool Exhaust Extension
11WP90767 Whirlpool Screw
12WP306604 Whirlpool Cut-off
13WPY312901 Whirlpool Blow Seal
14MAY 314846
15MAY Y310632
16MAY 901220
17MAY Y313795
19MAY 314801
20MAY 315274
21MAY 314485
23MAY 315239
24MAY 315238
25MAY 310207
26MAY Y313796
27MAY 310557
27WPW10116751 Whirlpool Screw
28MAY Y306666
