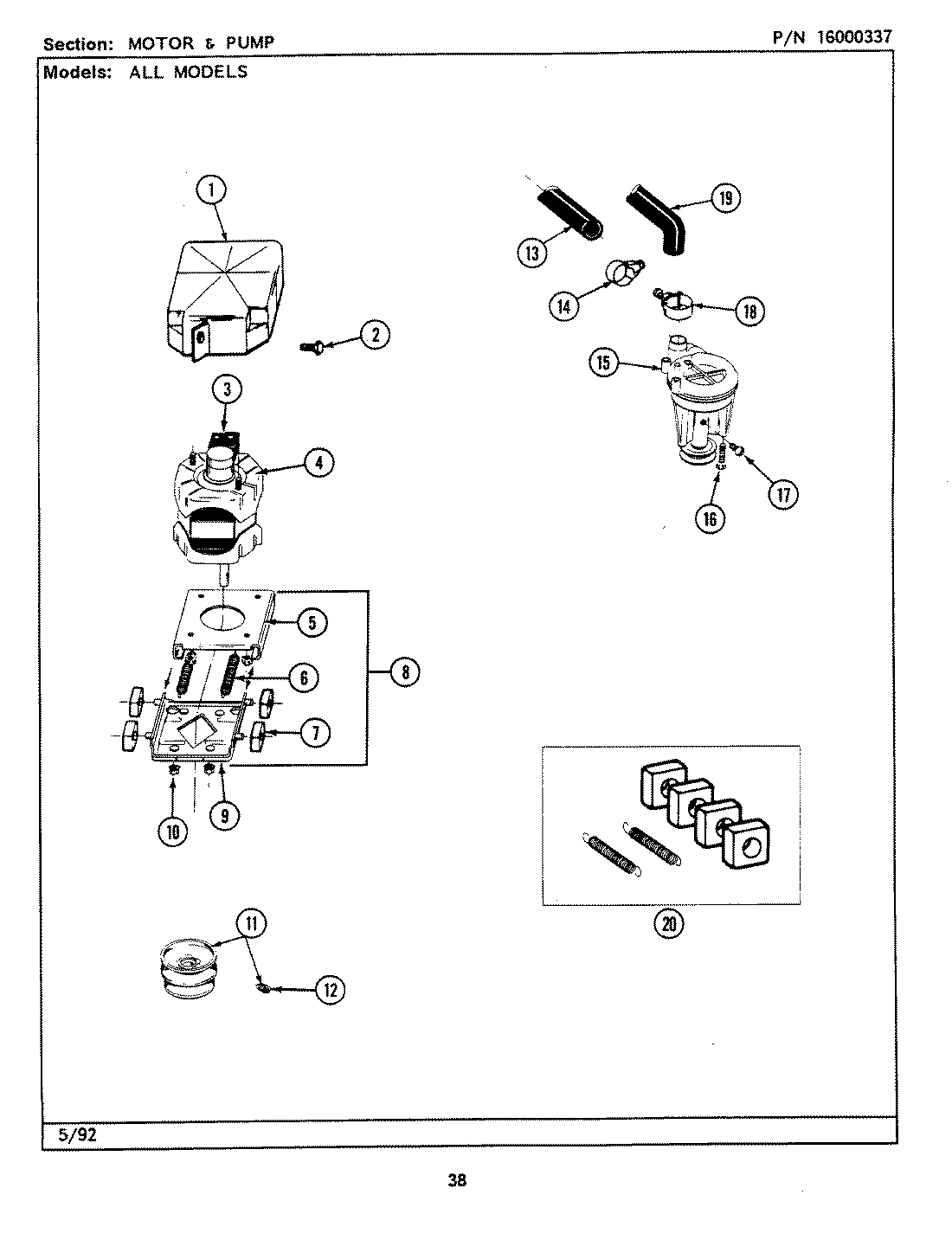

LSE7800AEL 12 – MOTOR & PUMP (LSE7800AEL,AEW)

LSE7800AEL 12 – MOTOR & PUMP (LSE7800AEL,AEW)

Written by

in

LSE7800AEL 12 – MOTOR & PUMP (LSE7800AEL,AEW)

Products

PositionProduct
1MAY 215098
2WPW10346892 Whirlpool Screw
3SWITCH, MOTOR START PROD. NO. 2-1664-4, 2-1664-9, 2-1664-10
32-1664-11 AND 2-5463-1
32-1664-8 AND 2-5463
412002351 Whirlpool Washer Drive Motor and Jumper Kit 1 Speed 1/2 HP
5MAY 214956
6202718 Whirlpool Tension Spring
7205000 Whirlpool Motor Spring and Guide Kit
8MAY 205999
9MAY 205908
10WP3400029 Whirlpool Dishwasher Nut
11MAY 200816
12MAY Y053241
13WP22001448 Whirlpool Drain Pump Hose
14MAY 200461
15MAY 202203
16WPY014874 Whirlpool Screw
17MAY Y015408
18WP285655 Whirlpool Hose Clamp
19WP213045 Whirlpool Dishwasher Tub to Pump Hose
