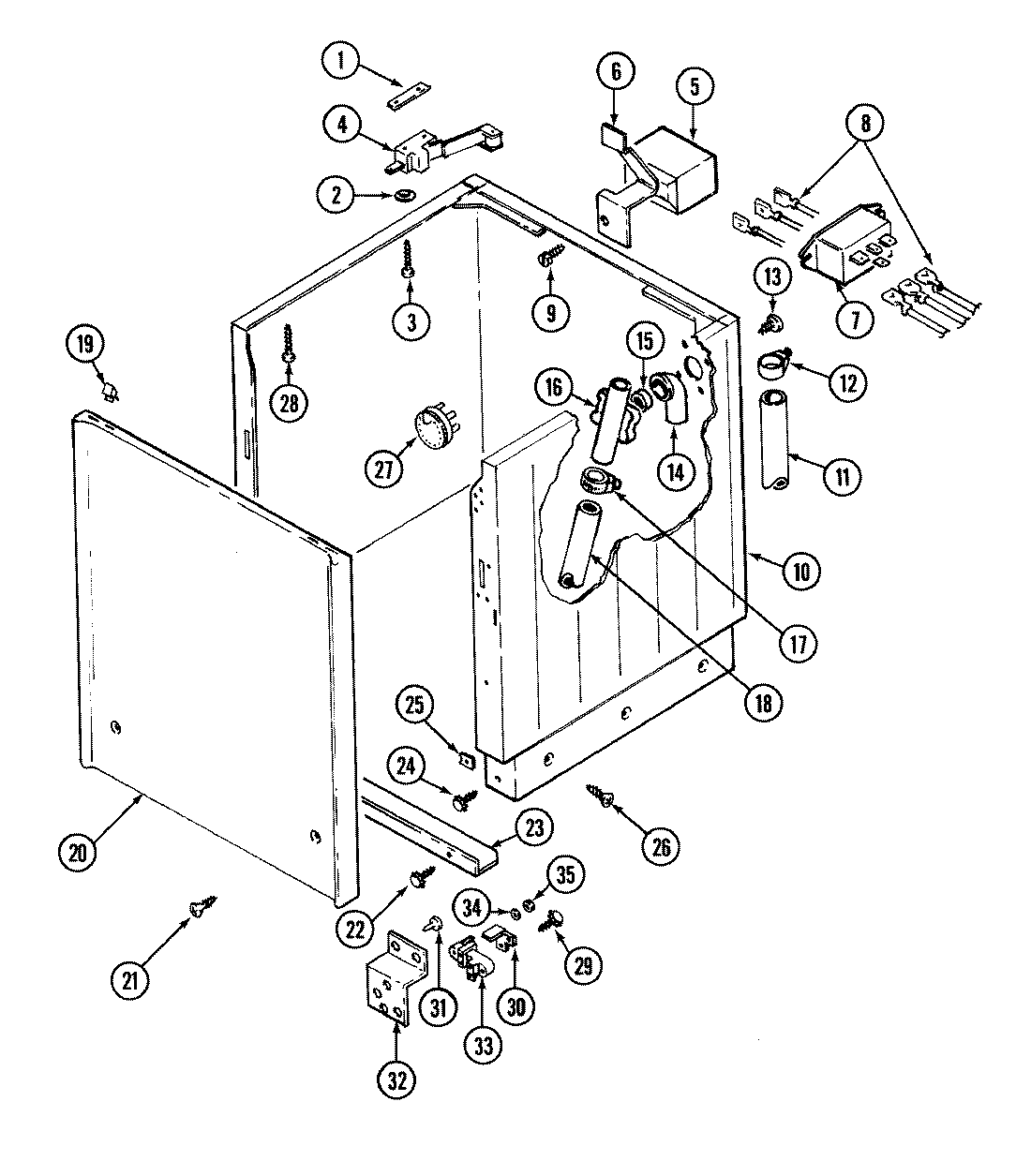

LSE7800AGE 04 – CABINET

Products

Position	Product
1	MAY 210866
2	MAY 211500
3	MAY 213501
4	MAY 202476
5	MAY 208234
6	SPRING CLIP
7	MAY 208227
8	MAY 208232
9	SCREW, BUSHINGS
10	MAY 207207
11	MAY 216017
12	MAY 200908
13	WPY014874 Whirlpool Screw
14	WPW10116738 Whirlpool Elbow Connector
15	WP214765 Whirlpool Gasket
16	206638 Whirlpool Break Siphon Connector Kit
17	WP285655 Whirlpool Hose Clamp
18	WP22001448 Whirlpool Drain Pump Hose
19	MAY 215711
20	MAY 207205
21	WP22001496 Whirlpool Screw
22	WP90767 Whirlpool Screw
23	MAY 213846
24	WP27001200 Whirlpool Screw
25	MAY 213280
26	213007 Whirlpool Screw #12
27	MAY 207787
28	MAY 214354
29	SCREW, No.10-24 X 3/4 INCH—–O
30	PART NOT USED
31	MAY Y310632
32	PART NOT USED
32	MAY Y313561
33	PART NOT USED
34	WPY311270 Whirlpool Washer TE
35	WP112432 Whirlpool Nut Assembly
