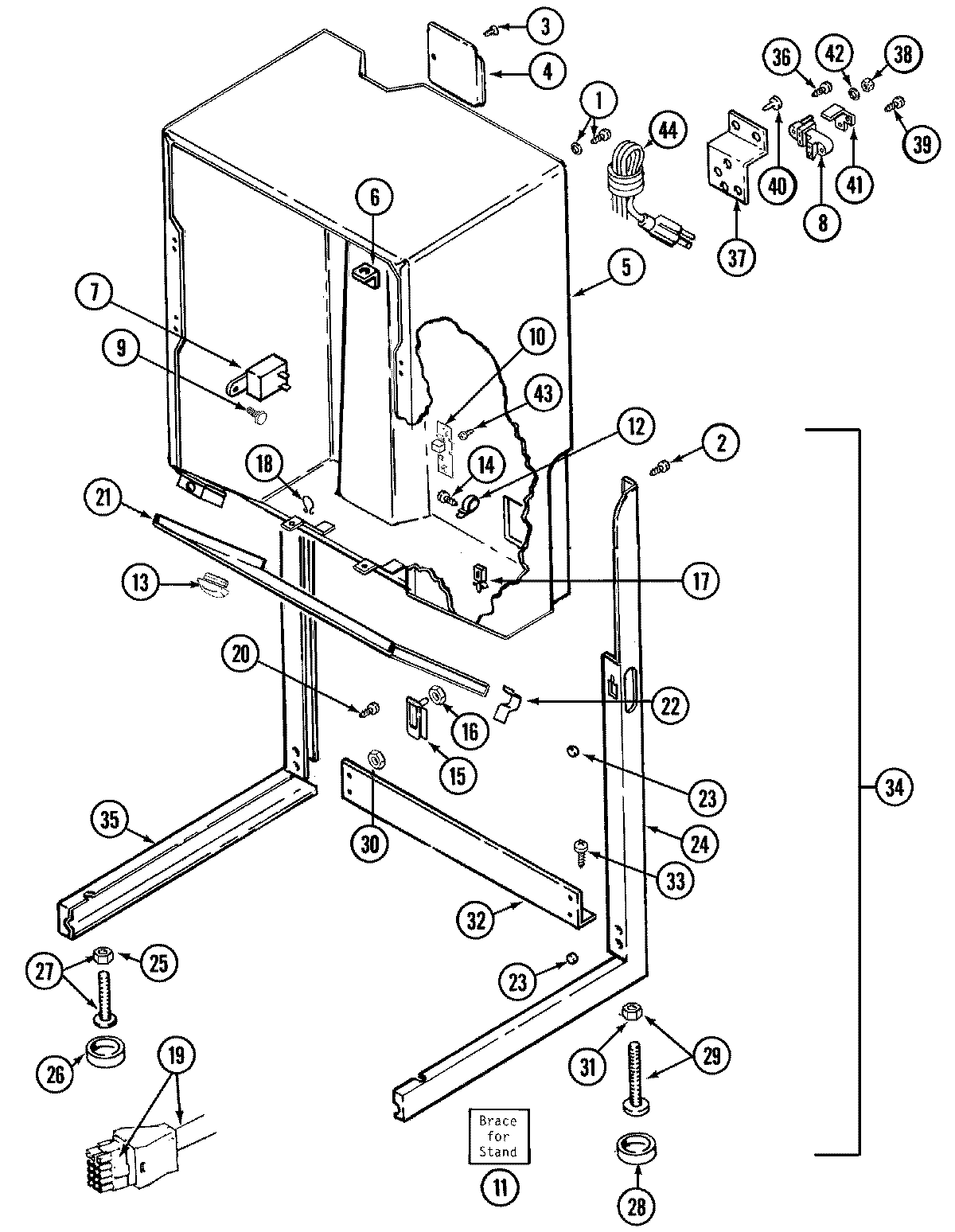

LSE7804ADE 03 – CABINET-DRYER

Products

Position	Product
1	MAY 303846
2	MAY 314663
3	MAY Y313561
4	MAY 314470
5	MAY 308055
6	MAY 312548
7	MAY Y308205
8	PART NOT USED
9	WPW10139210 Whirlpool Screw
10	WP33001212 Whirlpool Electronic Control Board
11	MAY 306128
12	MAY 315264
13	MAY 22001010
15	MAY 314489
16	MAY 214872
17	MAY Y313262
18	MAY 315471
19	MAY 33001368
19	MAY 33001041
19	MAY 22001426
19	MAY 22001270
19	MAY 33001553
20	MAY 314477
21	MAY 33001130
21	MAY 33001050
22	MAY 314482
23	MAY 314498
24	MAY 33001293
25	WP62739 Whirlpool Nut
26	WPY314137 Whirlpool Rubber Foot
27	W10176519 Whirlpool Leveling Feet
28	WP210684 Whirlpool Dishwasher Leveling Leg Pad
29	LEG, ADJUSTABLE (W/NUT)---S
30	Y052721 Whirlpool Nut
31	WP210385 Whirlpool Lock Nut
32	MAY 314499
33	MAY 214354
34	MAY Y306110
35	MAY 33001295
36	SCREW, No.10-24 X 3/4 INCH-----O
37	PART NOT USED
38	WP112432 Whirlpool Nut Assembly
39	W10850756 Whirlpool Screw
40	MAY Y310632
41	PART NOT USED
43	WP3177991 Whirlpool Screw
44	MAY 305168
44	MAY 33001425
