LSE7806ACQ 02 – CABINET
Written by
in

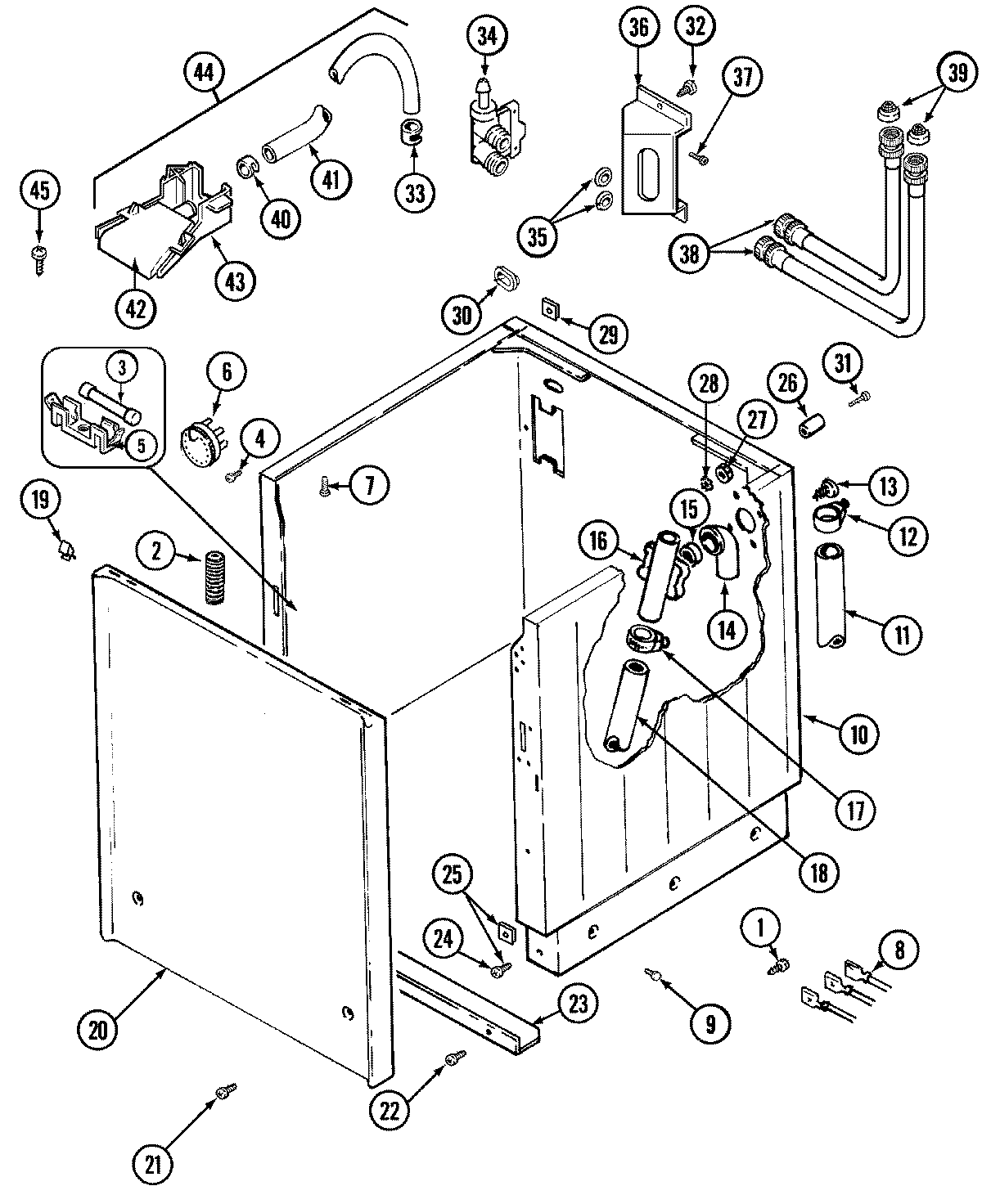

LSE7806ACQ 02 – CABINET
Products
Position
Product
1
WP3177991 Whirlpool Screw
2
MAY 211149
2
MAY Y200832
3
NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
3
WP22001555 Whirlpool Fuse Assembly
4
WP210720 Whirlpool Rivet
5
MAY 207167
6
MAY 208783
6
MAY 22004231
6
MAY 207787
7
MAY 214354
8
MAY 22001585
9
213007 Whirlpool Screw #12
10
MAY 22002648
11
WP22002765 Whirlpool Hose Clip
11
WP22003410 Whirlpool Drain Hose
11
MAY 22002701
11
WP285655 Whirlpool Hose Clamp
11
MAY 22001816
12
MAY 200908
13
MAY 216170
14
MAY 22001191
15
MAY 22001187
16
WP22001186 Whirlpool Injector
17
MAY 22001175
18
MAY 215537
19
MAY 215711
20
MAY 22002651
21
SCREW
22
WP90767 Whirlpool Screw
23
MAY 213846
24
WP27001200 Whirlpool Screw
25
SCREW & FSTNER ASSY (FT. PNL)
26
MAY 215276
27
MAY 310557
28
MAY Y052659
29
MAY 22001009
30
MAY 215950
31
MAY 215277
32
MAY 212276
33
WP596669 Whirlpool Hose Clamp
34
WP22002360 Whirlpool Water Valve
35
MAY Y013783
36
MAY 22002374
37
MAY 22002372
38
WP76314 Whirlpool Fill Hose
39
MAY 200961
40
MAY 22001192
←
