LSE9900ADE 03 – BASE & PUMP (LSE9900ACL,ACW,ADL,ADW)

LSE9900ADE 03 – BASE & PUMP (LSE9900ACL,ACW,ADL,ADW)

Written by

in

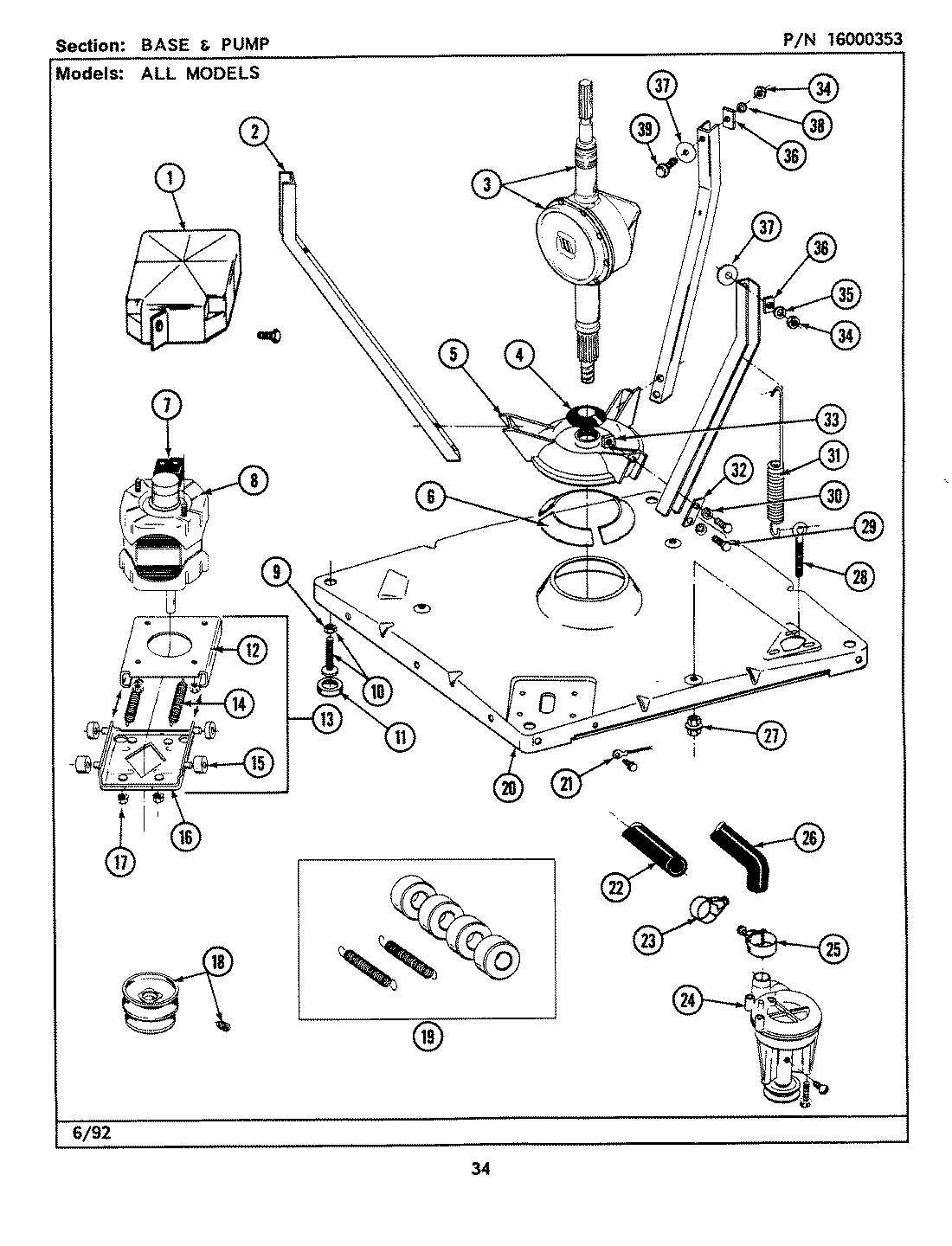

LSE9900ADE 03 – BASE & PUMP (LSE9900ACL,ACW,ADL,ADW)

Products

PositionProduct
1MAY 215098
2MAY 213100
3MAY 206707
4MAY 211028
5MAY 203725
6203956 Whirlpool Damper Pads 3 Pack with Poly
7SWITCH, MOTOR START PROD. NO. 2-1664-4, 2-1664-9, 2-1664-10
72-1664-8 AND 2-5463
72-1664-11 AND 2-5463-1
812002351 Whirlpool Washer Drive Motor and Jumper Kit 1 Speed 1/2 HP
9WP210385 Whirlpool Lock Nut
10LEG, ADJUSTABLE (W/NUT)—S
11WP210684 Whirlpool Dishwasher Leveling Leg Pad
12MAY 214956
13MAY 205999
14202718 Whirlpool Tension Spring
15205000 Whirlpool Motor Spring and Guide Kit
16MAY 205908
17WP3400029 Whirlpool Dishwasher Nut
18MAY 200816
18MAY Y053241
20MAY 203274
21MAY 901220
22WP22001448 Whirlpool Drain Pump Hose
23MAY 200461
24WPY014874 Whirlpool Screw
24MAY Y015408
24MAY 202203
25WP285655 Whirlpool Hose Clamp
26WP213045 Whirlpool Dishwasher Tub to Pump Hose
27WP211949 Whirlpool Nut
28MAY 213120
30MAY 911852
31MAY 213054
32MAY 213073
33MAY Y052785
34MAY Y052734
36MAY 212979
37MAY 211100
38MAY Y054867
39W10175939 Whirlpool Bolt Assembly
39W10175938 Whirlpool Bolt
