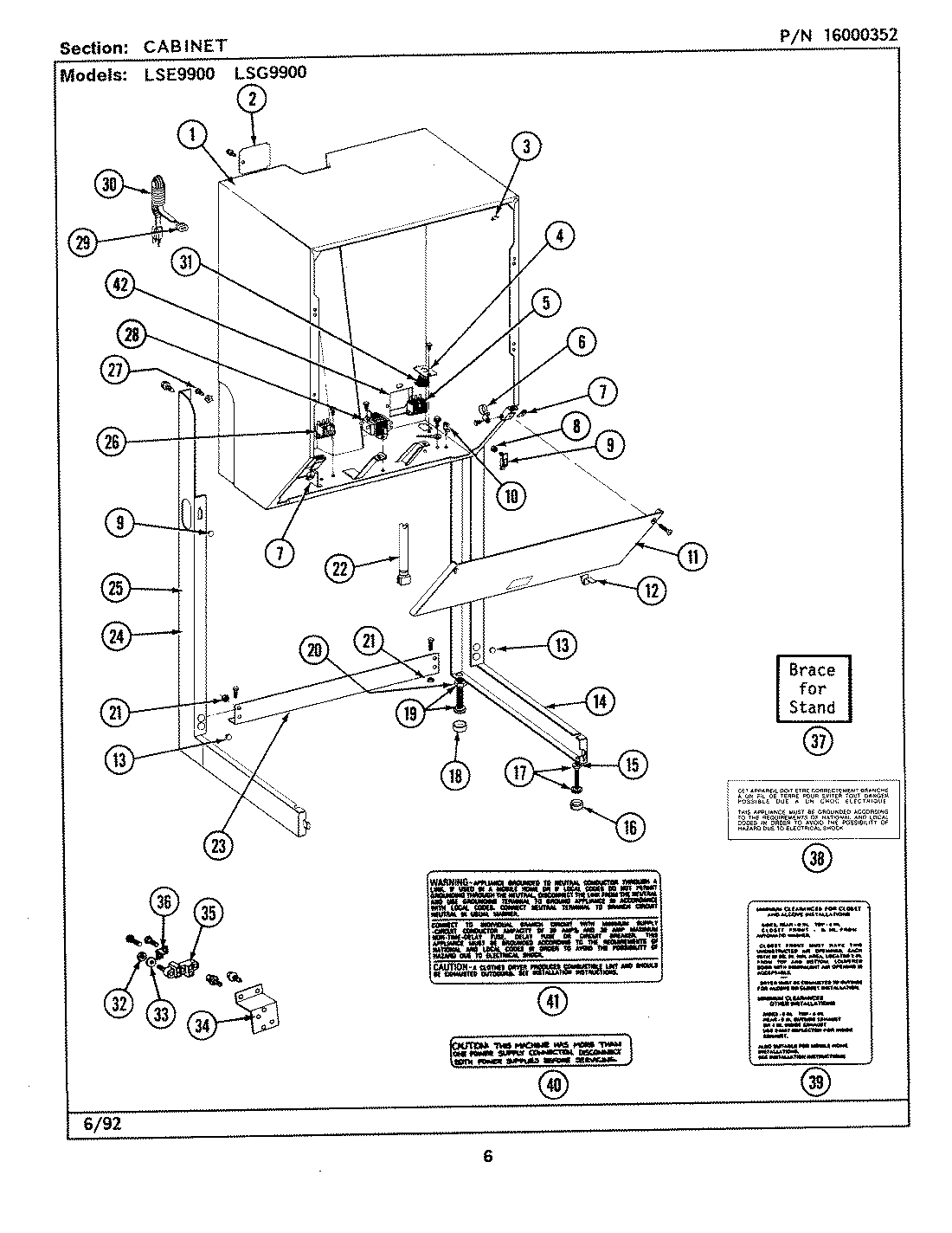

LSE9900ADE 07 – CABINET

Products

Position	Product
1	MAY 308055
2	MAY 314470
3	MAY 312548
4	MAY 314532
5	MAY 306199
6	MAY 212458
7	MAY 215075
8	MAY 214872
9	MAY 314489
10	MAY Y313262
11	MAY 307844
11	MAY 314477
12	MAY 314482
13	MAY 314498
14	MAY 306073
15	WP62739 Whirlpool Nut
16	WPY314137 Whirlpool Rubber Foot
17	W10176519 Whirlpool Leveling Feet
18	WP210684 Whirlpool Dishwasher Leveling Leg Pad
19	LEG, ADJUSTABLE (W/NUT)—S
20	WP210385 Whirlpool Lock Nut
21	Y052721 Whirlpool Nut
22	MAY 306717
23	MAY 214354
23	MAY 314499
24	MAY 306074
25	MAY Y306110
25	MAY 314663
26	WP3177991 Whirlpool Screw
26	MAY 901961
27	MAY 303846
28	MAY 306062
28	MAY 212276
29	MAY 314507
30	MAY 305168
31	MAY 314522
31	WPW10139210 Whirlpool Screw
32	WP112432 Whirlpool Nut Assembly
33	WPY311270 Whirlpool Washer TE
34	MAY Y310632
34	PART NOT USED
35	PART NOT USED
35	SCREW, No.10-24 X 3/4 INCH—–O
37	MAY 306128
38	INSTRUCTION LABEL
39	MAY 314486
40	MAY 314609
41	MAY 314505
42	PART NOT USED
43	MAY Y313561
43	MAY 315275
