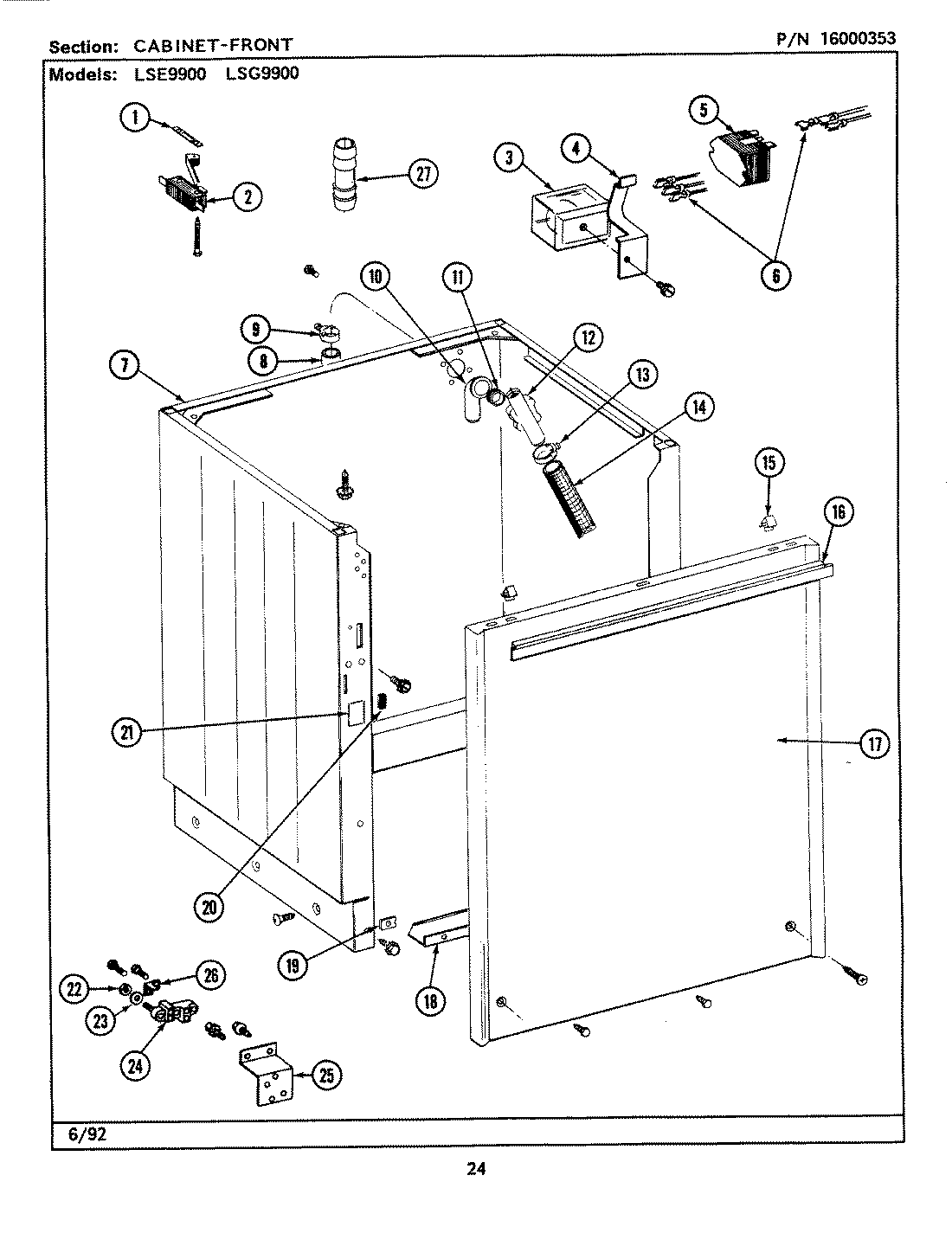

LSE9900ADL 07 – CABINET-FRT (LSE9900ACL,ACW,ADL,ADW)

Products

PositionProduct
1MAY 210866
2MAY 213501
2MAY 202476
3MAY 206421
4SCREW, BUSHINGS
4SPRING CLIP
5MAY 901961
6MAY 206423
7213007 Whirlpool Screw #12
7WP27001200 Whirlpool Screw
7MAY 207207L
8MAY Y059149
8MAY 216017
9MAY 200461
9MAY 200908
10WPW10116738 Whirlpool Elbow Connector
11WP214765 Whirlpool Gasket
12206638 Whirlpool Break Siphon Connector Kit
12WPY014874 Whirlpool Screw
13WP285655 Whirlpool Hose Clamp
14WP22001448 Whirlpool Drain Pump Hose
15MAY 215711
16MAY 215266
17MAY 207205L
17WP22001496 Whirlpool Screw
18MAY 213846
18WP90767 Whirlpool Screw
19MAY 213280
20MAY 214376
21MAY 314609
22WP112432 Whirlpool Nut Assembly
23WPY311270 Whirlpool Washer TE
24PART NOT USED
25PART NOT USED
26PART NOT USED
27MAY Y216015
