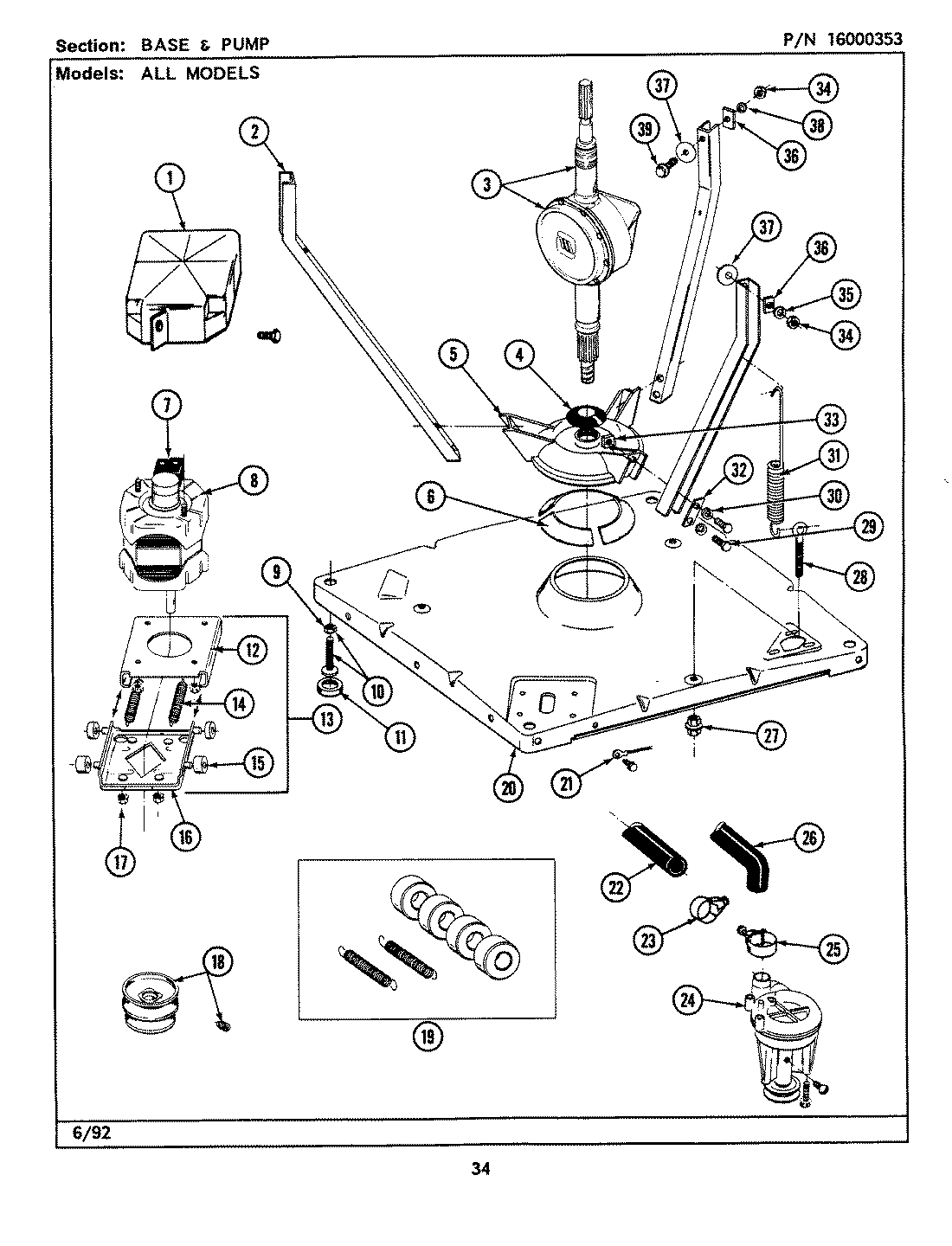

LSE9900AEL 03 – BASE & PUMP (LSE9900ACL,ACW,ADL,ADW)

Products

Position	Product
1	MAY 215098
2	MAY 213100
3	MAY 206707
4	MAY 211028
5	MAY 203725
6	203956 Whirlpool Damper Pads 3 Pack with Poly
7	SWITCH, MOTOR START PROD. NO. 2-1664-4, 2-1664-9, 2-1664-10
7	2-1664-8 AND 2-5463
7	2-1664-11 AND 2-5463-1
8	12002351 Whirlpool Washer Drive Motor and Jumper Kit 1 Speed 1/2 HP
9	WP210385 Whirlpool Lock Nut
10	LEG, ADJUSTABLE (W/NUT)—S
11	WP210684 Whirlpool Dishwasher Leveling Leg Pad
12	MAY 214956
13	MAY 205999
14	202718 Whirlpool Tension Spring
15	205000 Whirlpool Motor Spring and Guide Kit
16	MAY 205908
17	WP3400029 Whirlpool Dishwasher Nut
18	MAY 200816
18	MAY Y053241
20	MAY 203274
21	MAY 901220
22	WP22001448 Whirlpool Drain Pump Hose
23	MAY 200461
24	WPY014874 Whirlpool Screw
24	MAY Y015408
24	MAY 202203
25	WP285655 Whirlpool Hose Clamp
26	WP213045 Whirlpool Dishwasher Tub to Pump Hose
27	WP211949 Whirlpool Nut
28	MAY 213120
30	MAY 911852
31	MAY 213054
32	MAY 213073
33	MAY Y052785
34	MAY Y052734
36	MAY 212979
37	MAY 211100
38	MAY Y054867
39	W10175939 Whirlpool Bolt Assembly
39	W10175938 Whirlpool Bolt
