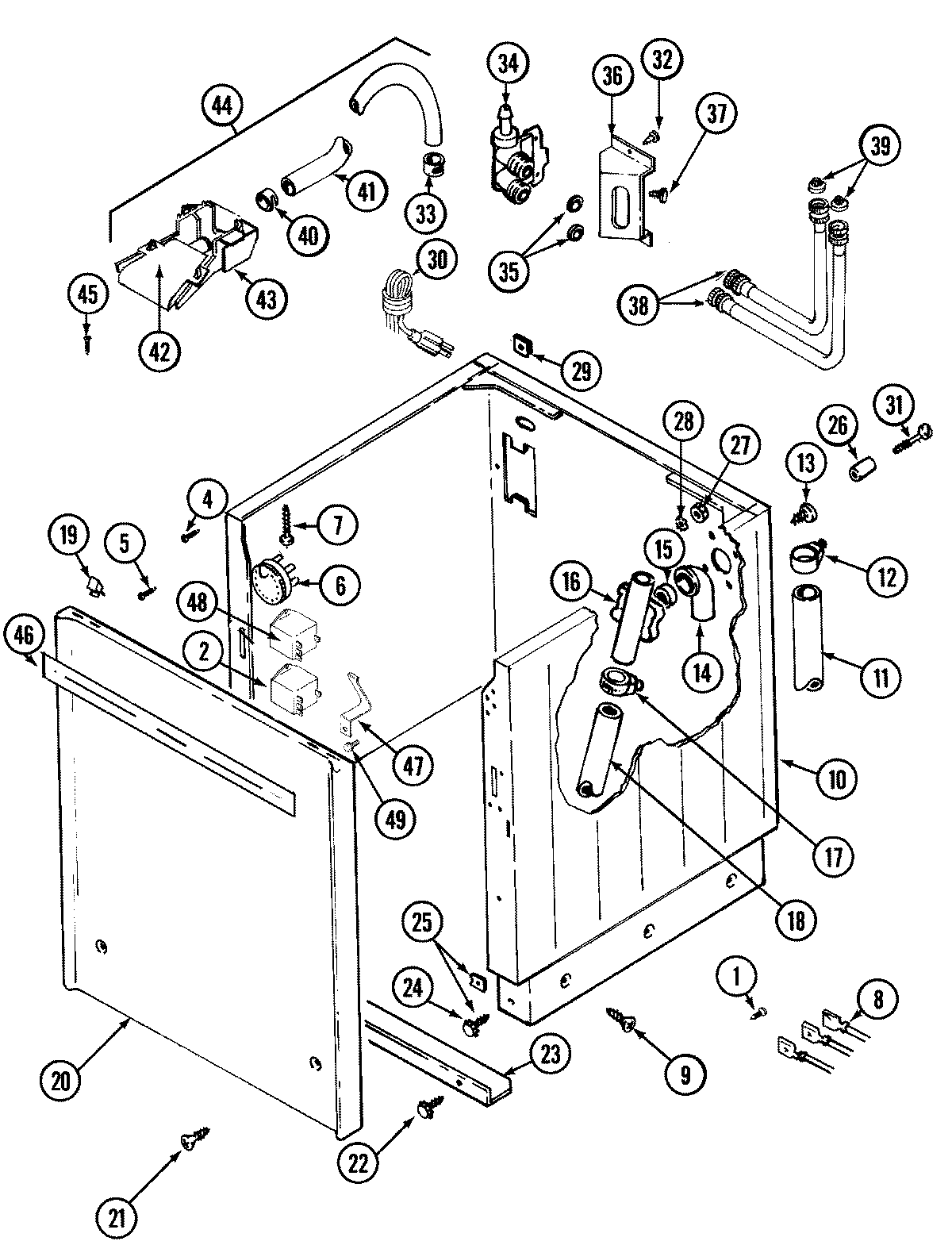

LSE9904ACM 02 – CABINET (LSE9904ACM)

Products

Position	Product
2	MAY 206421
3	MAY Y310376
4	MAY 33001324
5	WP3177991 Whirlpool Screw
6	WP206418 Whirlpool Water Lever
7	MAY 214354
8	MAY 22001587
8	MAY 22001430
9	213007 Whirlpool Screw #12
10	MAY 22001067
11	MAY 216017
11	MAY Y059149
12	MAY 200908
13	WPY014874 Whirlpool Screw
14	WPW10116738 Whirlpool Elbow Connector
15	WP214765 Whirlpool Gasket
16	206638 Whirlpool Break Siphon Connector Kit
17	WP285655 Whirlpool Hose Clamp
18	WP22001448 Whirlpool Drain Pump Hose
19	MAY 215711
20	MAY 207205L
20	MAY 22001144
20	MAY 22001143
21	WP22001496 Whirlpool Screw
21	MAY 22001899
22	WP90767 Whirlpool Screw
23	MAY 213846
24	WP27001200 Whirlpool Screw
25	SCREW & FSTNER ASSY (FT. PNL)
26	MAY 215276
27	MAY 310557
28	MAY Y052659
29	MAY 22001009
30	MAY 208784
31	MAY 215277
32	MAY 212276
33	WP596669 Whirlpool Hose Clamp
34	MAY 22001277
35	MAY Y013783
36	MAY 215264
37	MAY Y313561
38	WP76314 Whirlpool Fill Hose
39	MAY 200961
40	MAY 216170
41	MAY 22001191
42	MAY 22001187
43	WP22001186 Whirlpool Injector
44	MAY 22001175
45	MAY 215537
46	MAY 215266
47	SPRING CLIP
48	MAY 901961
49	SCREW, BUSHINGS
50	MAY 22001192
