LSFXC2496D 0

LSFXC2496D 0

Written by

in

LSFXC2496D 0

Products

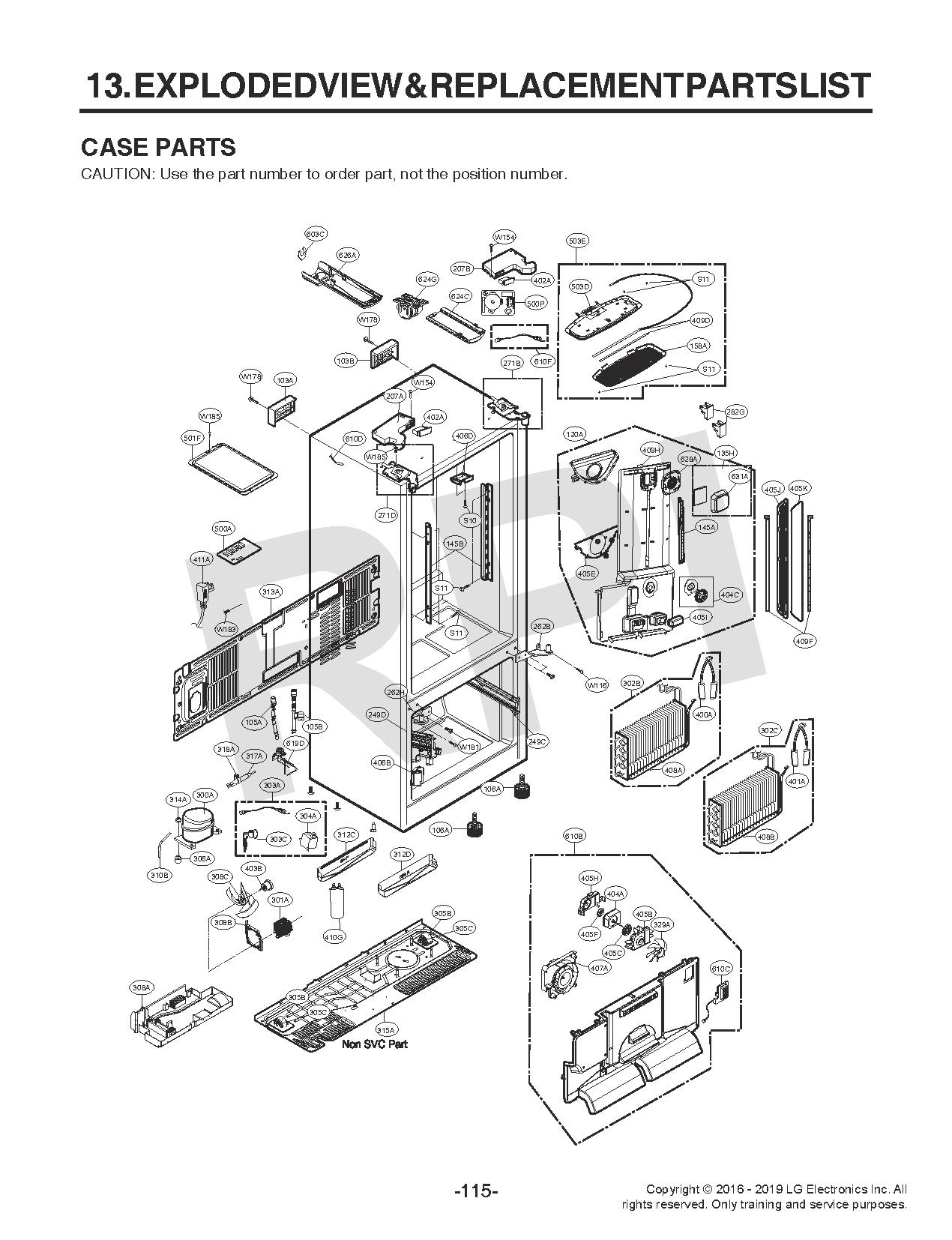

PositionProduct
103B3650JA2061W LG Rear Handle
103A3650JA2113P LG Rear Handle
103A3650JA2061X LG Rear Handle
103B3650JA2113N LG Refrigerator Rear Handle
105ATUBE ASSY-DRAIN
105B5251JA2006B LG Drain Tube Assembly
106AAFC72909201 LG Leg Assembly Adjust
120AADJ73252245 LG Assembly Multi Duct
135HADQ73853824 LG Refrigerator Water Filter Assembly
145BMEG62685801 LG Refrigerator Shelf Holder
145AMEG62685901 LG Refrigerator Shelf Holder
158AMCK66544101 LG Refrigerator Lamp Cover
207AMCK68187502 LG Refrigerator Hinge Cover Assembly
207BMCK68412501 LG Hinge Cover
207BMCK68412502 LG Hinge Cover
207ACover,Hinge
249CAEC73317806 LG Refrigerator Rail Guide Assembly
249DMEG62900503 LG Refrigerator Rail Holder
262HAEH73816904 LG Hinge Assembly Center
262BAEH73816906 LG Hinge Center Assembly
262HAEH73816908 LG Hinge Center Assembly
262BAEH73816902 LG Center Hinge Assembly
271DAEH60614101 LG Upper Hinge Assembly
271BAEH60614106 LG Upper Hinge Assembly
282GMBL65039901 LG Refrigerator Duct Cap
300ATCA38151706 LG Compressor Assembly Set
301AACG73645004 LG Condenser Wire Assembly
302CADL73341411 LG Evaporator Assembly
302BADL73981017 LG Evaporator Assembly
303COVERLOAD PROTECT
303AEBG63205831 LG Thermistor Assembly PTC
303DEAD64168631 LG Refrigerator Harness Assembly
304AMCK70052506 LG Refrigerator PTC Cover
305BMHA62513601 LG Refrigerator Roller
305C1PZZJA3013B LG Common Pin
306AMCQ66921101 LG Refrigerator Compressor Damper
308CADP73273401 LG Fan Assembly
308AMJS62233503 LG Drip Tray
308BMEA42772903 LG Fan Guide
310B4J00977P LG Compressor Sealing Pipe
312C3391JJ2013J LG Drain Tray Assembly
312D3391JJ2013H LG Refrigerator Drain Tray Assembly
313AACQ86284803 LG Refrigerator Machinery Cover Assembly
314A4620JA3015A LG Refrigerator Compressor Stopper
315AAAN77088901 LG Compressor Base Assembly
317AADH73150208 LG Dryer Assembly
318A4930JA3034A LG Dryer Holder
329A5901JA1021A LG Refrigerator Fan Blade
400ACONTROLLER ASSY
401ACONTROLLER ASSY
402AEBF61314813 LG Refrigerator Magnet Switch
403BEAU63103301 LG DC Motor
404CEAU64824801 LG DC Motor Assembly
404AMOTOR-DC
405C5040JA2009B LG Refrigerator Damper Support Motor Rubber Grommet
405KMCK66584302 LG Lamp Cover
405EMHN62542001 LG Refrigerator Shroud
405HMCK61880502 LG Motor Cover
405IMCK61881401 LG Lamp Cover
405F5040JA2004B LG Refrigerator Motor Rubber Grommet Support
405BMAZ61845401 LG Motor Bracket
405JMCK66584301 LG Lamp Cover
406DMEG63261302 LG Refrigerator Door Holder
406BEBF61314816 LG Refrigerator Magnet Switch
407AABA72913423 LG Motor Assembly Bracket
408AMEE62225112 LG Heater Sheath
408BMEE62105201 LG Refrigerator Sheath Heater
409DEAV62052301 LG LED Assembly
409HEAV61572001 LG LED Assembly
409FEAV61916704 LG LED Assembly
410GEAE32501010 LG Electric Capacitor
410GEAE32501017 LG Refrigerator Capacitor
411AEAD62329151 LG Refrigerator Power Cord Assembly
500PEBR64730408 LG Power Control PCB Assembly
500ACSP30021025 LG Refrigerator Service Circuit Board Assembly
500AEBR83806915 LG Refrigerator Main PCB Assembly
501F3551JA2144M LG PCB Cover Assembly
503DMBN62347601 LG Refrigerator Case Lamp
503EACQ85449501 LG Refrigerator Lamp Cover Assembly
603C4004JA3002A LG Refrigerator Ice Maker Water Supply Tubing Clip
610CACQ73244001 COVER ASSY-SENSOR
610D6500JB2001B LG Refrigerator Humidity Sensor Thermistor
610BAEB72913944 LG Fan Grille Assembly
610FEBR71326804 LG Printed Circuit Board Assembly
619DLGE AJU7387
