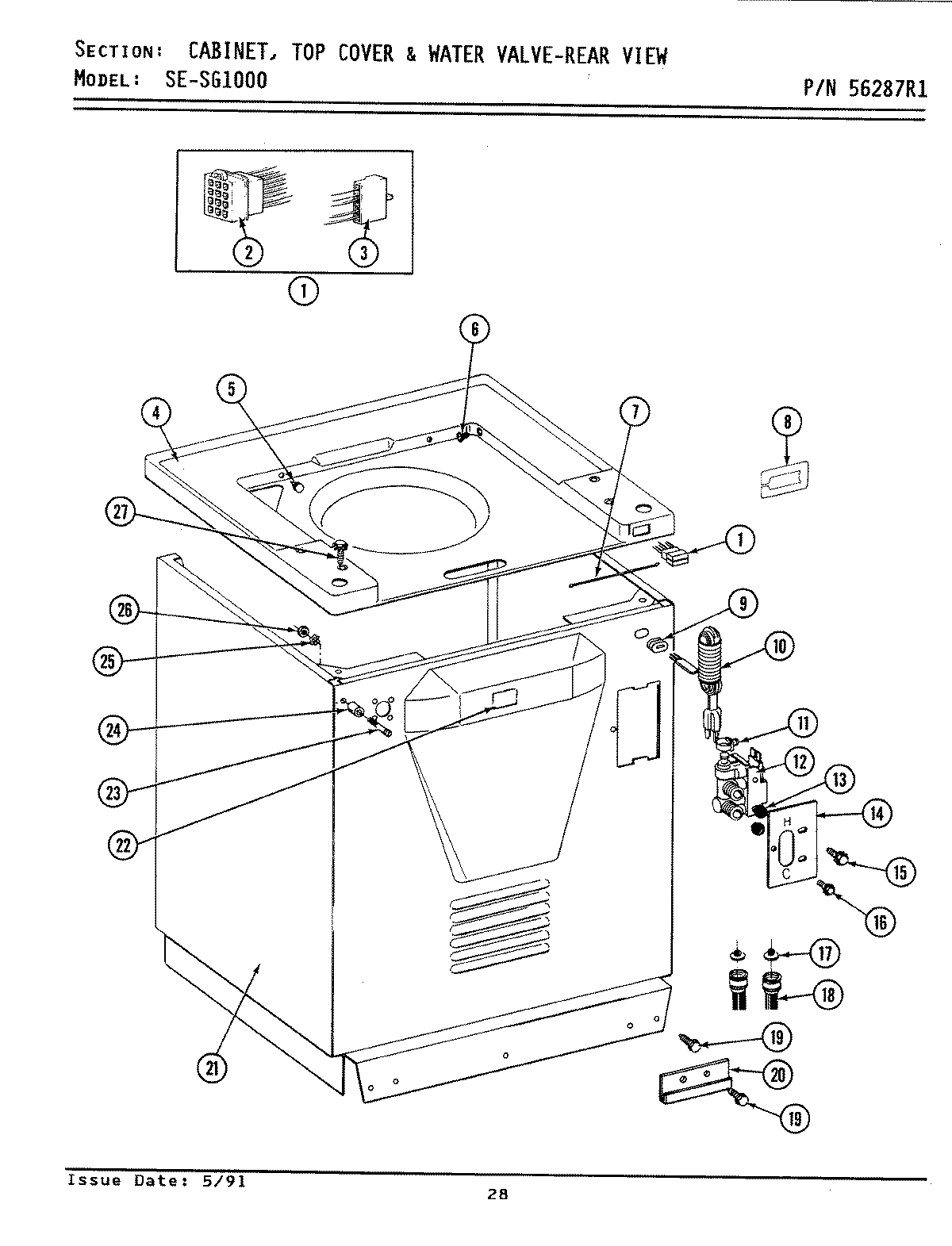

LSG1000 05 – CABINET, TOP COVER & WATER VALVE (REAR)

LSG1000 05 – CABINET, TOP COVER & WATER VALVE (REAR)

Written by

in

LSG1000 05 – CABINET, TOP COVER & WATER VALVE (REAR)

Products

PositionProduct
1MAY Y312658
1MAY Y312953
1MAY 213076
1MAY 912080
1MAY 206422
1MAY 912016
1MAY 206849
1MAY 912083
2MAY 215539
2MAY 213087
3MAY 206420
4MAY 206599L
4MAY 206636L
5MAY 215247
6MAY 211500
6MAY 053759
7MAY 215274
8MAY 215437
9GROMMET
10MAY Y313559
10MAY Y310376
10MAY 206424
11WP596669 Whirlpool Hose Clamp
12WP206413 Whirlpool Water Valve
13WP96160 Whirlpool Washer Inlet Valve Screen
14MAY 215264
15MAY Y313561
16MAY 212276
17MAY 200961
18MAY Y013783
18WP76314 Whirlpool Fill Hose
19WPW10346892 Whirlpool Screw
20MAY 215278
21MAY 207207L
21MAY 206411L
22MAY 214743
23MAY 215277
24MAY 215276
25MAY 310557
26MAY Y052655
27MAY 214354
